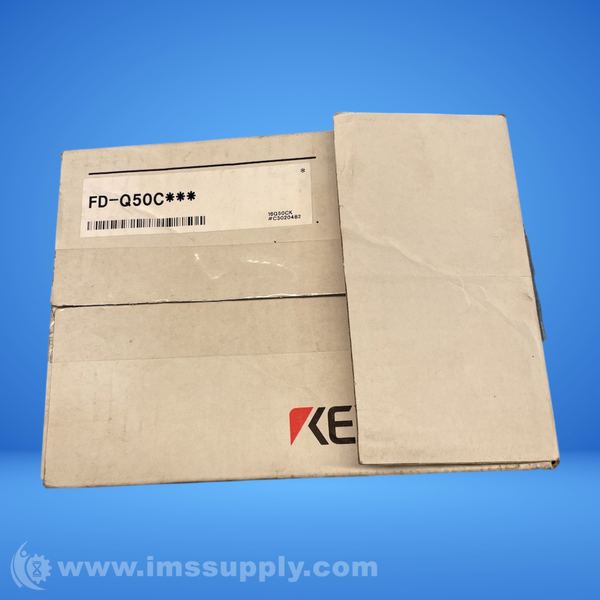

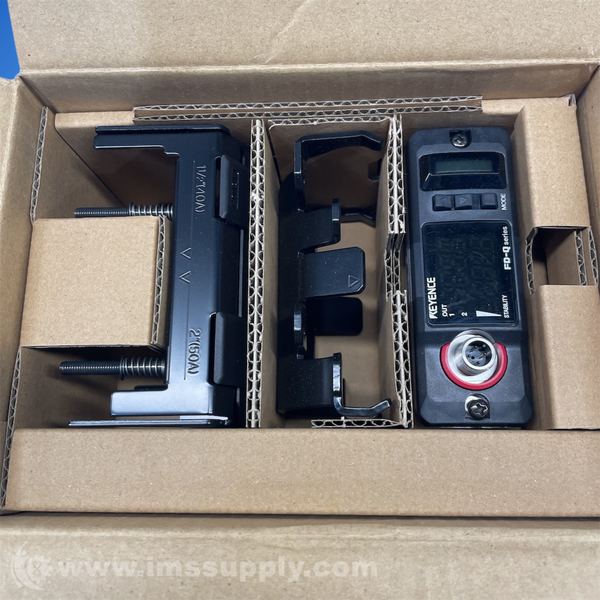

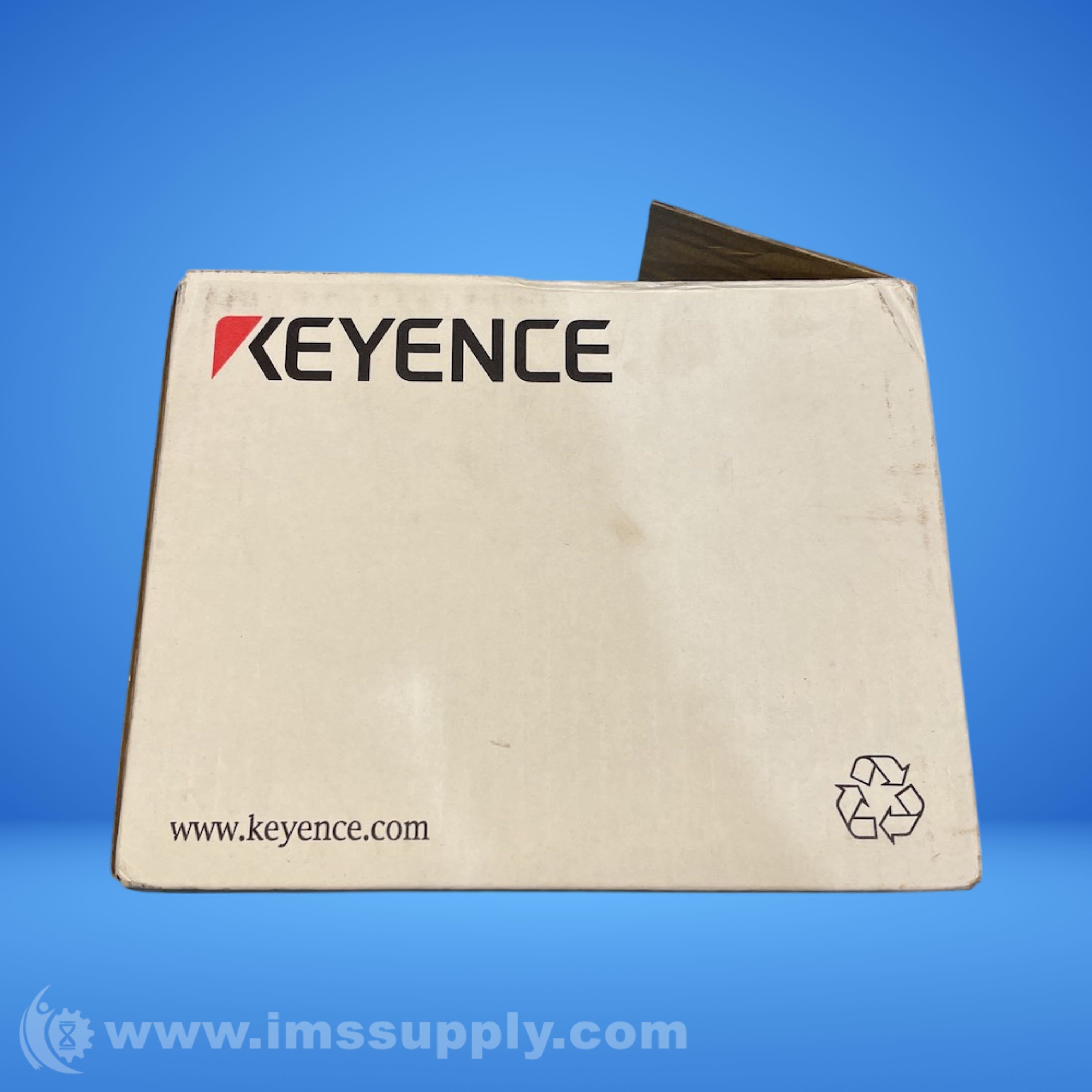

KEYENCE FD-Q50C CLAMP-ON FLOW SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FD-Q50C***
IMS Product Code: 2148653
Packaging: Sold Individually
Description:
Keyence FD-Q50C Clamp-on Flow Sensor
Clamp-on Flow Sensor
Specifications
- Model: FD-Q50C
- Supported pipe diameter: 1 1/2" (40 A), ø44 to ø52 (mm), 2" (50 A), ø52 to ø64 (mm)
- Supported pipe materials: Metal pipe/Resin pipe
- Supported fluids: Various liquid [i.e. water (including DI), oils, chemicals, etc.]
- Supported fluid temperature: 0 to 85°C 32 to 185°F (No freezing on the pipe surface)
- Maximum rated flow: 1 1/2" (40 A): 400 L/min, 105.7 G/min, 2" (50 A): 500 L/min, 132.1 G/min
- Zero cut flow rate: 25 L/min (Default)
- Display method: Status indicator, output indicator, dual row display with 4-digit, 7 segment LED, stability level indicator
- Display update cycle: Approx. 3 Hz
- Display resolution: 0.1/ 1 (Default :1) (L/min)
- Response time: 0.5 s / 1.0 s / 2.5 s / 5 s / 10 s / 30 s / 60 s
- Protection circuit: Power supply reverse connection protection, power supply surge protection, each output short-circuit protection, each output surge protection
- Repeatability: 0.5 s : ±2.0%, 1 s:±1.5%, 2.5 s : ±1.0%, 5 s : ±0.5%, 10 s : ±0.35%, 30 s : ±0.2%, 60 s : ±0.15% (/F.S.(Specific to selected response time))
- Hysteresis: Variable
- Integrated flow unit display: 1/ 10/ 100/ 1000/ 10000 (Default : 1) (L)
- Integrated flow data storage cycle: Save to memory every 10 seconds
- Memory backup: EEPROM (Data storage length: 10 years or longer, Data read/write frequency: 1 million times or more)
- Power I/O connector: M12 4-pin connector
- Output (ch.1/ch.2): Control output/ Pulse output/ Error output (Selectable, Default : ch.1 control output/ ch.2 not used), NPN/PNP setting switchable, open collector output 30 V or less, max. 100 mA/ch., residual voltage 2.5 V or less
- Analog output (ch.2): 4 to 20 mA / 0 to 20 mA (Selectable, Default: not used), load resistance 500 ? or less
- External input (ch.2): Integrated flow reset input/ Flow rate zero input/ Origin adjustment input (Selectable, Default: not used), short-circuit current 1.5 mA or less, input time 20 ms or more
- Power voltage: 20 to 30 VDC , ripple (P-P) 10% max, Class2/LPS
- Current consumption: 130 mA or less (Load current excluded)
- Enclosure rating: IP65/IP67 (IEC60529)
- Ambient temperature: -10 to +60 °C 14 to 140 °F (No freezing)
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
- Shock resistance: 100 m/s2, 16 ms pulse, 1,000 times in each of the X, Y, and Z directions
- Sensor main unit: PPS/PES/PBT/SUS303/SUS304/SUSXM7
- Sensor surface: Rubber
- Mounting bracket: SUS304/PA/POM/SUSXM7
- Weight: Approx. 640 g (including mounting bracket)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
