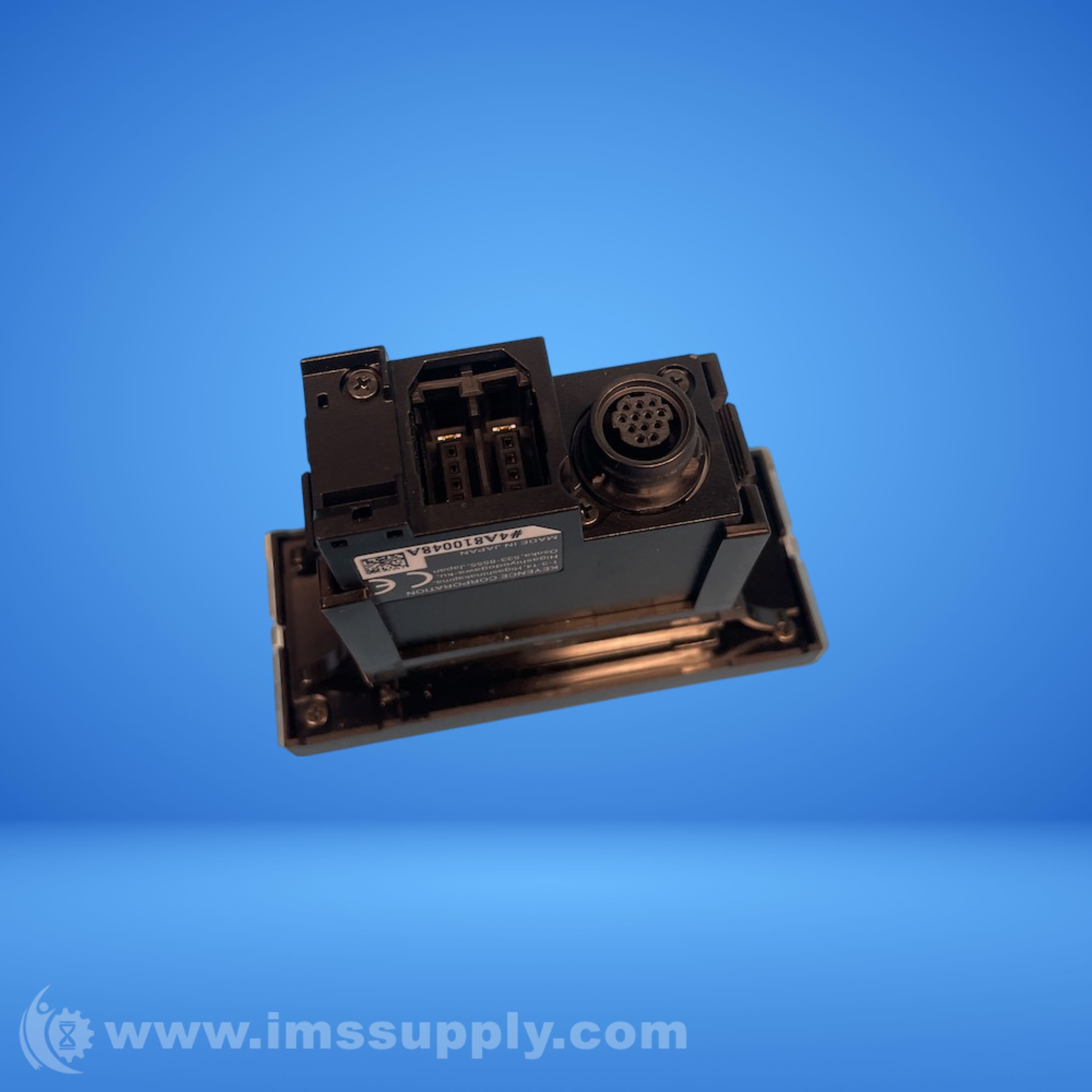

KEYENCE FD-XA5E CLAMP-ON FLOW SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FD-XA5E
IMS Product Code: 2145672
Packaging: Sold Individually
Description:

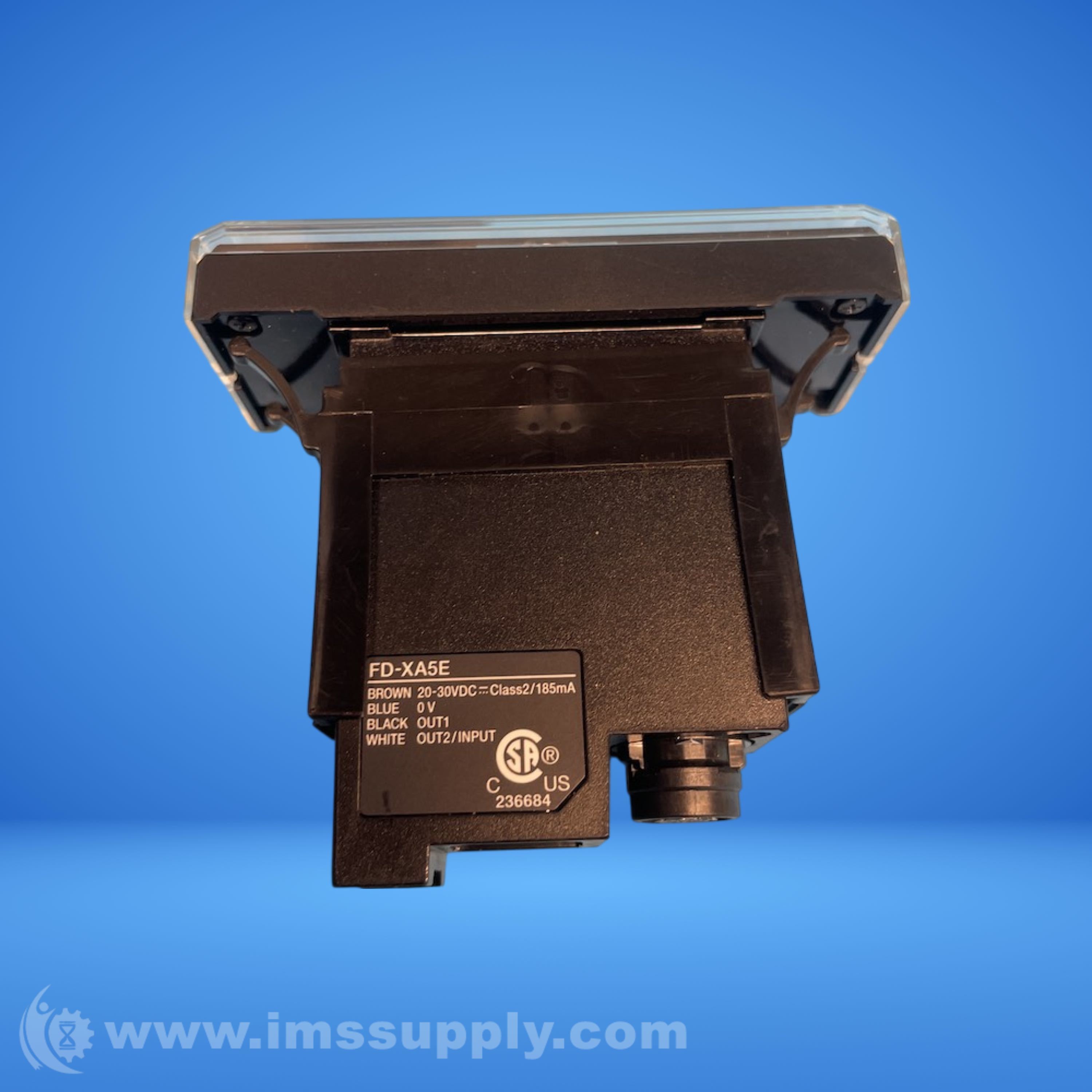

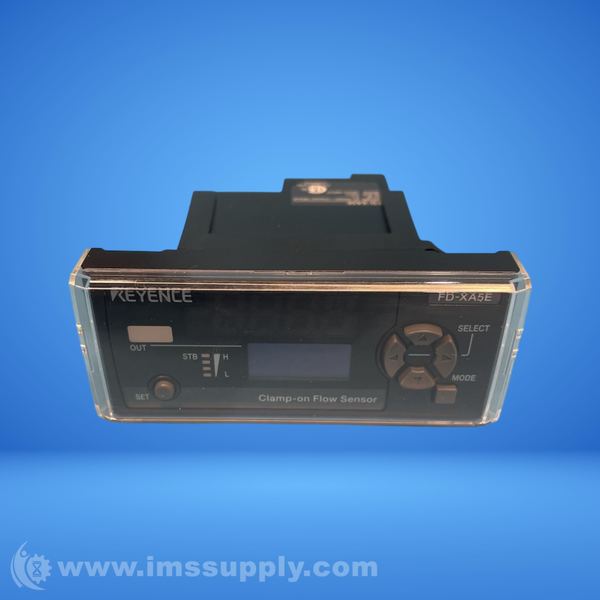

Keyence FD-XA5E Clamp-On Flow Sensor
Clamp-on flow sensor for detecting micro flow rates from outside the pipe.
Specifications
- Series: FD-X
- Type: Clamp-On Micro Flow Sensor
- Enclosure Rating: IP65/IP67 (IEC60529), IP68G (JIS C0920)
- Material: PPS/PPSU
- Display Method: Output indicator, 4-digit 7 segment display, OLED, Stability level display
- Response Time: 50 ms/100 ms/500 ms (selectable, default: 500 ms)
- Power Voltage: 20 to 30 VDC including 10 % ripple (P-P), Class 2
- Current Consumption: 185 mA or lower (including the sensor head, excluding the load current)
- Ambient Temperature: -10 to +50 degrees C (No freezing)
- Ambient Humidity: 35 % to 85 %RH (No condensation)
- Shock Resistance: 100 m/s2 (approx. 10 G) 16 ms pulse, 1000 times each for X,Y,Z direction
- Protection Circuit: Power supply reverse connection protection, power surge protection, output short circuit protection, output surge protection
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
