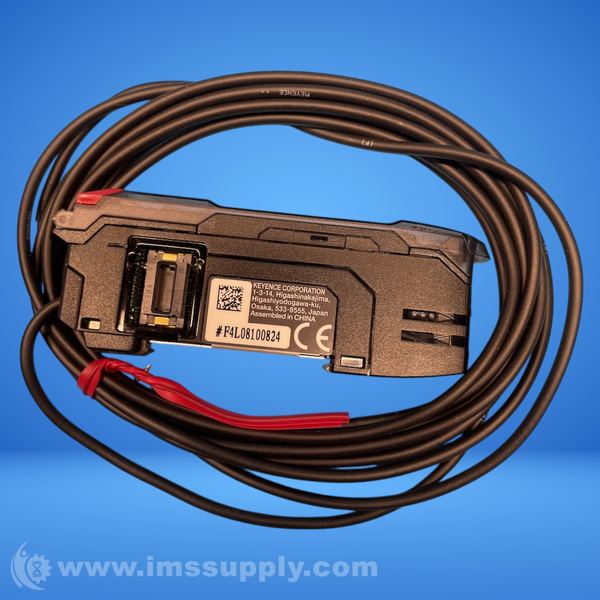

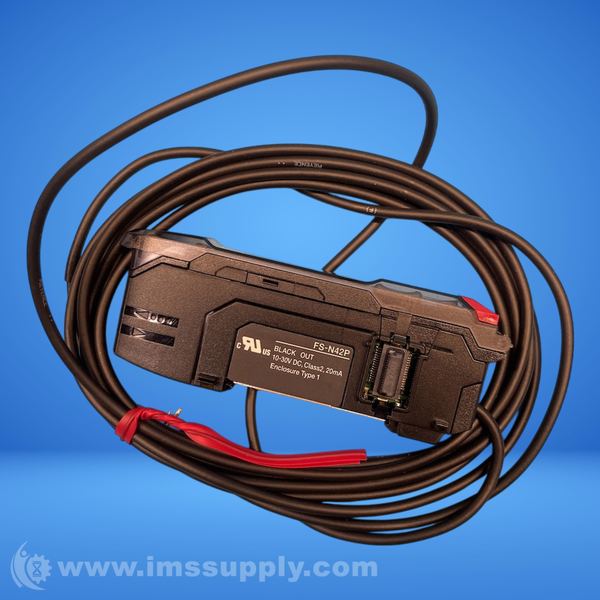

KEYENCE FS-N42P FIBER OPTIC AMPLIFIER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FS-N42P
IMS Product Code: 2145783
Packaging: Sold Individually
Description:
KEYENCE FS-N42P Fiber Optic Amplifier
Cable type expansion unit for fiber optic sensors with PNP output and red four-element LED light source.
Specifications
- Type: Cable
- Output: PNP
- Main unit/expansion unit: Expansion unit
- Response time: 23 uss (S-HSPD) / 50 µs (HSPD) / 250 µs (FINE) / 500 µs (TURBO) / 1 ms (SUPER) / 4 ms (ULTRA) / 16 ms (MEGA) / 64 ms (TERA)
- Number of control outputs: 1
- Light source LED: Red, four-element LED (wavelength: 660 nm)
- Control output: Open-collector, 30 V or less 100 mA or less per output, 100 mA or less total for 2 outputs (when used as a solitary unit) / 20 mA or less (when used as an expansion unit)
- Residual voltage: 1.6 V or less (output current: 10 mA or less) / 2.2 V or less (output current: 10 to 100 mA)
- External input: Input time: 2 ms (ON) / 20 ms (OFF) or longer
- Unit expansion: Up to 16 units (17 units connected in total including the main unit)
- Power voltage: 10 to 30 VDC (including 10 % ripple (P-P) or less)
- Power consumption: During normal operation: 910 mW or less (36 mA or less at 24 V/65 mA or less at 12 V), ECO ON: 840 mW or less (33 mA or less at 24 V/60 mA or less at 12 V), ECO FULL: 750 mW or less (30 mA or less at 24 V/52 mA or less at 12 V)
- Ambient light: Incandescent lamp: 20,000 lx or less, sunlight: 30,000 lx or less
- Ambient temperature: -20 °C to +55 °C (no freezing)
- Vibration resistance: 10 to 55 Hz; double amplitude 1.5 mm; 2 hours each for X, Y, and Z axes
- Shock resistance: 500 m/s2; 3 times each for X, Y, and Z axes
- Case material: Main unit and cover: polycarbonate
- Weight: Approx. 48 g

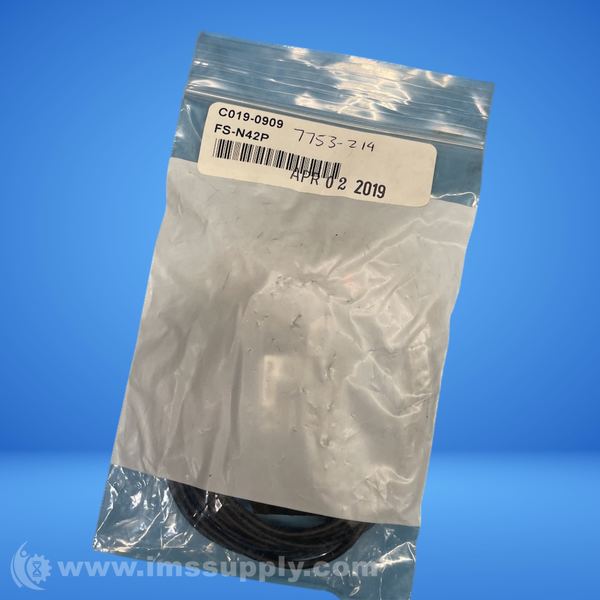

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
