KEYENCE FS-V1 FIBER AMPLIFIER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FS-V1
IMS Product Code: 1861050
Packaging: Sold Individually
Description:

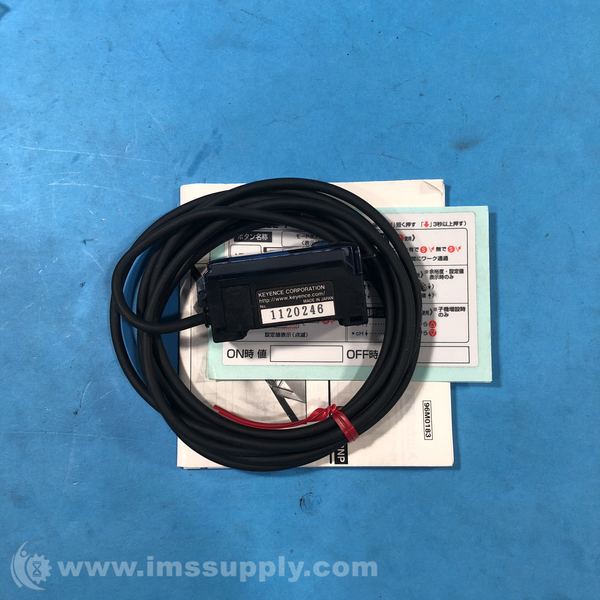

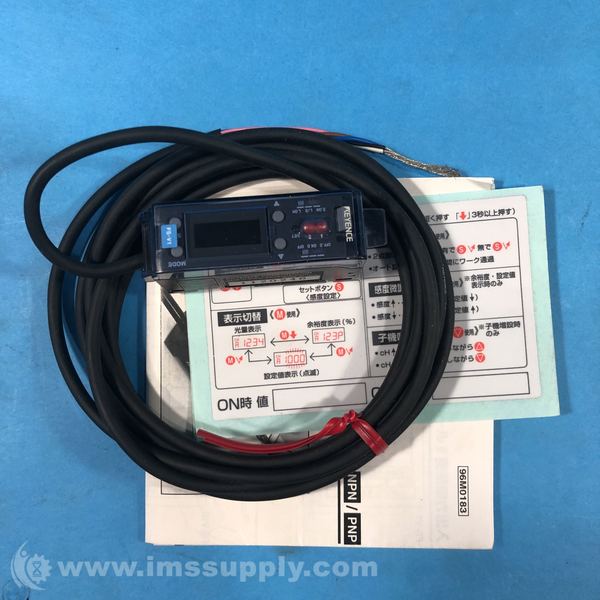

Keyence FS-V1 Fiber Amplifier
Manual-Calibration Fiberoptic Sensor
Specifications
- Type: Main unit
- Output: NPN
- Light source: Red LED
- Response time: 250 �s
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Display indicator (Two): Red LED, Received light display: LCD (Two color display: Red and green), Calibration indicator: Orange LED
- Timer function: ON-delay: 40 ms/OFf-delay: 40 ms/ Timer OFF (switch-selectable)
- Control output: NPN open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
- Protection circuit: Reversed polarity protection, over-current protection, surge absorber
- Unit expansion: Up to 16 expansion units can be connected (a total of 17 units)
- Mutual interference suppression: 4
- Power voltage: 12 to 24 VDC �10 %, Ripple (P-P) 10 % or less
- Current consumption: 50 mA or less
- Ambient light: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
- Ambient temperature: -10 to +55 degrees C
- Relative humidity: 35 to 85 % RH
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions
- Case material: Polycarbonate
New - Missing Box (Special):
Probe attached to sensor.
Availability: 1 In Stock
