KEYENCE FS2-62 FIBER AMPLIFIER, CABLE TYPE
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FS2-62
IMS Product Code: 1801832
Packaging: Sold Individually
Description:

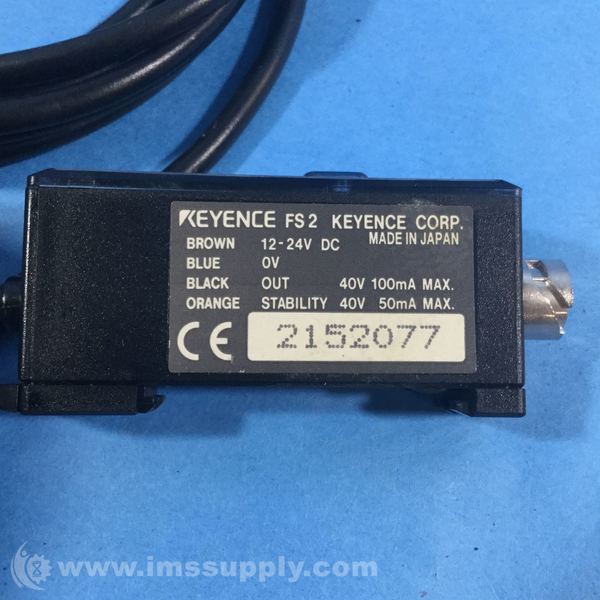

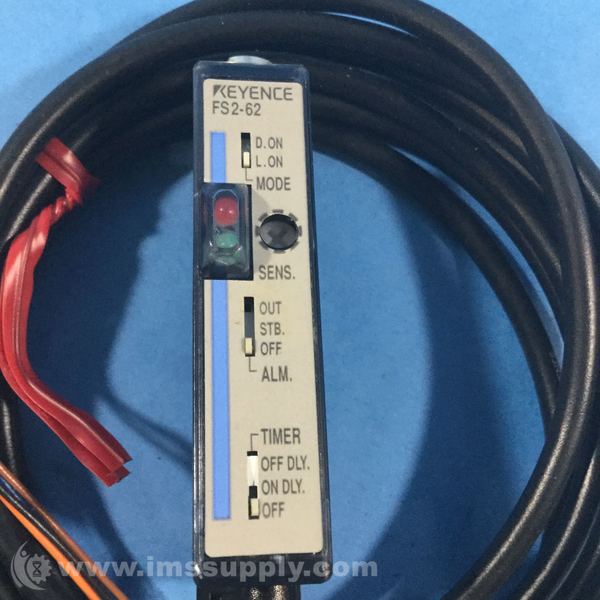

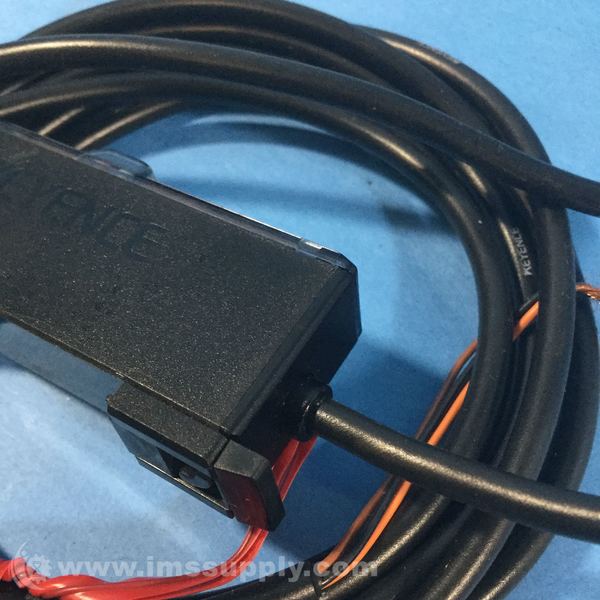

Keyence FS2-62 Fiber Amplifier, Cable Type
Specifications:
- Model: FS2-62
- Type: Trimmer：Ultra-long detecting distance
- Light source: Red LED
- Sensitivity adjustment: 8-turn trimmer
- Response time: 500 µs
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Output: Red LED
- Stable operation: Green LED
- Timer function: ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)
- Buzzer mode: Buzzer ON when control output turns ON/Buzzer ON when alarm output turns ON/Buzzer OFF (switch-selectable)
- Output: NPN output
- Control output: NPN open-collector 100 mA max. (40 V max.), Residual voltage 1 V max.
- Stability output: NPN open-collector 50 mA max. (40 V max.), Residual voltage 1 V max.
- Protection circuit: Reversed polarity protection, Overcurrent protection, Surge absorber
- Rating:
- Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Current consumption: 35 mA or less
- Environmental resistance
- Ambient light
- Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
- Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing)
- Relative humidity 35 to 85 % RH (No condensation)
- Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
- Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions
- Material: Polycarbonate
- Weight: Approx. 61 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 11 hours and 25 minutes.
