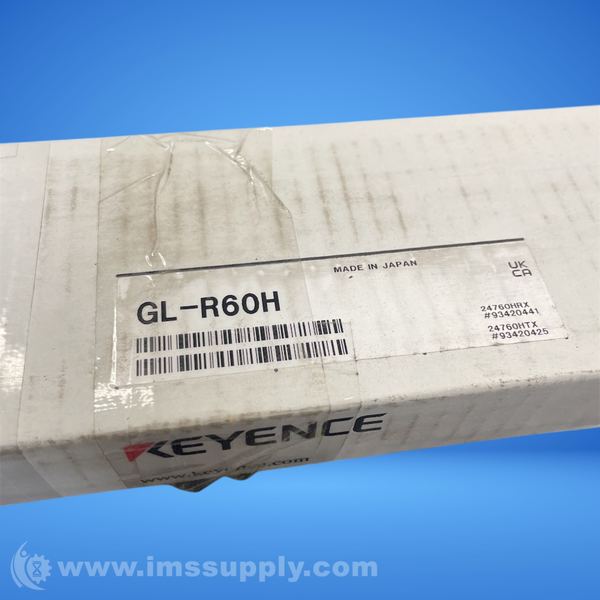

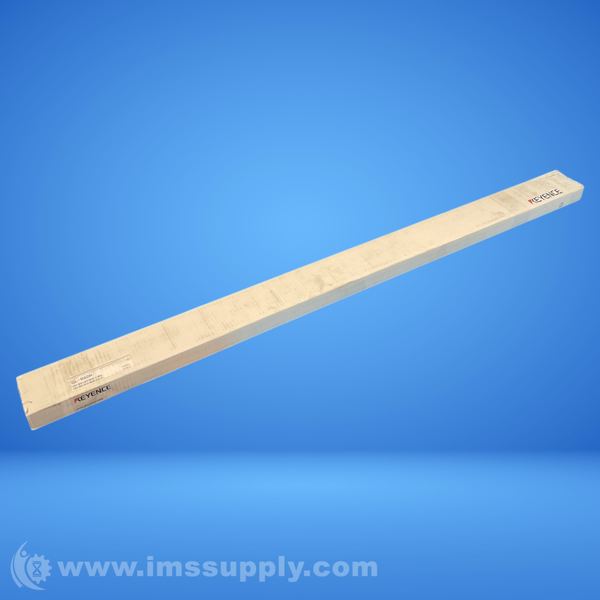

KEYENCE GL-R60H SAFETY LIGHT CURTAIN
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: GL-R60H
IMS Product Code: 2145515
Packaging: Sold Individually
Description:
Keyence GL-R60H Safety Light Curtain
Hand-protection type safety light curtain with 60 optical axes, 25 mm detection capability, and 0.2 to 15 m detection distance.
Specifications
- Brand: Keyence
- Model: GL-R60H
- Type: Light Curtain Main Unit Set Hand-Protection Type
- Detection Capability: ø25 mm
- Beam Axis Spacing/Lens Diameter: 20 mm / ø5
- Detecting Distance: 0.2 to 15 m
- Max. load current: 500 mA*4
- Leakage current: Max. 200 µA
- Output: 2 transistor outputs. (PNP or NPN is determined by the cable type)
- Residual voltage (during ON): Max. 2.5 V (with a cable length of 5 m)
- OFF state voltage: Max. 2.0 V (with a cable length of 5 m)
- Operating Ambient Temperature: -10 to +55 °C (No freezing)
- Storage Temperature: -25 to +60 °C (No freezing)
- Power voltage: 24 VDC ±20%, ripple (P-P) 10% or less, Class 2
- Operating Relative Humidity: 15 to 85 % RH (No condensation)
- Storage Relative Humidity: 15 to 95 % RH
- Shock Resistance: 100 m/s2 (Approx. 10 G), 16 ms pulse
- Vibration Resistance: 10 to 55 Hz, Double amplitude 0.7 mm
- Weight: 3.08 kgs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 38 minutes.
