KEYENCE GS-11P5 NON-CONTACT SAFETY SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: GS-11P5
IMS Product Code: 2153509
Packaging: Sold Individually
Description:

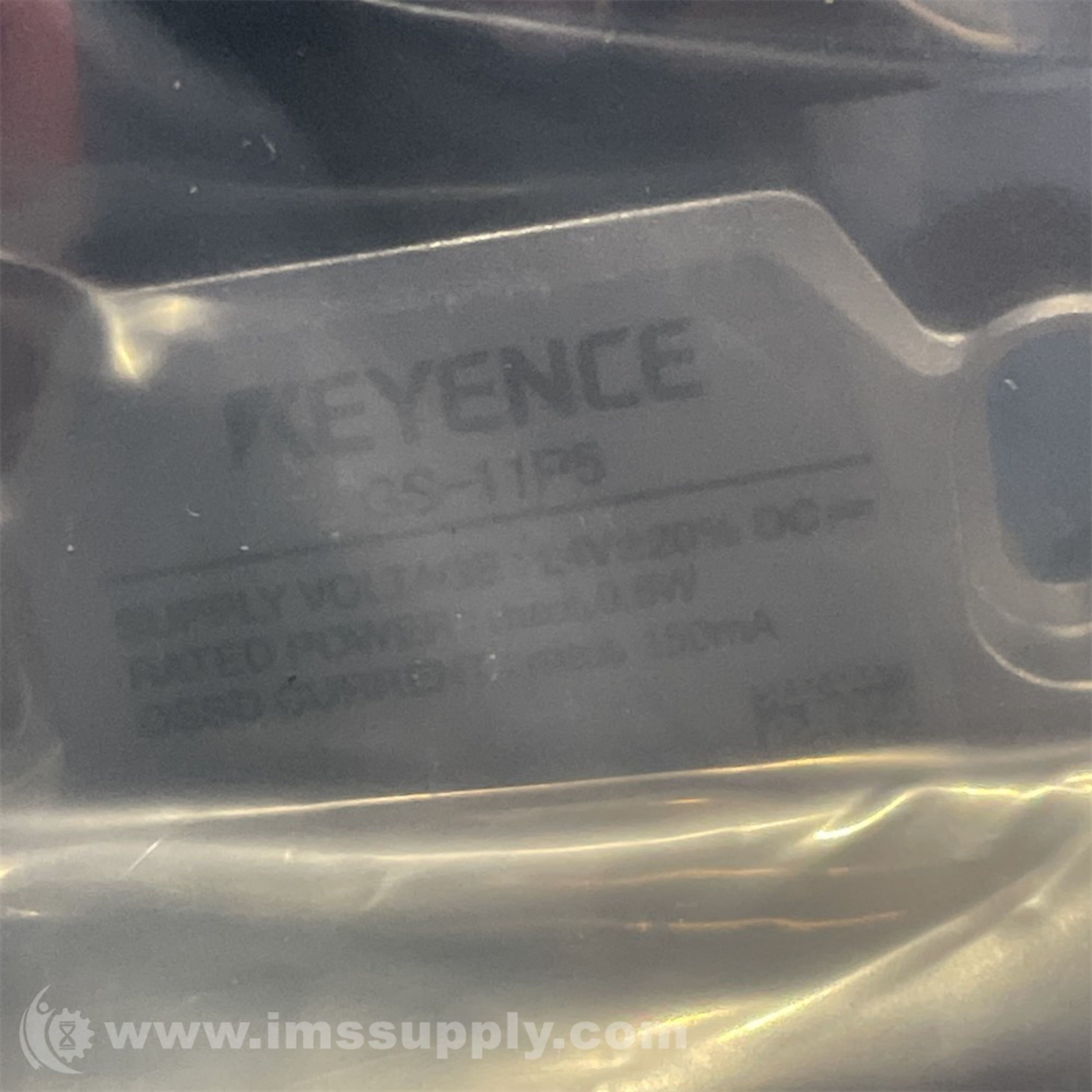

Keyence GS-11P5 Non-Contact Safety Sensor
Non-contact type safety sensor with PNP output and 5m cable.
Specifications
- Type: Standard type
- Operating Distance Front Sao(OFF->ON): 10 mm 0.39"
- Operating Distance Front Sar(ON->OFF): 18 mm 0.71"
- Operating Distance Side Sao(OFF->ON): 6 mm 0.24"
- Operating Distance Side Sar(ON->OFF): 14 mm 0.55"
- Response Time Detection Detect->Not detect: 20 ms + 2 ms × (number of units cascaded -1)
- Response Time Detection Not detect->Detect: 30 ms + 25 ms × (number of units cascaded -1)
- Door Operation Acceptable Operation Frequency: 3 Hz
- Cascading Standard Max.: 30 units
- Control Output (OSSD Output) Output: Transistor outputs × 2
- Control Output (OSSD Output) Max. Load Current: Max. 150 mA
- Control Output (OSSD Output) Residual Voltage (During ON): Max 2.5 V (with a cable length of 5 m 16.40')
- Control Output (OSSD Output) OFF State Voltage: Max 2.0 V (with a cable length of 5 m 16.40')
- Control Output (OSSD Output) Leakage Current: Max. 500 µA
- Control Output (OSSD Output) Max. Capacitive Load: 2.2 µF
- Control Output (OSSD Output) Load Wiring Resistance: Max.2.5?
- AUX (Non-Safety Related Output) Output: Transistor output
- AUX (Non-Safety Related Output) Number of Outputs: 1
- AUX (Non-Safety Related Output) Max. Load Current: 50 mA
- AUX (Non-Safety Related Output) Residual Voltage (During ON): Max 2.5 V (with a cable length of 5 m 16.40')
- External Input (Short-Circuit Current) Safety Input: Approx. 1.5 mA × 2
- Applicable Standards (Safety): EN 61508, IEC 61508 (SIL3), EN 6206, IEC62061 (SIL CL3), EN ISO13849-1: 2015 (PLe, Category 4), EN ISO14119 (Type4), IEC 60947-5-3, EN 60947-5-3, UL 61010-1, CAN/CSA-C22.2 No.61010-1
- Protection Circuit: Reverse current protection, short-circuit protection and surge protection for each output
- Power Supply Power Voltage: 24 V DC ±20 % (Ripple P-P 10 % or less, Class2)
- Power Supply Power Consumption: 0.8 W
- Environmental Resistance Enclosure Rating: IP65/67(IEC60529), IP69K(ISO20653) (TÜV SÜD certified) Enclosure Type 3/4X/12/13 (NEMA250)
- Environmental Resistance Operating Ambient Temperature: -20°C to +55°C -4°F to 131°F (No freezing)
- Environmental Resistance Operating Relative Humidity: 5% to 95%RH
- Environmental Resistance Storage Temperature: -25°C to +70°C -13°F to 158°F (No freezing)
- Environmental Resistance Storage Relative Humidity: 5% to 95%RH
- Environmental Resistance Vibration Resistance: 10 to 55 Hz, Double amplitude 3.0 mm 0.12", 5 minutes in each of the X, Y, and Z directions (IEC 60947-5-3)
- Environmental Resistance Shock Resistance: 30 G in X, Y, Z directions 6 times each axis (IEC 60947-5-3)
- Material Sensor Main Unit Case: Zinc die cast (Nickel chrome plating), PBT, PAR
- Material Sensor Main Unit Cable: PVC
- Material Actuator Case: SUS430, SUS304, PBT
- Weight: Approx. 270 g
- OSSD Operation: Open/close link mode
- Interlock Function: Automatic only
- EDM Function: N/A
- Cable: Drawn from the main unit

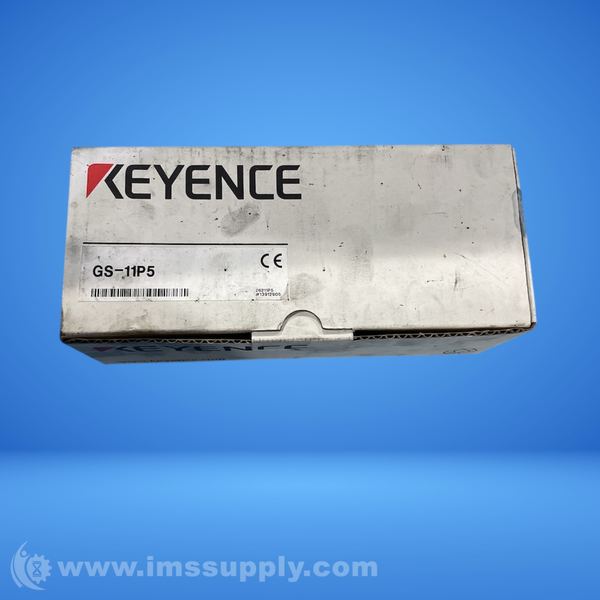

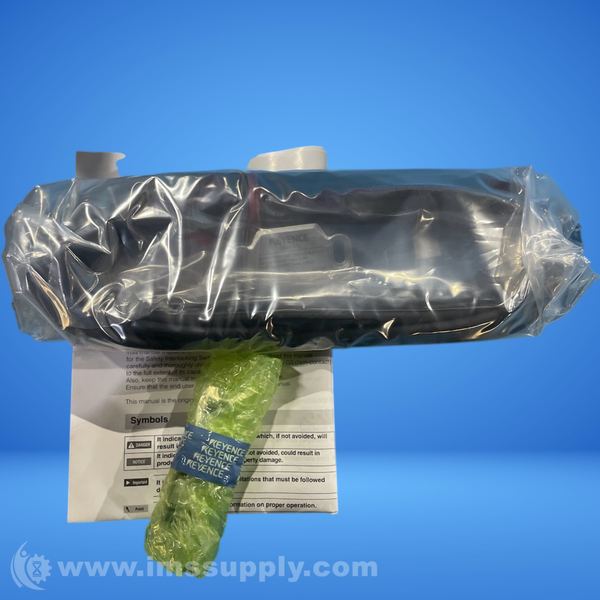

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
