KEYENCE GS-51P5 SAFETY INTERLOCK SWITCH
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: GS-51P5
IMS Product Code: 2147809
Packaging: Sold Individually
Description:

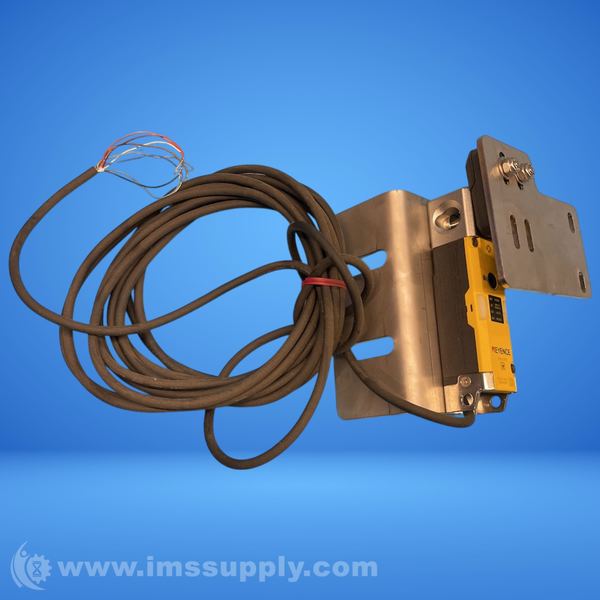

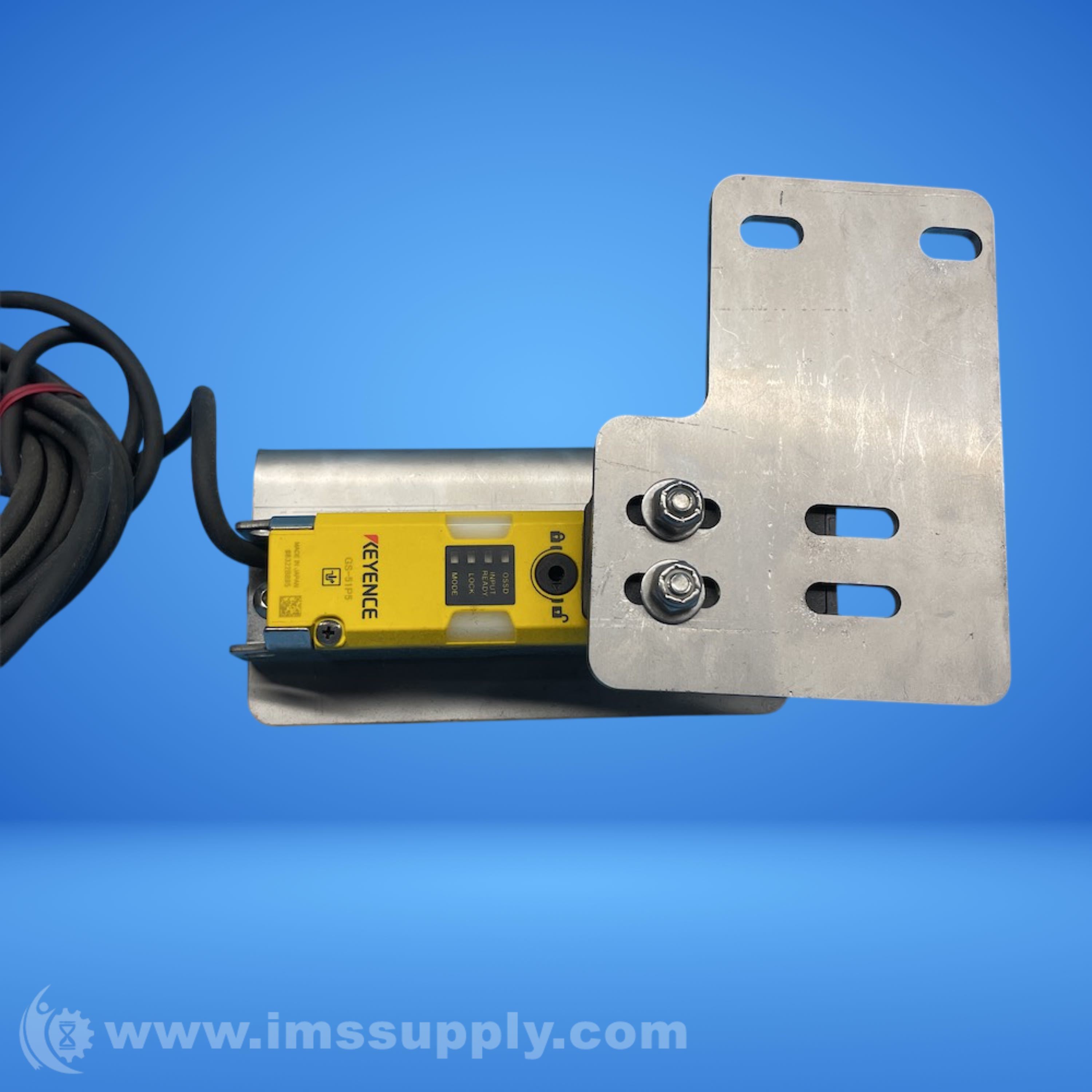

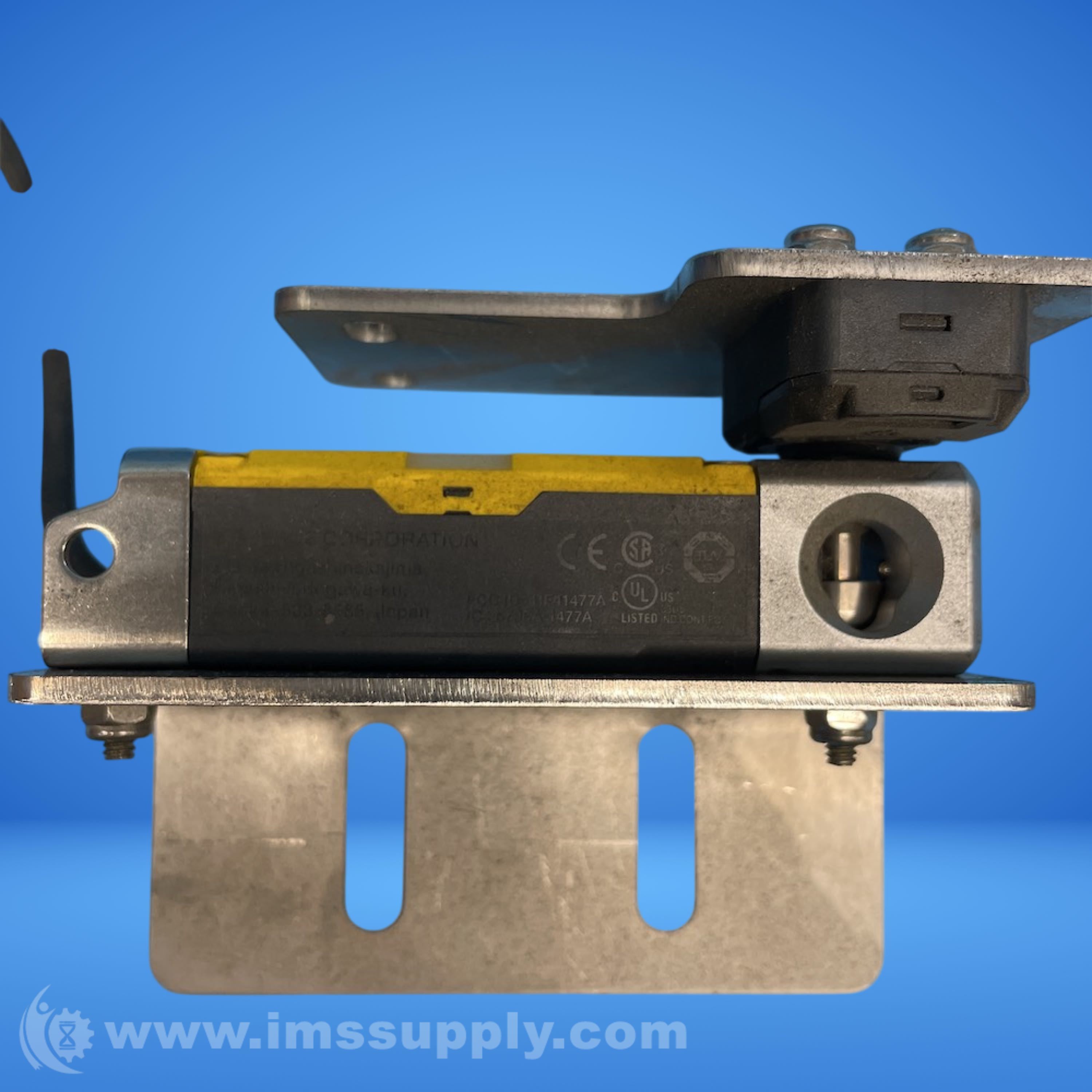

Keyence GS-51P5 Safety Interlock Switch

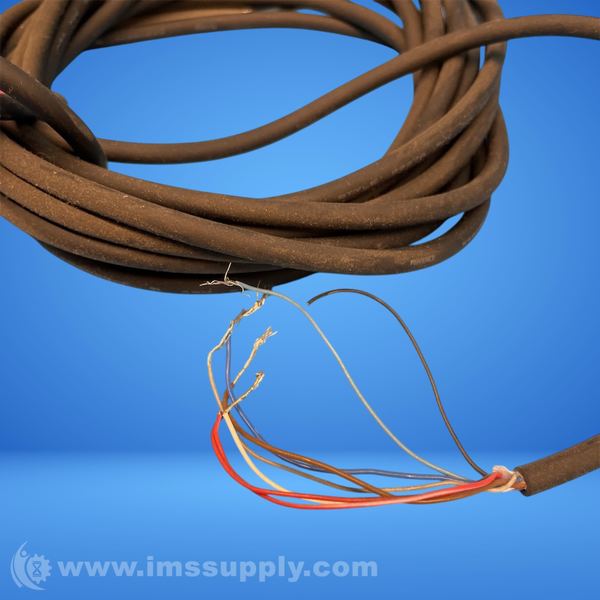

Power-to-release Standard type PNP Standard cable 5 m safety interlocking switch with transistor outputs and auxiliary output
Specifications
- Lock type: Power-to-release type
- Response time (Lock?Unlock): 220 ms
- Response time (Unlock?Lock): 220 ms
- Locking force (Fzh): Min. 2,000 N
- Alignment tolerance of lock: ±2 mm
- Mechanical life-span: 1 million cycles or more
- Acceptable operation frequency: 1 Hz
- Door radius: Min. 250 mm
- Auxiliary release: Front, back
- Cascading: Max. 25 units
- Control output (OSSD output): Transistor outputs × 2
- Max. load current: Max. 150 mA
- Residual voltage (during ON): Max 2.5 V
- OFF state voltage: Max 2.0 V
- Leakage current: Max. 0.5 mA
- Max. capacitive load: 2.2 µF
- Load wiring resistance: Max. 2.5 ?
- AUX (Non-safety related output): Transistor output
- Number of outputs: 1
- Max. load current (AUX): 50 mA
- Residual voltage (during ON) (AUX): Max 2.5 V
- External input (Short-circuit current): Approx.1.5 mA × 2, Approx. 2.5 mA × 1
- Power voltage: 24 V DC ±20 %
- Power consumption: 3.4 W
- Enclosure rating: IP65/67, IP69K
- Operating ambient temperature: -20°C to +55°C
- Operating relative humidity: 5% to 95%RH
- Storage temperature: -25°C to +70°C
- Storage relative humidity: 5% to 95%RH
- Vibration resistance: 10 to 55 Hz, Double amplitude 2.0 mm
- Shock resistance: 30 G
- Material (Sensor main unit): SUS304, PPS, PBT, PAR, PA66, NBR
- Material (Lock): Aluminum alloy, Zinc die cast
- Material (Cable): PVC
- Material (Actuator): PPS, PBT, NBR, Aluminum alloy, SUS303
- Weight: Approx. 560 g
