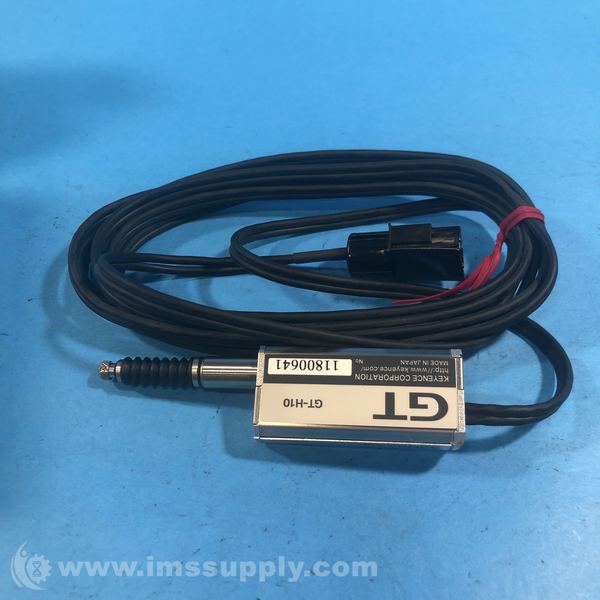

KEYENCE GT-H10 DIGITAL CONTACT SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: GT-H10
IMS Product Code: 1823719
Packaging: Sold Individually
Description:
Keyence GT-H10 Digital Contact Sensor
General Purpose Digital Contact Sensor
Specifications
- Measuring range: 10 mm 0.39"
- Measuring force (Downward mounting): 1.0 N
- Measuring force (Side mounting): 0.9 N
- Measuring force (Upward mounting): 0.8 N
- Mechanical response: 10 Hz (at ambient temperature of 23 degrees C 73 degrees F)
- Repeatability: 3 µm 0.00012" (at ambient temperature of 23 degrees C 73 degrees F)
- Enclosure rating: IP67
- Ambient temperature: -10 to +55 degrees C 14 to 131 degrees F
- Relative humidity: 35 to 85 % RH
- Material: Housing: TYPE430 Stainless steel, Indicator: Polyarylate, Dust boot: NBR, Contact: TYPE304 stainless steel, Cable: PVC
- Weight: Approx. 115 g (With 2-m 6.6' cable)
- Voltage - Supply: 12-24v
- Output Type: npn

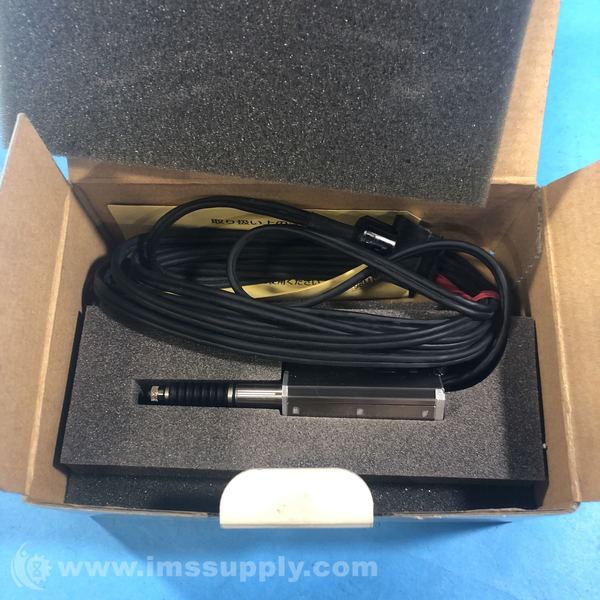

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
