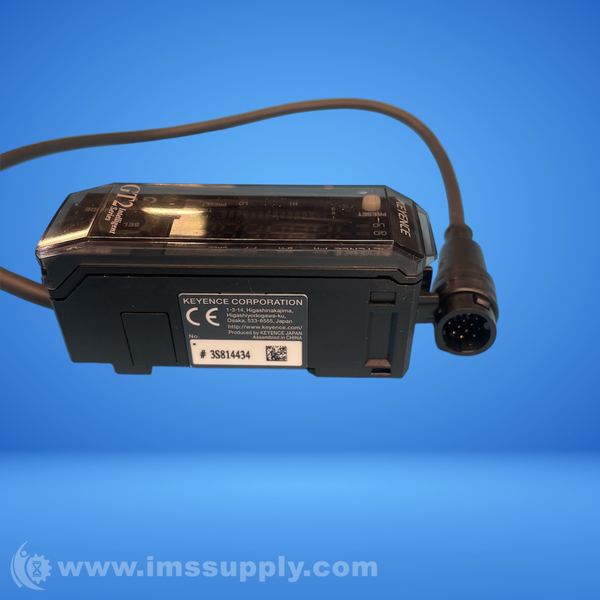

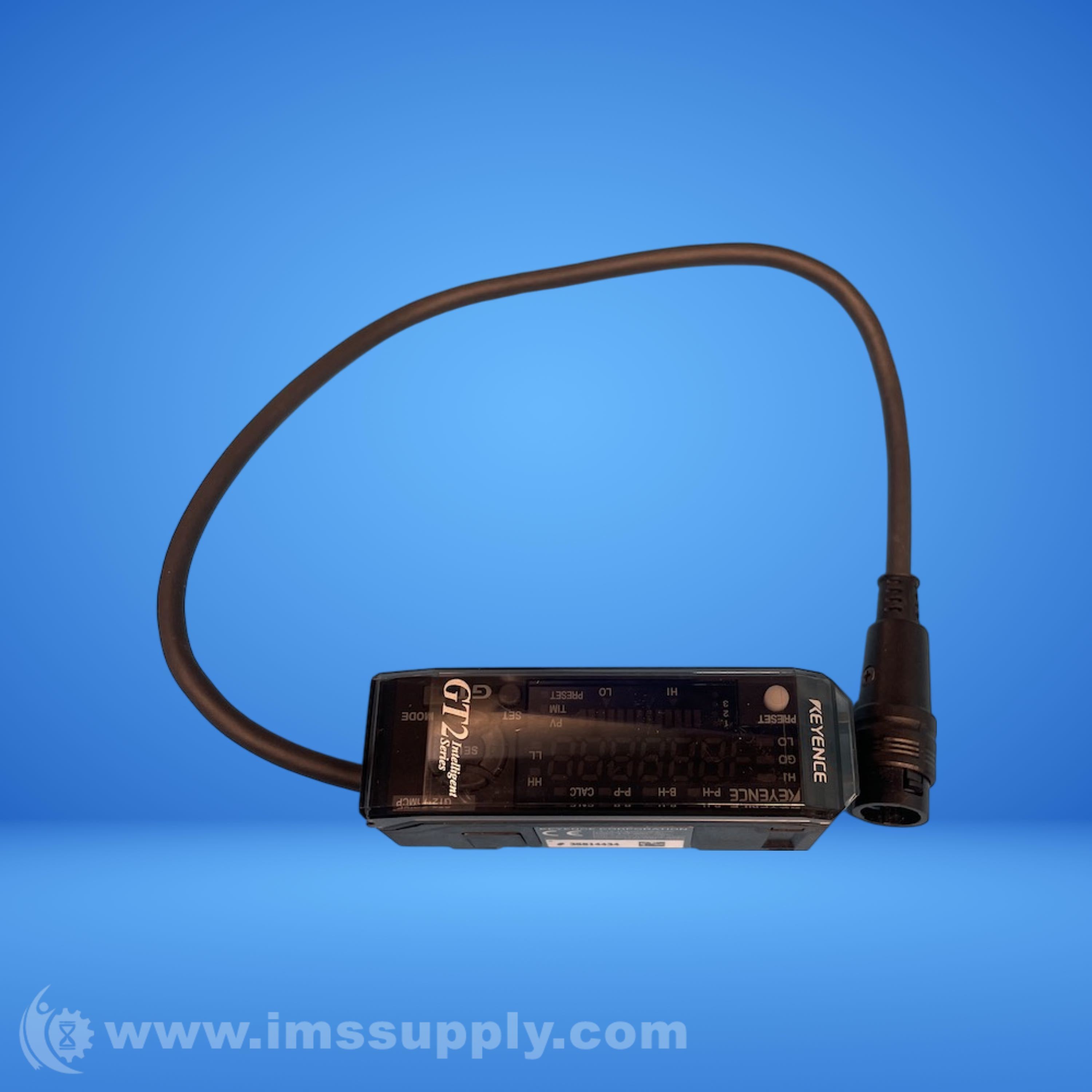

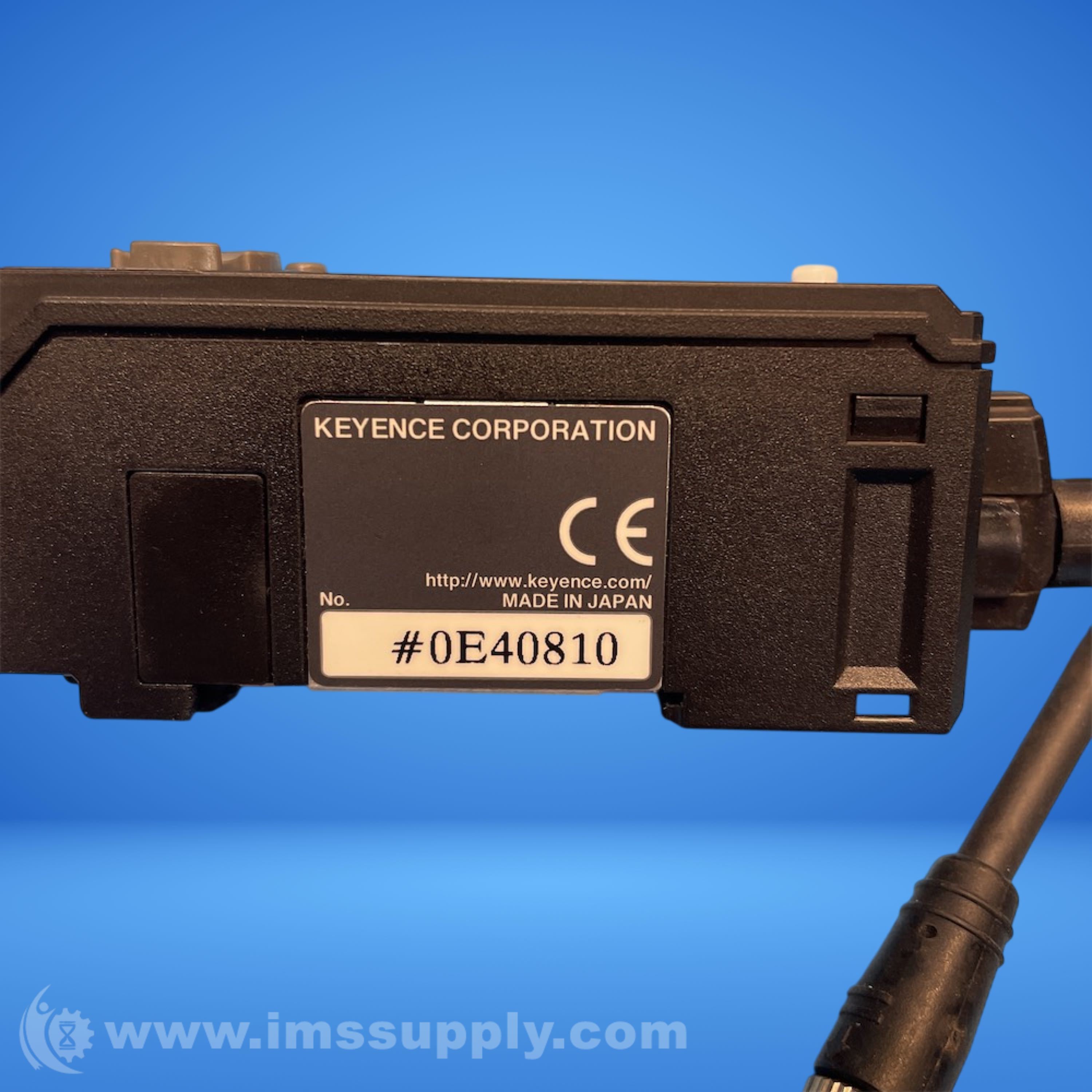

KEYENCE GT2-71MCP DIGITAL CONTACT SENSOR AMPLIFIER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: GT2-71MCP
IMS Product Code: 2132563
Packaging: Sold Individually
Description:

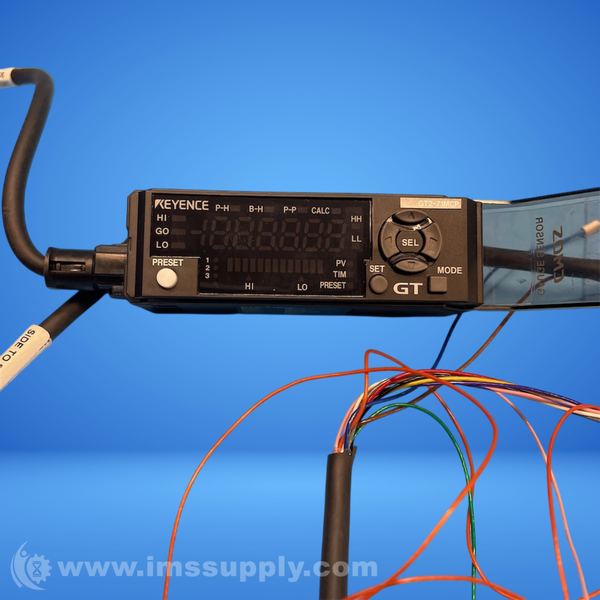

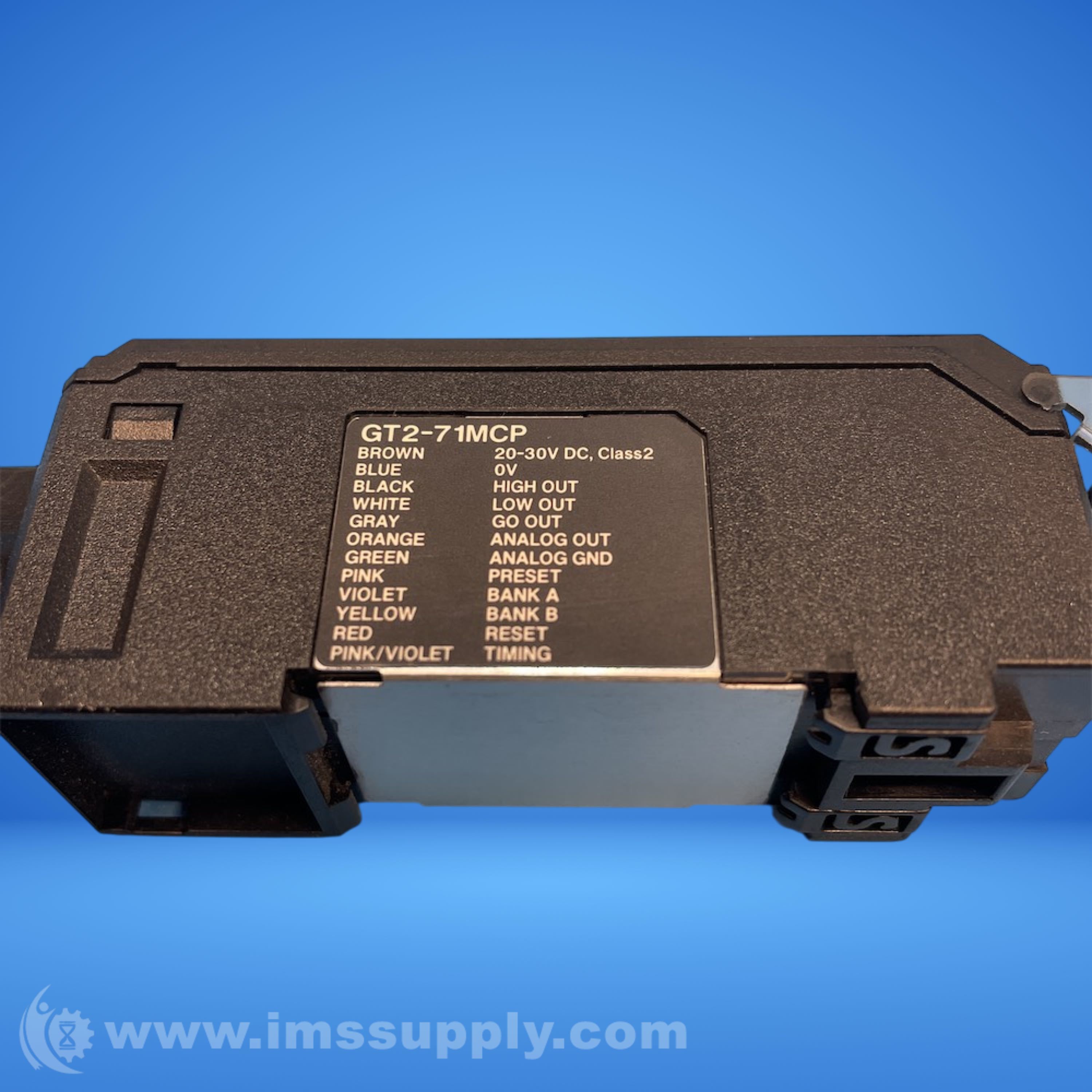

Keyence GT2-71MCP Digital Contact Sensor Amplifier
PNP type amplifier unit with analog output, high-accuracy digital contact sensor with 1,000 Hz sampling rate, 20-30 VDC power supply, DIN rail mount.
Specifications
- Mounting Method: DIN-rail mount
- Output: PNP open-collector
- Analog Output: 4 to 20 mA, with adjustable range
- Power Supply Voltage: 20 to 30 VDC, including 10% ripple (P-P), Class 2
- Power Consumption: Normal: 2,700 mW max. (30 V, 90 mA max.), Eco Mode: 2,200 mW max. (30 V, 73.3 mA max.)
- Display: Measured Value: 6 + 1/2-digit 7-segment LED (red), Other Displays: 2-color, 13-level bar LED (red, green), indicators (red, green)
- Display Range: -199.999.9 to 199.999.9
- Display Resolution: 0.1 µm
- Response Time: Selectable (3 ms to 1,000 ms)
- Environmental Resistance: Ambient Temperature: -10 to +50 degrees C, Relative Humidity: 35 to 85% RH (No condensation), Vibration Resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

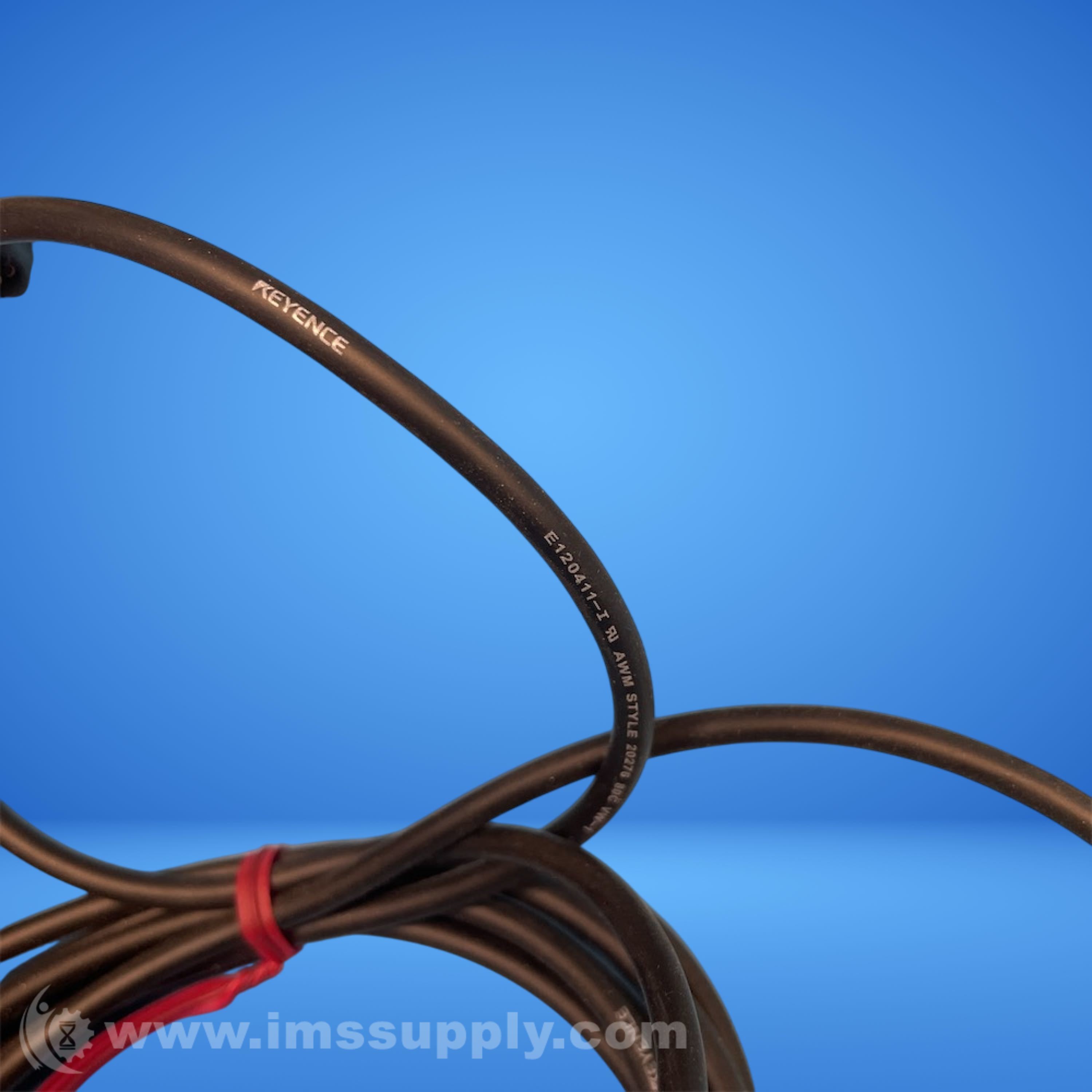

- Material: Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET, Cable: PVC
- Weight: Approximately 70 g

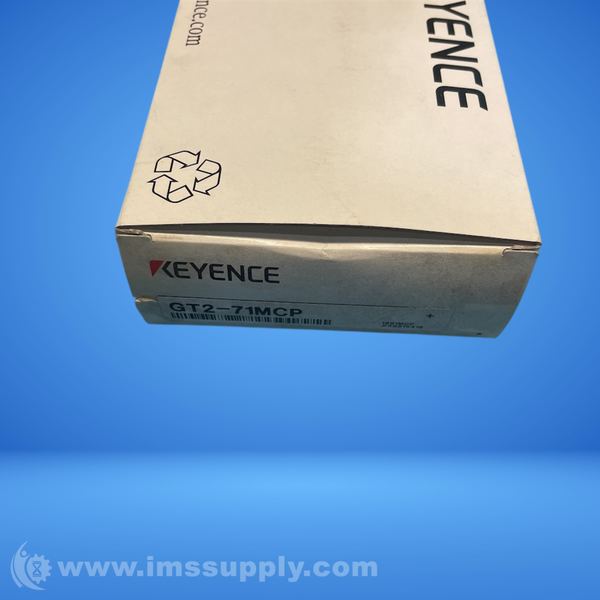

New - Missing Box (Special):

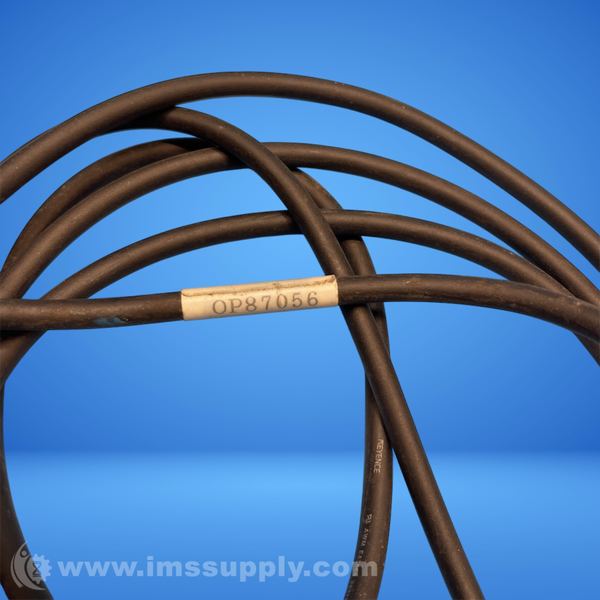

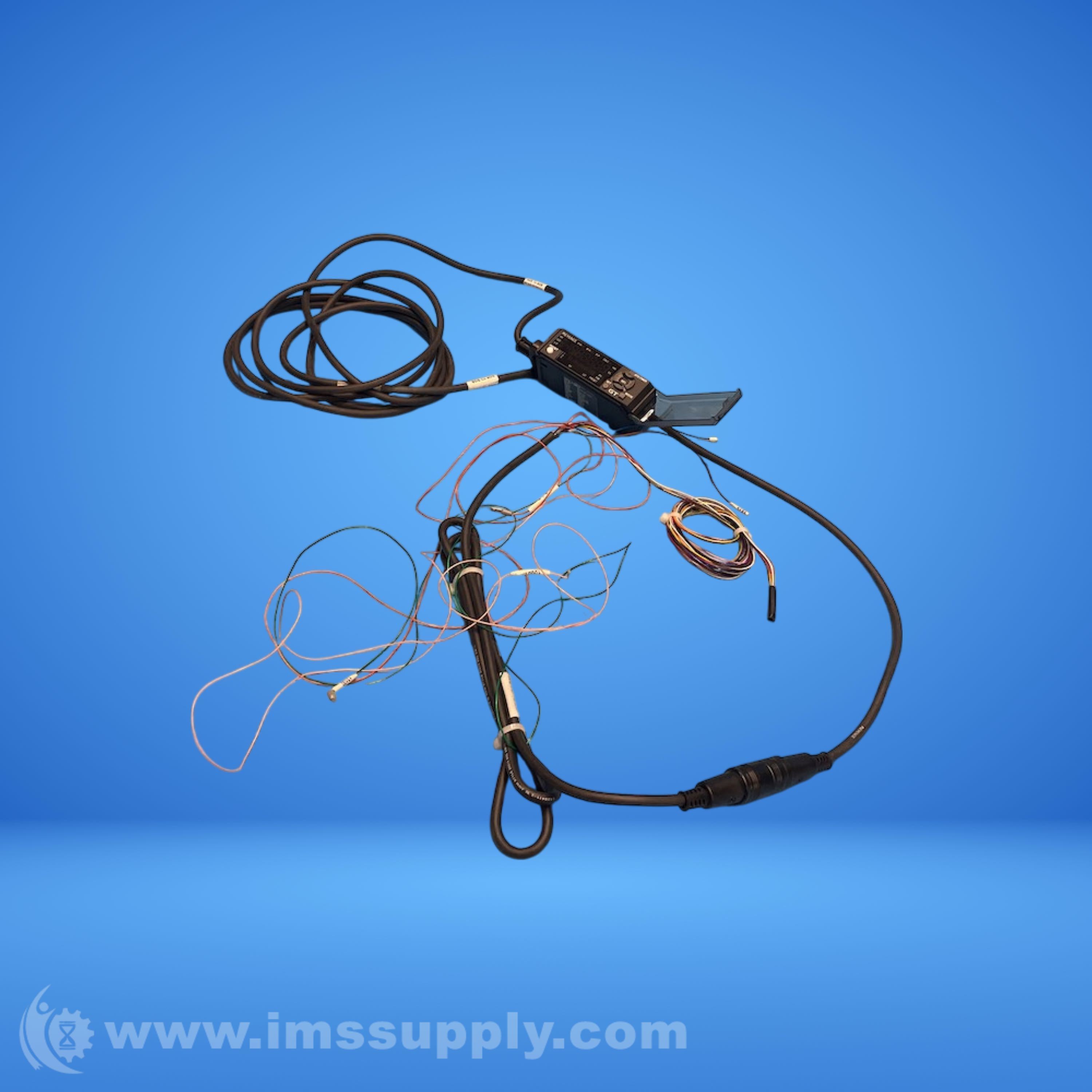

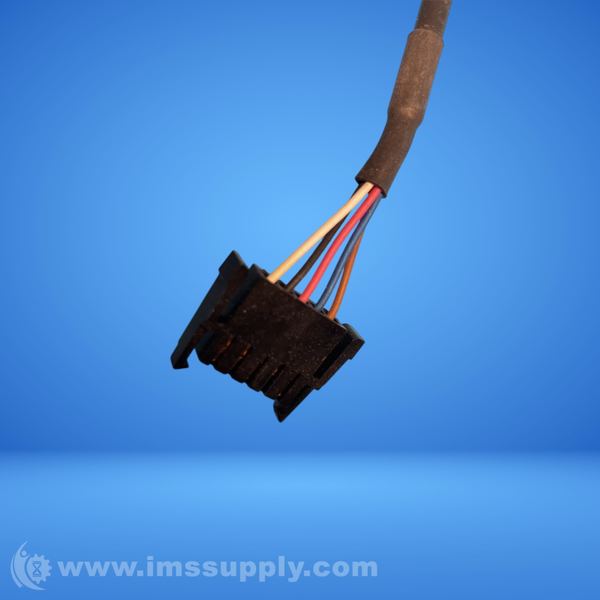

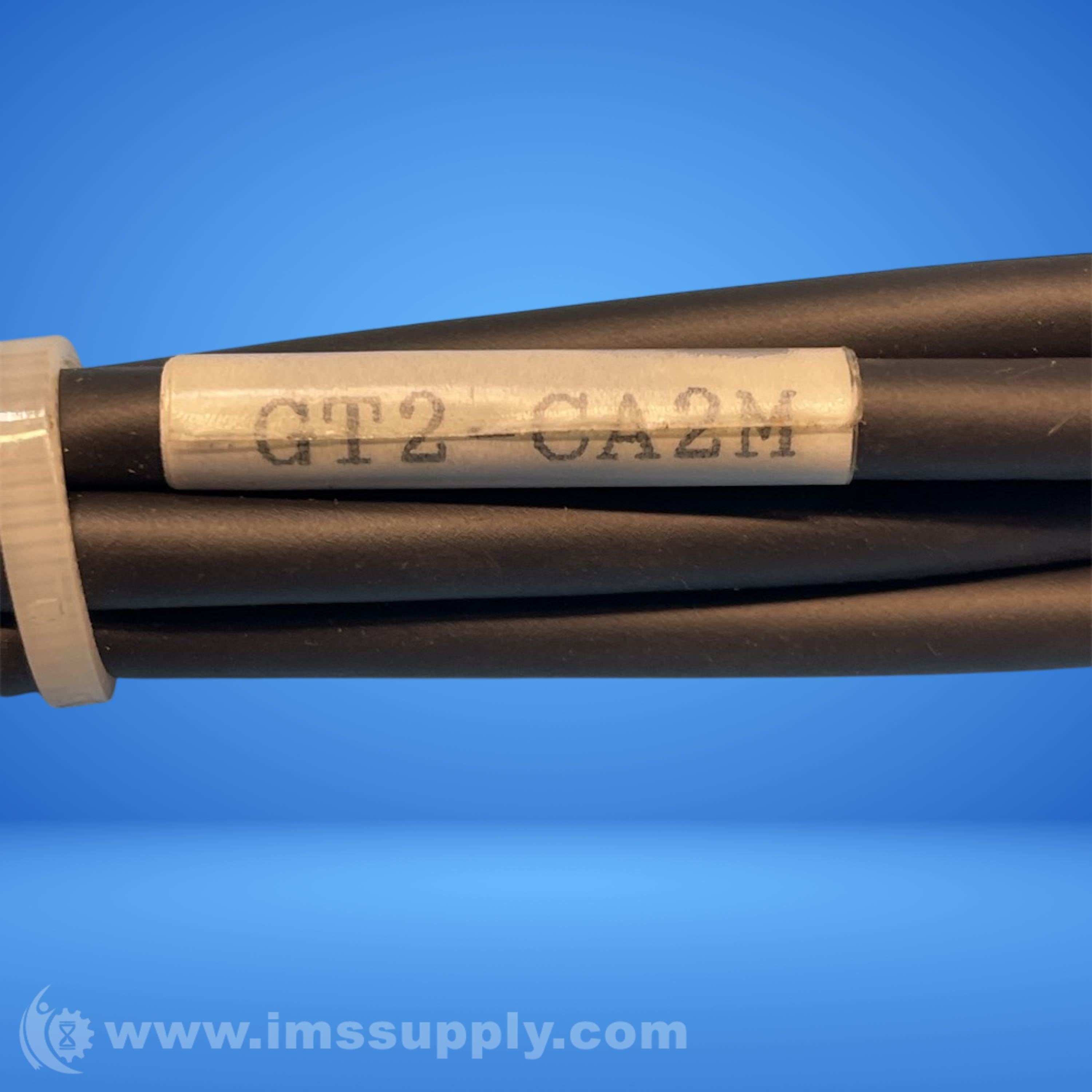

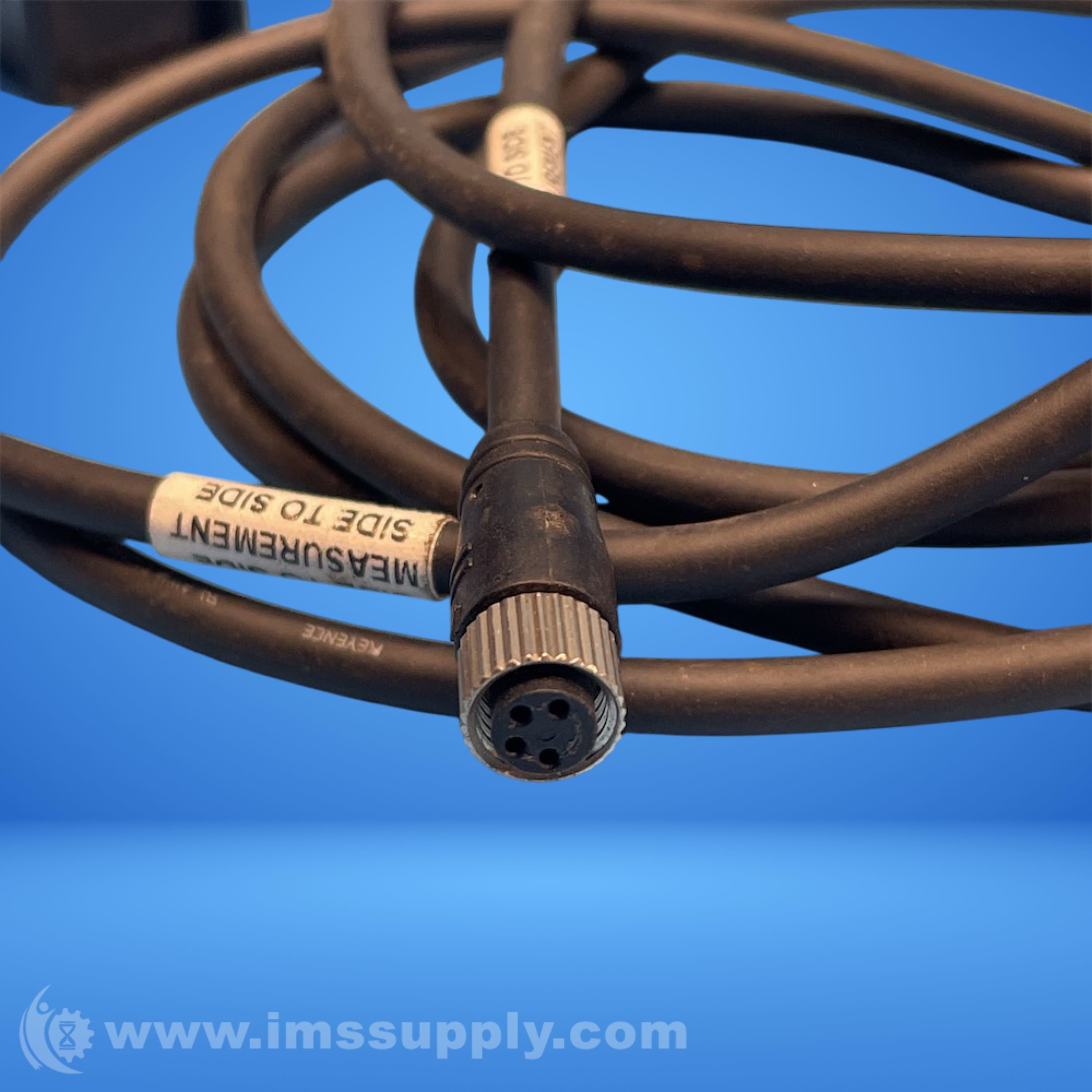

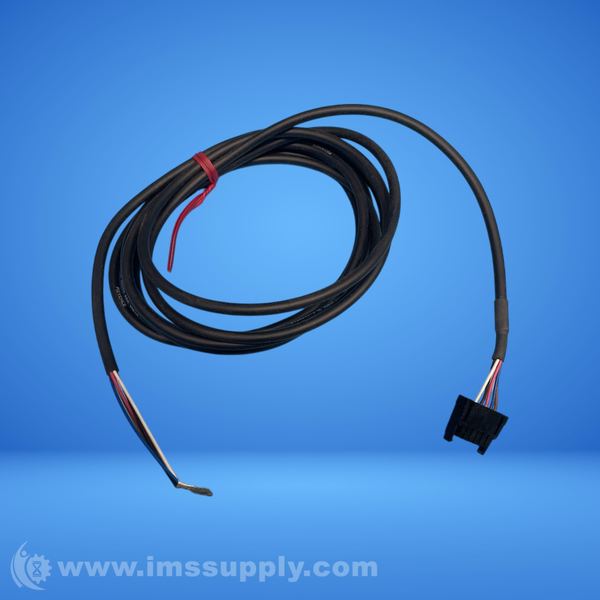

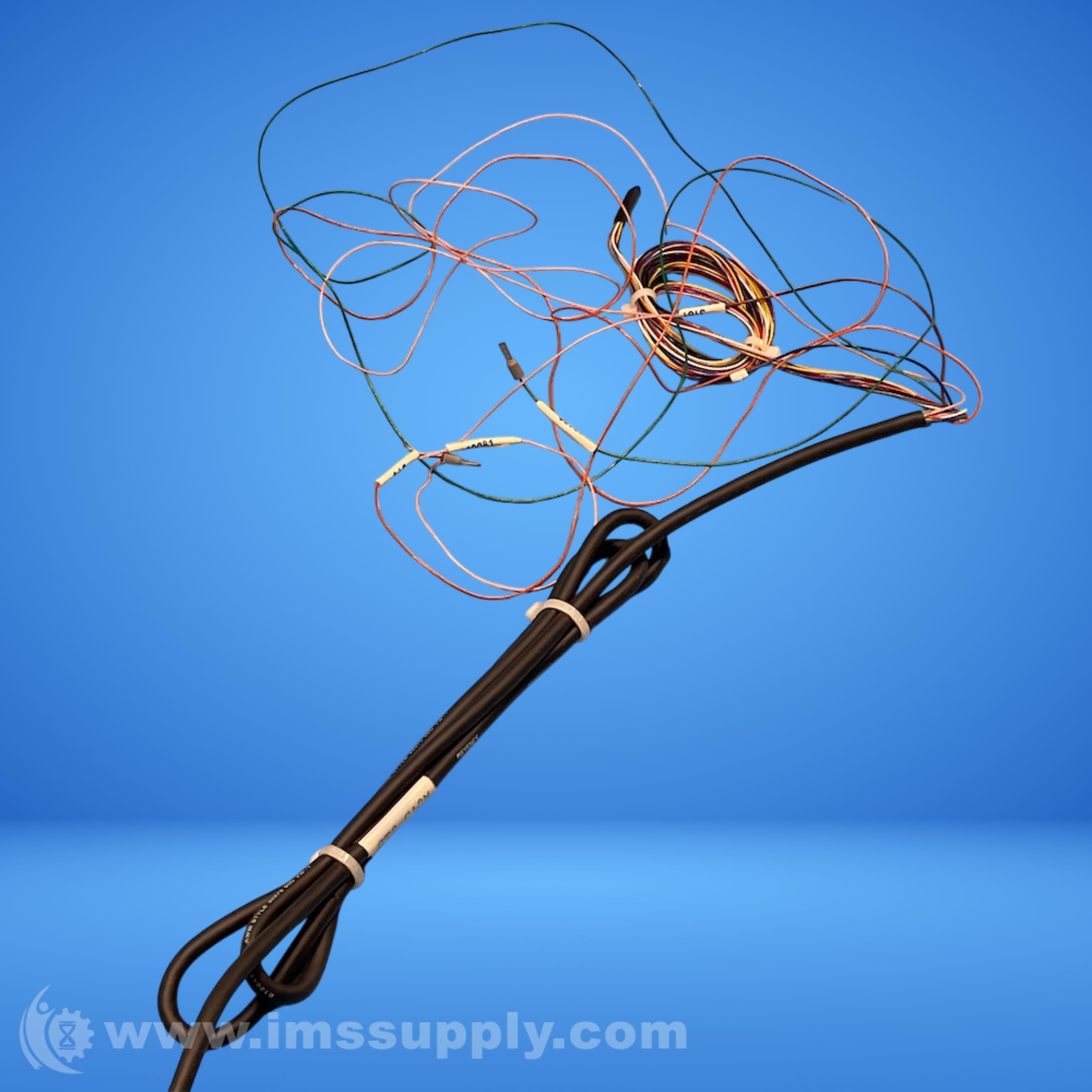

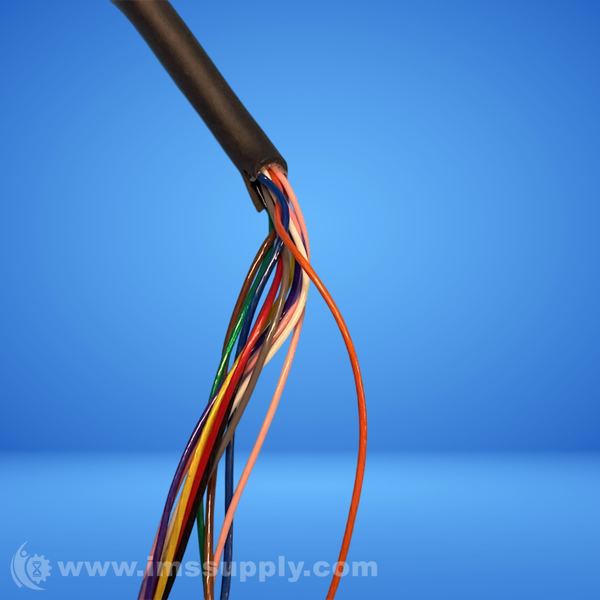

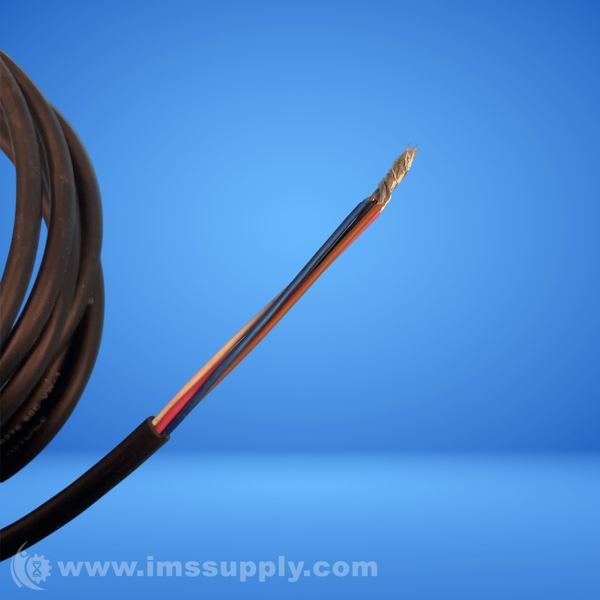

Part has unknown attachment.
