KEYENCE GV-21P LASER SENSOR AMPLIFIER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: GV-21P
IMS Product Code: 1825248
Packaging: Sold Individually
Description:

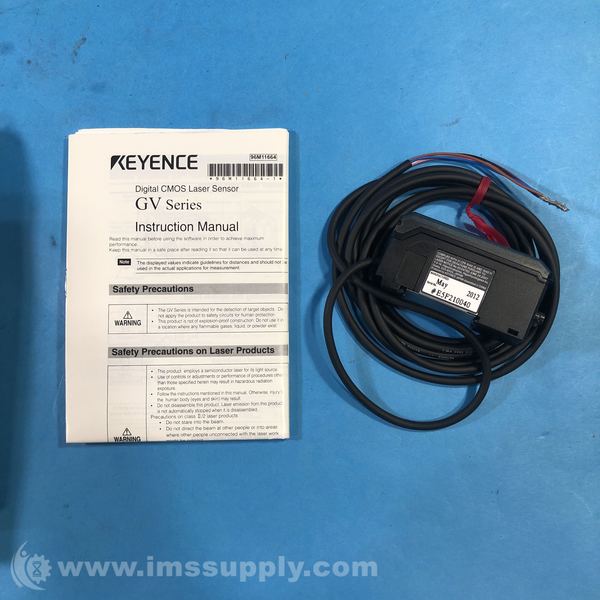

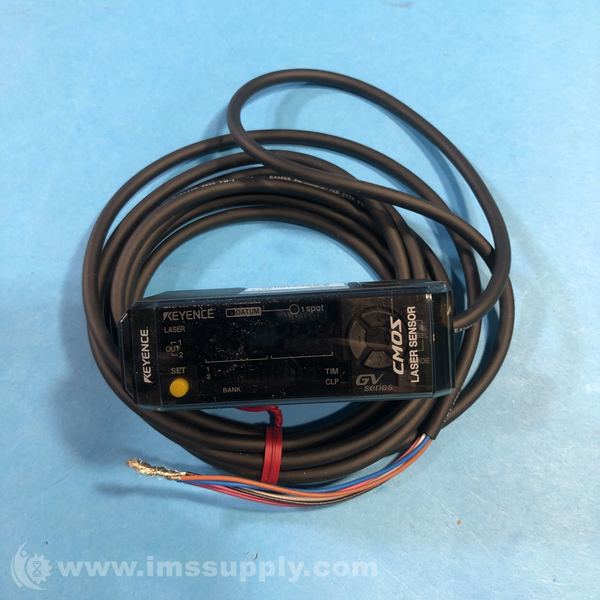

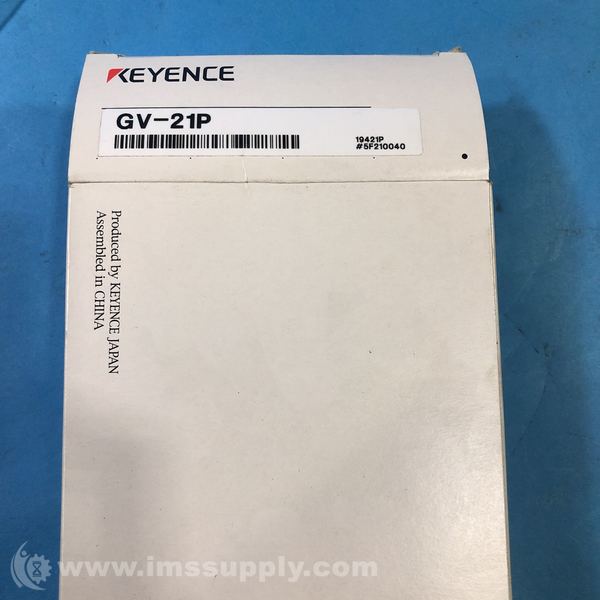

Keyence GV-21P Laser Sensor Amplifier
Digital CMOS Laser Sensor Amplifier, PNP output, 10-30 VDC supply, 1.5-50 ms response time
Specifications
- Termination Type: Cable
- Sensor Type: Digital CMOS Laser Sensor Amplifier
- Output Type: Digital
- Output: PNP
- Control Output: PNP open collector x 2ch, 30 V DC max./Max. 100 mA, residual voltage 1 V max.
- Control Input: Emission stop input, Bank switching input, Shift input, Timing input, Each input response time: 20 ms
- Response Time: 1.5/3/10/20/50 ms
- Power Voltage: 10 to 30 VDC, including Ripple (P-P) 10 %, Class 2
- Ambient Temperature: -10 to +55 degrees C (No freezing)
- Relative Humidity: 35 to 85 % RH (No condensation)
- Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z axis
- Material: Housing material, display cover: Polycarbonate, Key Top: Polyacetal, Cable: PVC
- Weight: 0.11 Kg
- Country of Origin: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 4 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 1 hours and 4 minutes.
Used (Special):
2 Sensors Attached to each other
Availability: 2 In Stock
Ships today if ordered in the next 1 hours and 4 minutes.
Used (Special):
TWO IDENTICAL PARTS CONNECTED TOGETHER
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 4 minutes.
