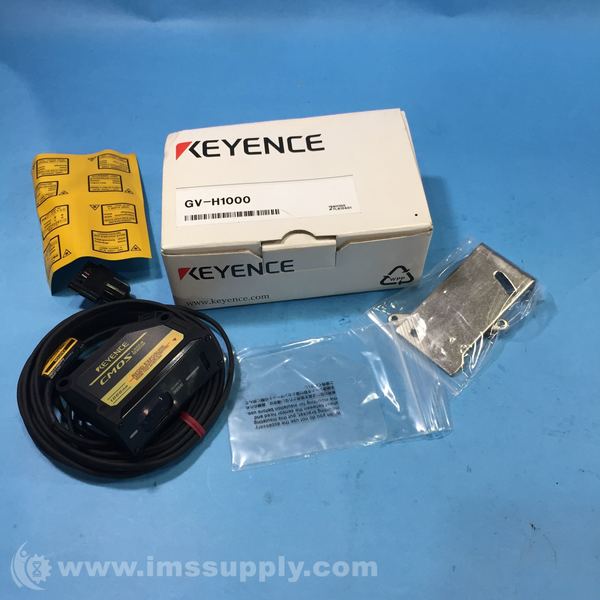

KEYENCE GV-H1000 CMOS LASER SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: GV-H1000
IMS Product Code: 1865742
Packaging: Sold Individually
Description:

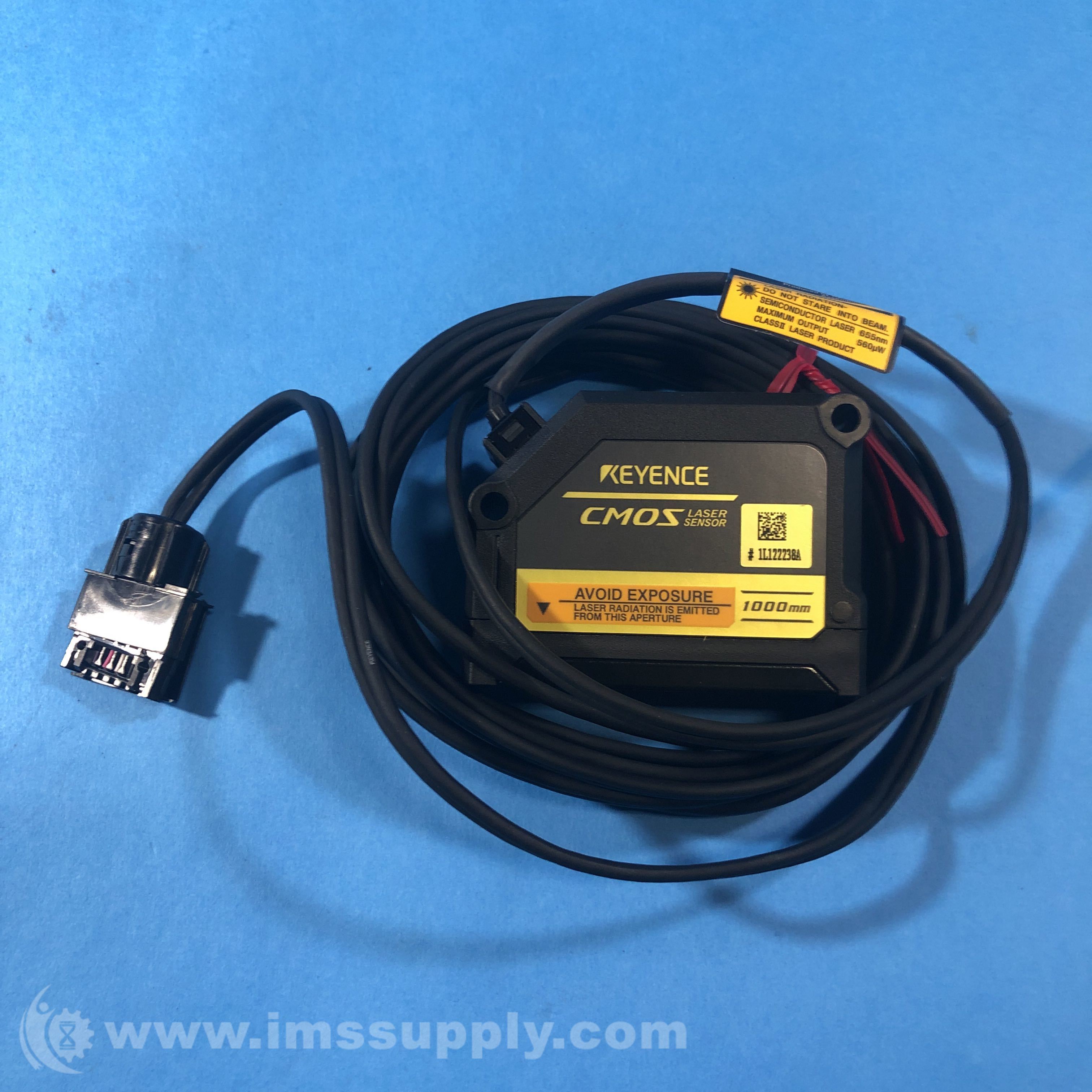

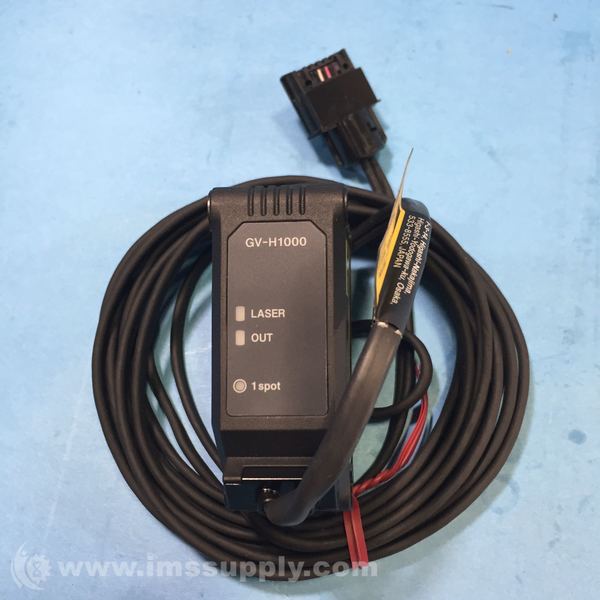

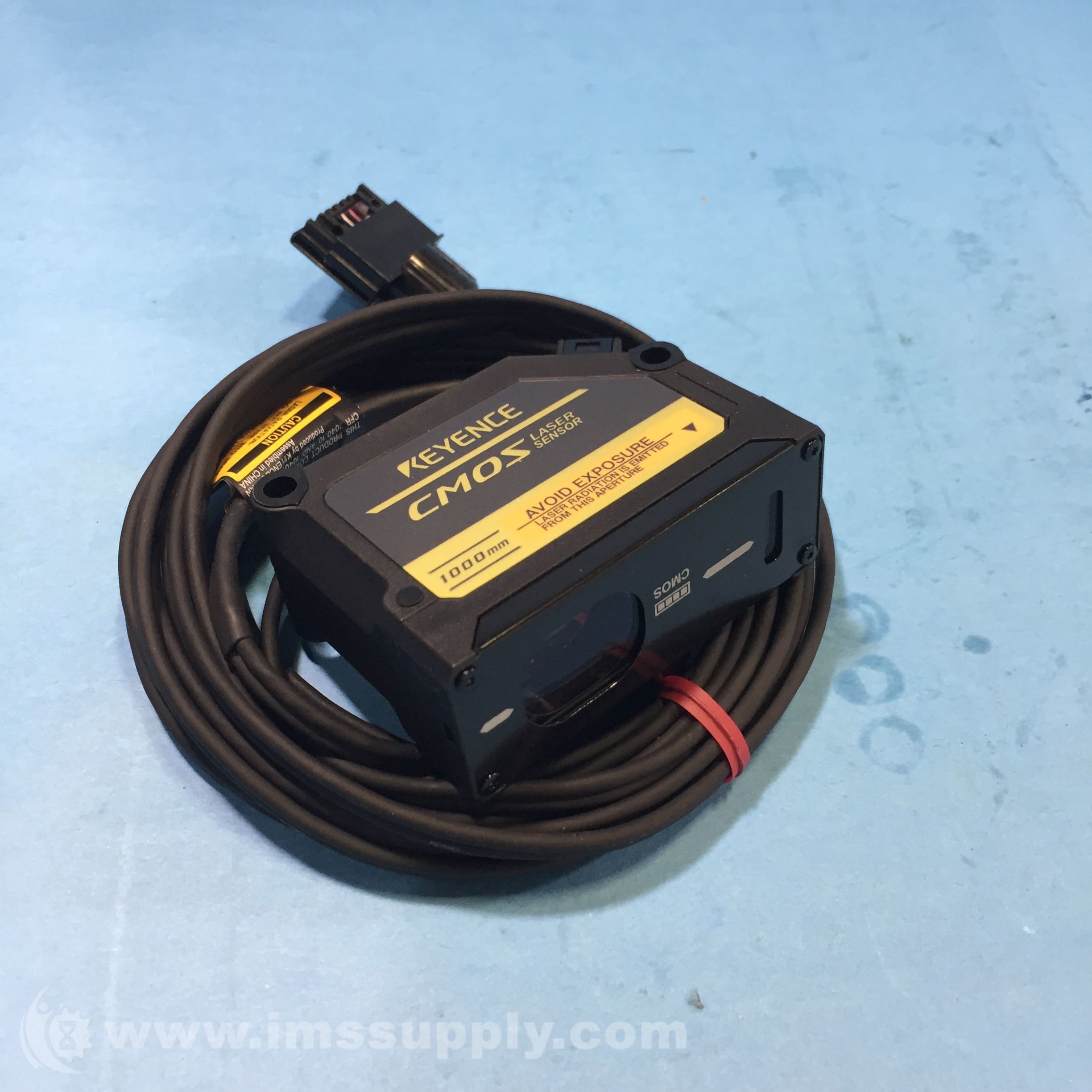

Keyence GV-H1000 CMOS Laser Sensor
Digital CMOS Laser Sensor for ultra-long-distance detection. Uses a visible 655 nm semiconductor laser. Detection range: 200 to 1000 mm. IP67 rated housing.
Specifications
- Light source: Visible semiconductor laser, Wavelength: 655 nm

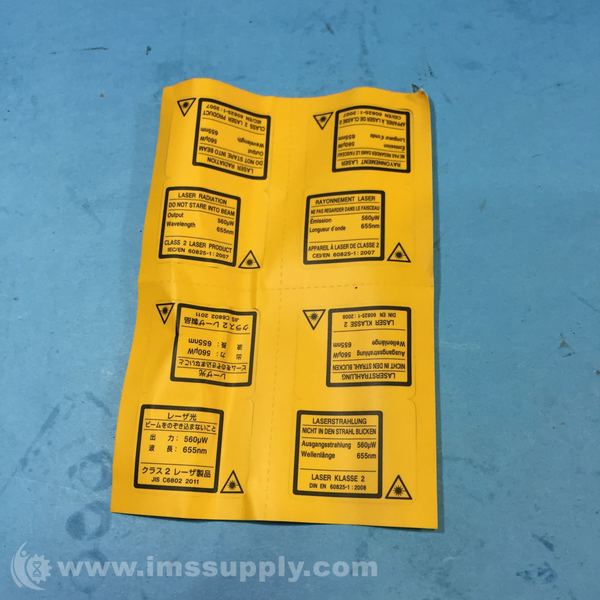

- Laser class: FDA (CDRH) Part 1040.10 Class 2 (560 �W) IEC 60825-1 JIS C6802
- Detection distance: 200 to 1000 mm
- Spot diameter: Approx. �1.8 mm at 1000 mm
- Enclosure rating: IP67
- Operating ambient luminance: Incandescent lamp: 5000lx Sunlight: 10000lx
- Ambient temperature: -10 to +50 �C
- Relative humidity: 35 to 85 % RH
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm
- Material: Housing: PBT, Display: Polyarylate, Metal: SUS304, Lens cover: Glass, Cable: PVC
- Weight: Approx. 210 g
