KEYENCE GV-H450 CMOS LASER SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: GV-H450
IMS Product Code: 1792651
Packaging: Sold Individually
Description:

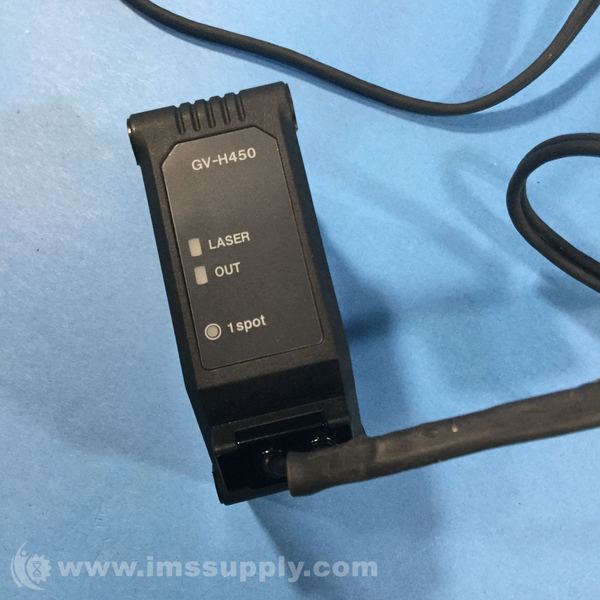

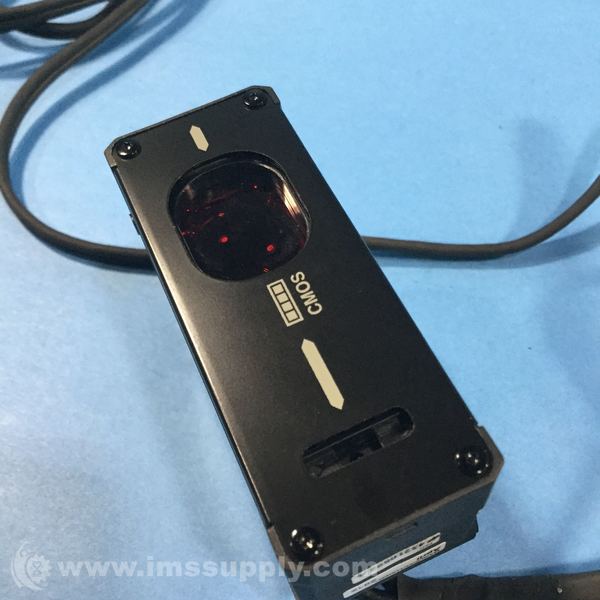

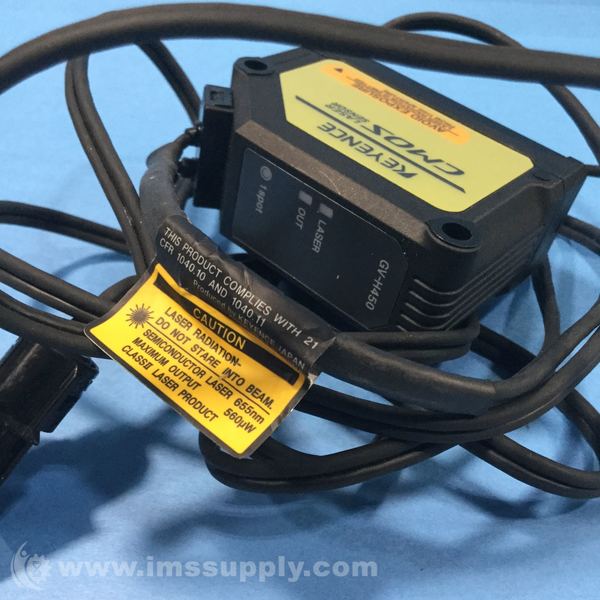

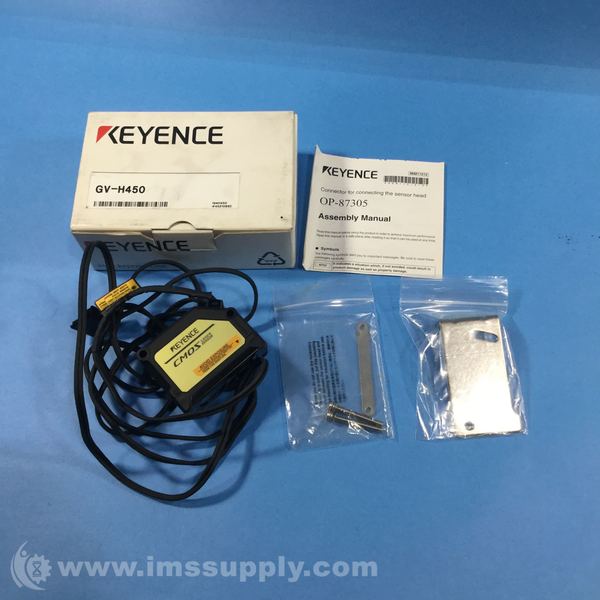

Keyence GV-H450 CMOS Laser Sensor
Digital CMOS Laser Sensor, 160-450mm Detection Difference, 655nm Wavelength
Specifications
- Light source: Visible semiconductor laser, Wavelength: 655 nm
- Laser class: FDA (CDRH) Part 1040.10 Class 2 (560 µW)
- Detection distance (Amplifier display ): 160 to 450 mm 6.30" to 17.72" (290 to 0)*1)
- Possible display range: 295 to -50
- Standard detection deviation: 3 mm 0.12"
- Spot diameter: Approx. ø0.8 mm ø0.031" (Detection distance 450 mm 17.72")
- Operation status indicators: Control output: Red LED/Laser radiation emission indicator: Green LED/1 spot indicator: Green LED
- Enclosure rating: IP67
- Operating ambient luminance/Incandescent lamp: 5000lx
- Operating ambient luminance/Sunlight: 10000lx
- Ambient temperature: -10 to +50 degrees C 14 to 122 degrees F (No freezing)
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
- Material: Housing material: PBT, Display: Polyarylate, Metal: SUS304, Lens cover: Glass, Cable: PVC
- Current Type: DC
- Termination Type: Cable
- Shield: Shielded
- Sensor Type: Solid State
- Output Type: Digital
- Compatible Mounting Type: Through Hole
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
