KEYENCE IG-010 MULTI-PURPOSE CCD LASER MICROMETER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: IG-010
IMS Product Code: 2132972
Packaging: Sold Individually
Description:

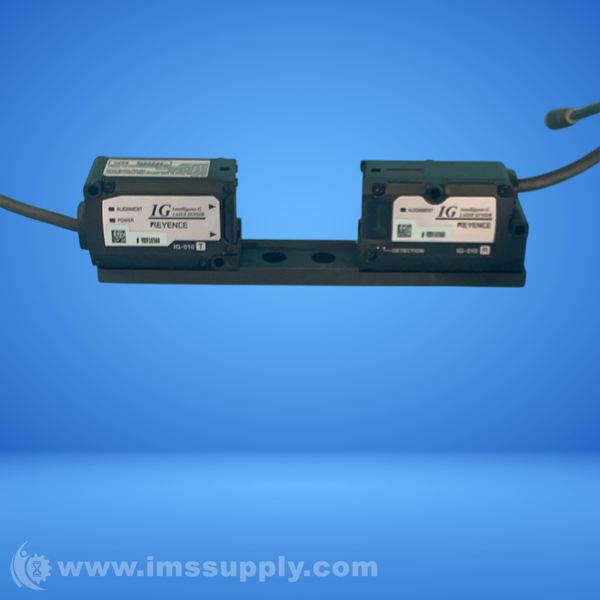

Keyence IG-010 Multi-Purpose CCD Laser Micrometer
Multi-Purpose CCD Laser Micrometer
Specifications
- Operation principle: CCD method
- Light source: 660 nm (Visible light semiconductor laser)
- FDA: Class 1*1
- IEC/JIS: Class 1
- Mounting distance: 0 to 1000 mm 39.37"
- Measurement range: 10 mm 0.39"
- Sampling cycle: 980 µs (When the number of times for averaging is set to [hsp]: 490 µs)
- Minimum detectable object: ø0.1 mm ø0.003" (Setting distance: 100 mm 3.94")*2, ø0.2 mm ø0.007" (Setting distance: 40 mm 1.57" or less), ø0.5 mm ø0.02" (Setting distance: 500 mm 19.68")*2
- Repeatability: 5 µm 0.20 Mil (Setting distance: 100 mm 3.94"), 10 µm 0.39 Mil (Setting distance: 500 mm 19.68"), 80 µm 3.15 Mil (Setting distance: 1,000 mm 39.37")*3
- Linearity: ±0.28 % of F.S. (±28 µm ±1.10 Mil)*4
- Temperature characteristics: ±0.03 % of F.S./°C (±3 µm ±0.12 Mil/°C)*5
- Operation indicator: Transmitter: Optical axis alignment indicator: Green LED, Power indicator: Green LED, Receiver: Optical axis alignment indicator: Green LED, Position monitor: Dual bar LED (Red, Green)
- Environmental resistance: Enclosure rating: IP67, Ambient light: Incandescent lamp: 5,000 lux, Sunlight: 5,000 lux*6, Ambient temperature: -10 to +45 °C 14 to 113 °F (No freezing), Relative humidity: 35 to 85 % RH (No condensation), Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
- Material: Case: Zinc die-cast (Lower case), PBT (Upper case), Polyarylate (PAR) (Display part), SUS304 (Metallic part), Lens cover: Glass, Cable: PVC

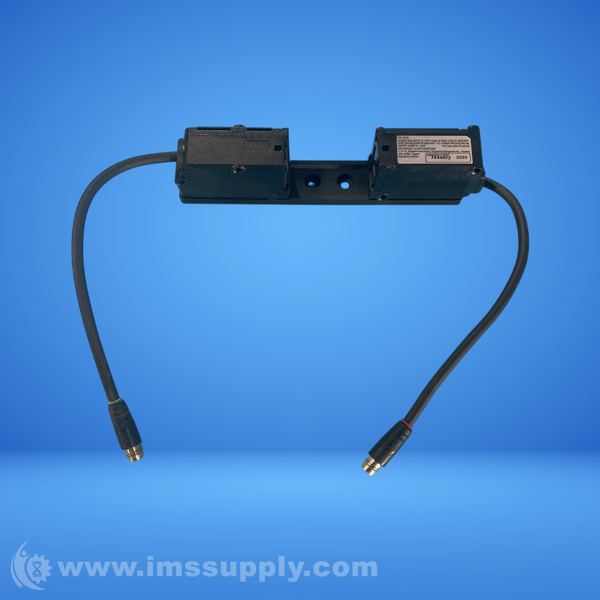

- Accessories: Transmitter × 1, Receiver × 1, Sensor head cables (2 m 6.56') × 2
- Weight: Approx. 380 g (including supplied items)
- Sensor Type: Sensor Head
- Output Type: Digital
- Wavelength: 660nm

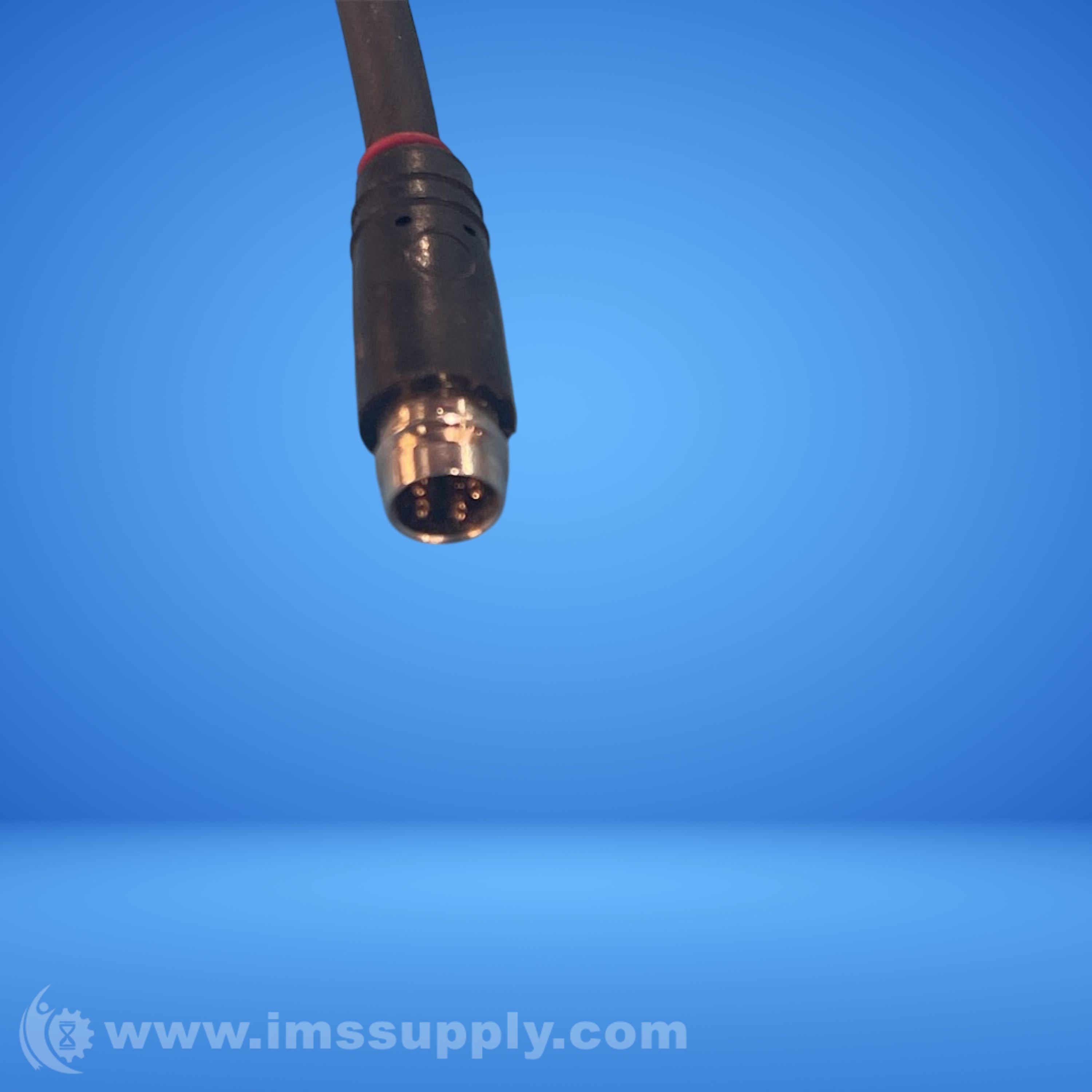

- Connection: 4-Pin M8
New - Missing Box (Special):
Transmitter only.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
