KEYENCE IG-028 MULTI-PURPOSE CCD LASER MICROMETER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: IG-028
IMS Product Code: 1843341
Packaging: Sold Individually
Description:
Keyence IG-028 Multi-Purpose CCD Laser Micrometer

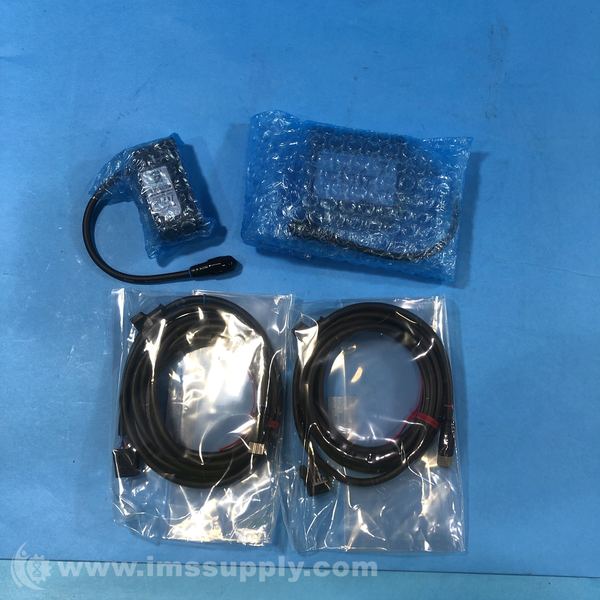

Multi-Purpose CCD Laser Micrometer sensor head with 28 mm measurement range and IP67 enclosure rating. Includes transmitter, receiver, and 2 m sensor head cables.
Specifications
- Operation principle: CCD method
- Light source: Wavelength
- FDA: Class 1
- IEC/JIS: Class 1
- Mounting distance: 0 to 1500 mm
- Measurement range: 28 mm
- Sampling cycle: 980 µs
- Minimum detectable object: ø0.1 mm (High sensitivity mode)
- Repeatability: 5 µm (at 100 mm setting distance)
- Linearity: ±0.1 % of F.S.
- Temperature characteristics: ±0.01 % of F.S./°C
- Material: Zinc die-cast, PBT, Polyarylate, SUS304, Glass, PVC
- Environmental resistance: IP67, 35 to 85 % RH
- Accessories: Transmitter × 1, Receiver × 1, Sensor head cables (2 m) × 2
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 7 In Stock
Ships today if ordered in the next 12 hours and 52 minutes.
