KEYENCE IG-1000 AMPLIFIER UNIT, DIN RAIL TYPE
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: IG-1000
IMS Product Code: 1995816
Packaging: Sold Individually
Description:

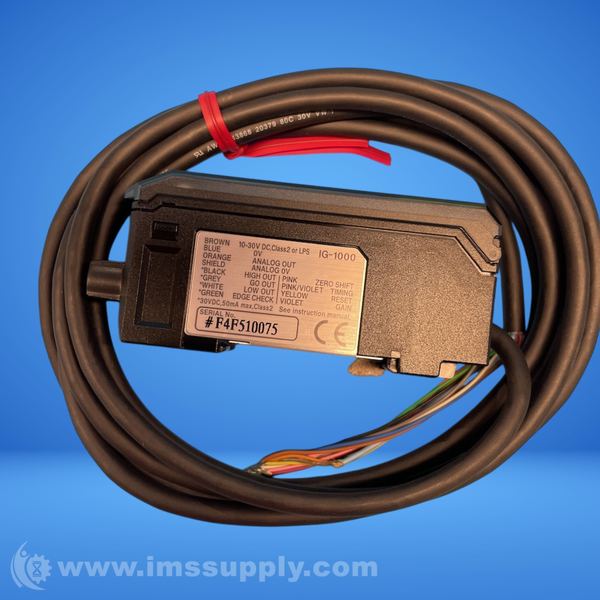

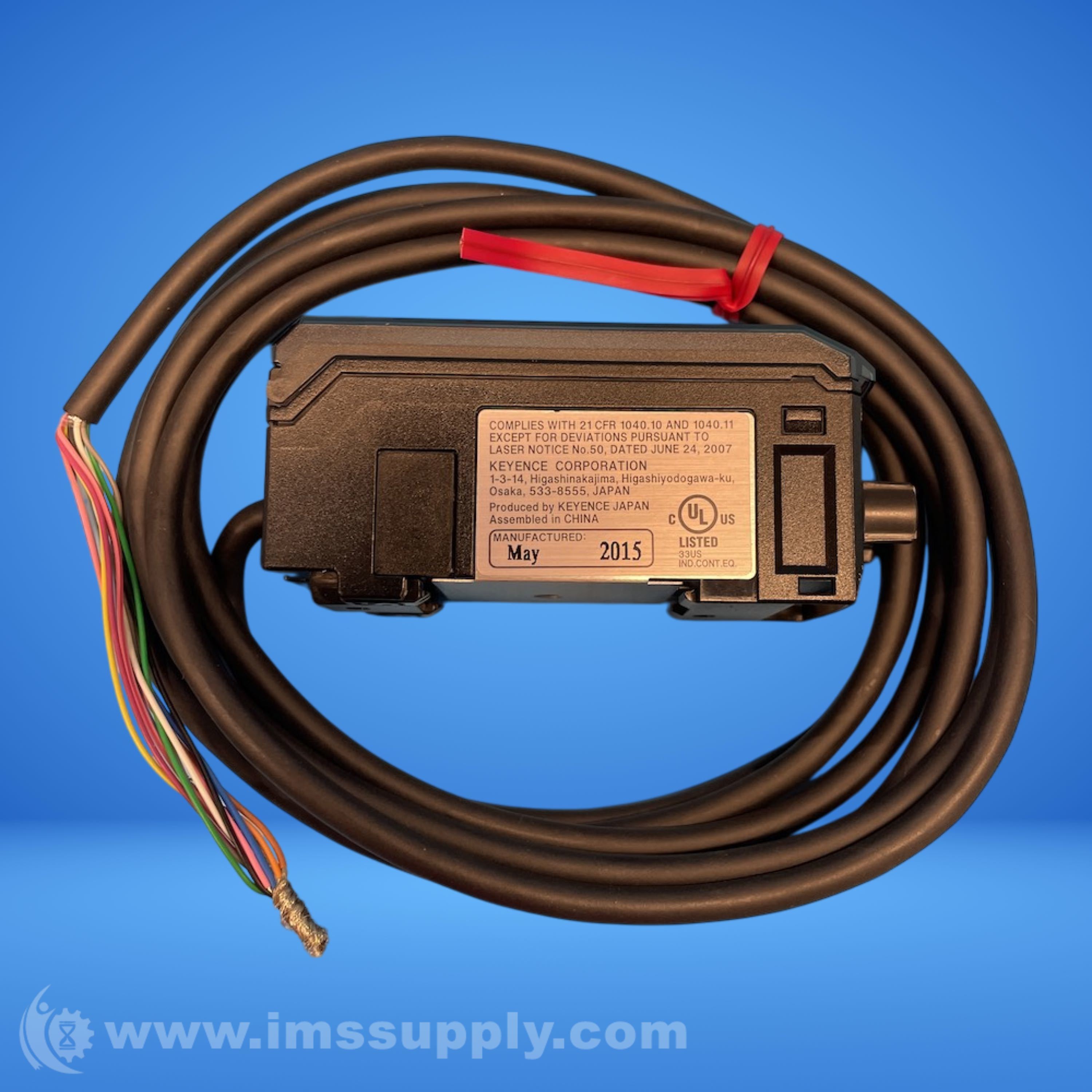

Keyence IG-1000 Amplifier Unit, DIN Rail Type
Multi-Purpose CCD Laser Micrometer Amplifier Unit
Specifications
- Type: DIN rail mount
- Main unit/Expansion unit: Main unit
- Analog output: Yes
- Power consumption (including analog current output) Normal: 2700 mW or less (at 30 V: 90 mA or less)
- Power saving function (HALF): 2300 mW (at 30 V: 77 mA or less)
- Power saving function (ALL): 2200 mW (at 30 V: 74 mA or less)
- Digital display method: Dual 7-seg display Upper level: Red, 5 digits Lower level: Green, 5 digits
- Display range: -99.999 to +99.999, -99.99 to +99.99, -99.9 to +99.9, -99 to +99 (selectable)
- Display resolution: 1 µm 0.04 Mil, 10 µm 0.39 Mil, 100 µm 3.94 Mil, 1,000 µm 39.37 Mil (selectable)
- Output Judgement output (selectable between NPN and PNP): NPN (PNP) open collector x3ch, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less, N.O./N.C. selectable Max. 50 mA/ch
- Response time (judgement output): 1.96 to 4031.72 ms
- Edge check output (selectable between NPN and PNP): NPN (PNP) open collector x1ch, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less, N.O./N.C. selectable Max. 50 mA
- Voltage output Output range: ±5 V (full scale 10 V)
- Output resistance: 100 O
- Repetition accuracy: ±1 mV
- Display accuracy: ±0.05% of F.S.
- Temperature characteristics: ±0.005% of F.S./°C
- Update cycle: Same as sensor head sampling cycle
- Time constant: 10 µs (90 % response)
- Current output Output range: 4-20 mA (full scale 16 mA)
- Maximum load resistance: 350 O
- Input Gain input: Input time: 20 ms or more, Response delay time: 120 ms or less (Nonvolatile memory (EEPROM) 1.5 s or less)
- Reset input: Input time: 20 ms or more, Response delay time: 20 ms or less
- Timing input: Input time: 2 ms or more, Response delay time: 2 ms or less
- Zero shift input: Input time: 20 ms or more, Response delay time: 20 ms or less
- Bank A input/Bank B input: Input time: 20 ms or more, Response delay time: 20 ms or less
- Laser emission stop input: Input time: 2 ms or more, Response delay time: 2 ms or less
- Rating Power voltage: 10 to 30 VDC, including Ripple (P-P) 10 %, Class 2 or LPS
- Environmental resistance Pollution degree: 2
- Ambient temperature: -10 to +50 °C 14 to 122 °F (No freezing)
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
- Material: Main unit case/Front sheet: Polycarbonate, Key top: Polyacetal, Cable: PVC
- Weight: Approx. 150 g (including supplied items)

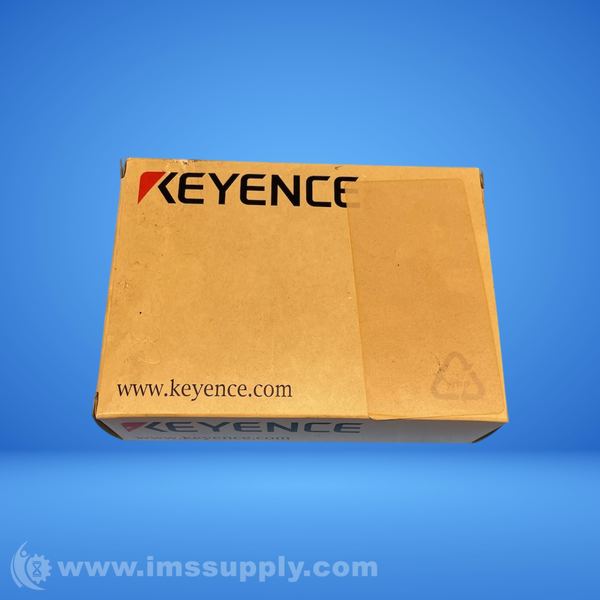

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
3 BLACK CORDS ATTACHED
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
