KEYENCE IV2-G30F VISION SENSOR AMPLIFIER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: IV2-G30F
IMS Product Code: 2140925
Packaging: Sold Individually
Description:

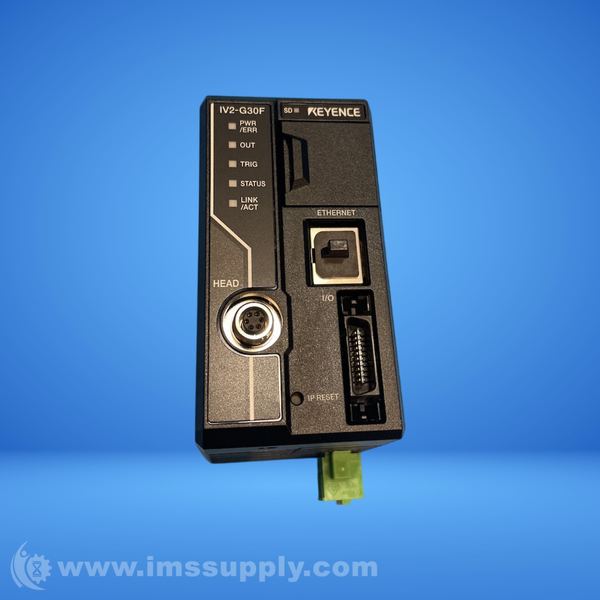

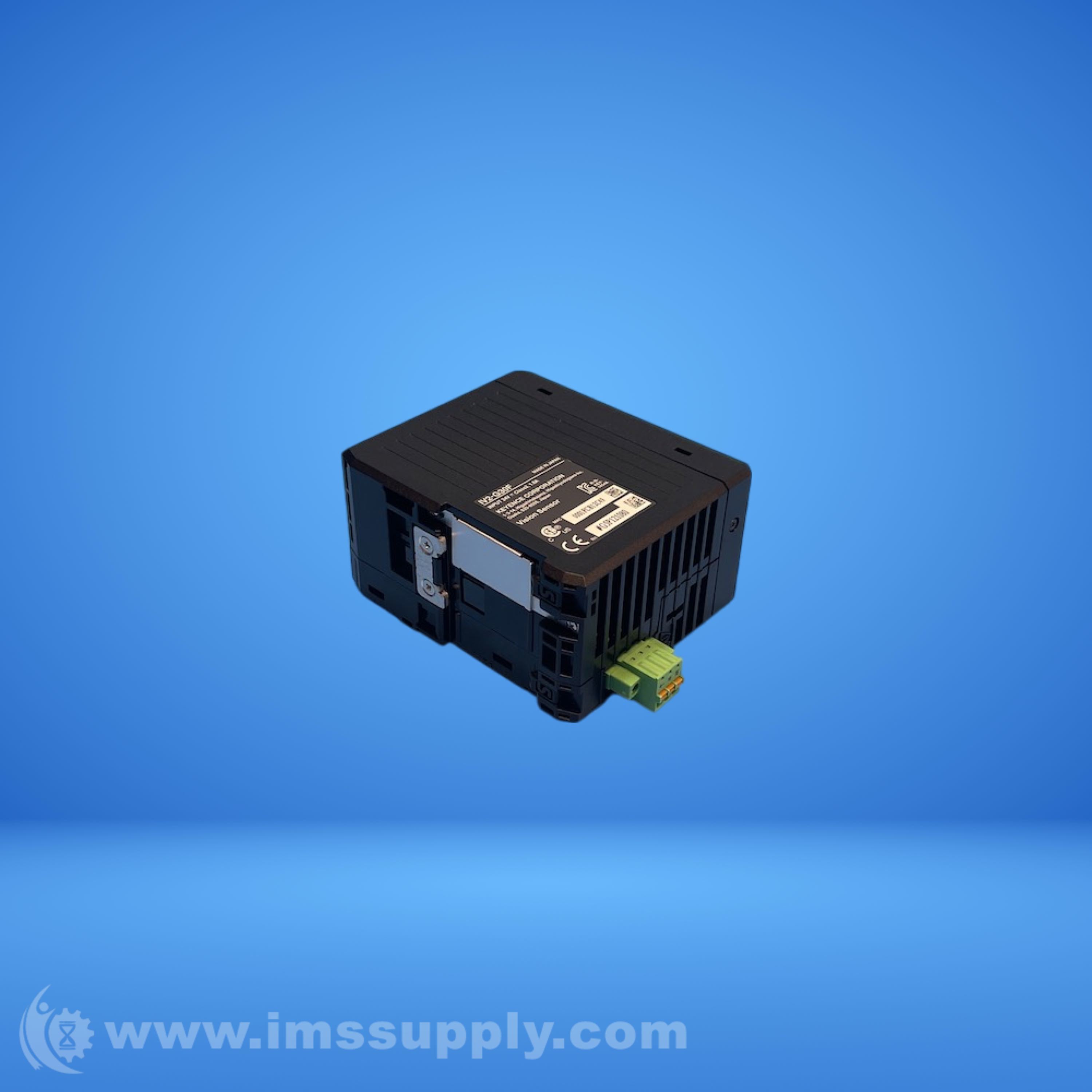

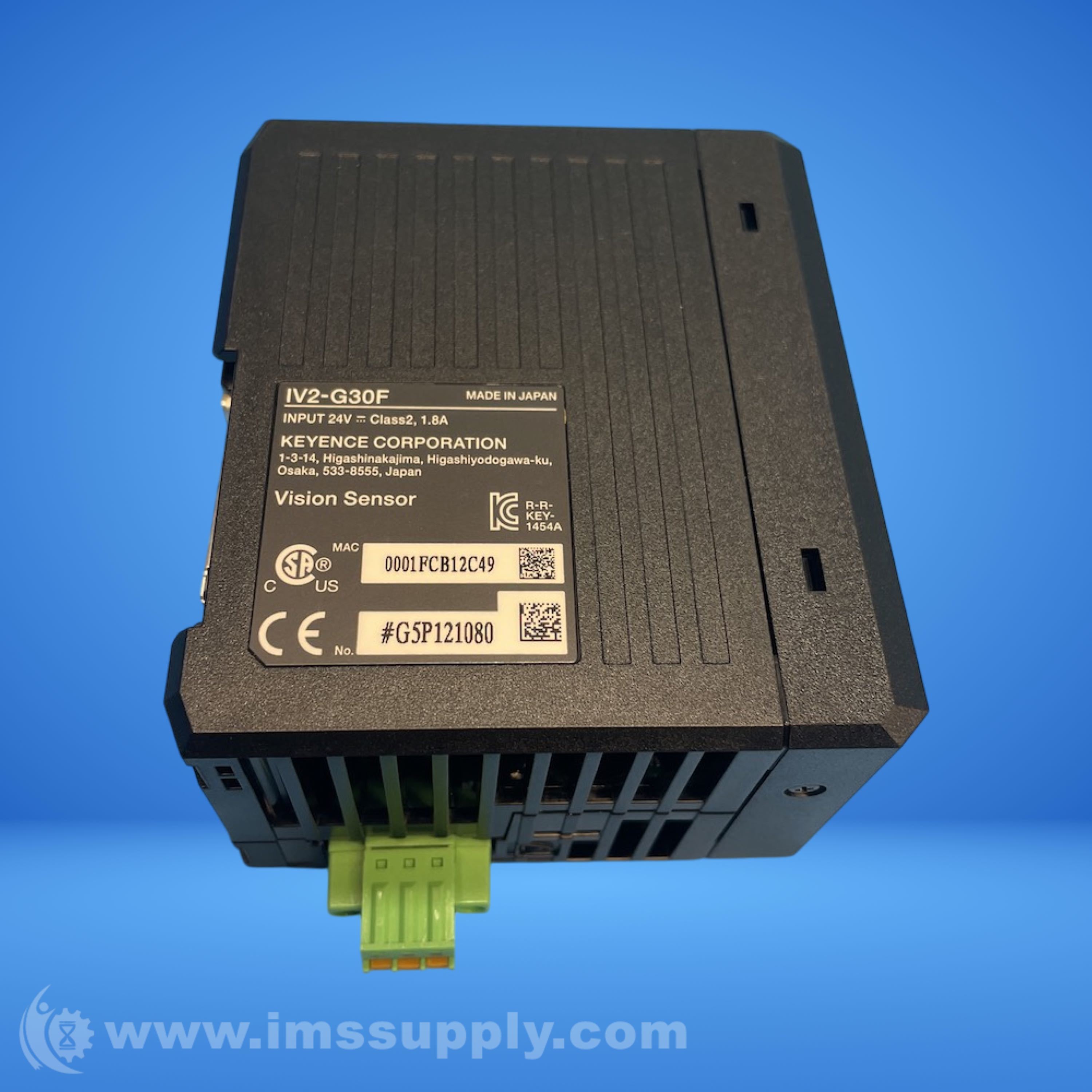

Keyence IV2-G30F Vision Sensor Amplifier
Vision sensor amplifier with built-in AI, supporting learning and standard modes. Offers advanced image processing for precise detection and integrates into automation systems for applications like quality inspection and material handling.
Specifications
- type: Vision Sensor Amplifier
- imaging range: Standard field of view with autofocus
- output types: NPN/PNP, Ethernet
- focus adjustment: Autofocus
- interface: Ethernet (TCP/IP), USB (for configuration)
- power supply: 24V DC
- protection rating: IP67
- operating temperature: 0°C to 50°C
- material: Main unit case: PC, Power connector: PA/POM, I/O connector: PA, Sensor head connector: Zinc + Ni plating/PA, Ethernet connector: Copper alloy + Ni plating, Main unit rear heat sink: Aluminum, Main unit rear DIN rail fixing tab: POM, Nameplate: PC
- weight: 330 g
- available modes: Learning mode / Standard mode
- standard mode built-in tools: Outline, Color area, Area, Edge pixels, Color average, Brightness average, Width, Diameter, Edge presence, Pitch, OCR, Color/brightness prohibit, Position adjustment, High-speed position adjustment
- number of tools: 16 detection tools, 1 position adjustment tool
- switch settings (programs): 128 programs (with SD card) / 32 programs (without SD card)
- number of storable images: 1000 images
- save conditions: NG only, NG and OK near threshold, All
- transfer destination: SD card, FTP server
- transfer format: bmp, jpeg, iv2p, txt
- indicators: PWR/ERR, OUT, TRIG, STATUS, LINK/ACT, SD
- input type: Non-voltage input / voltage input
- number of inputs: 8
- output type: Open collector output; NPN/PNP switchable
- number of outputs: 8
- network function: FTP client, SNTP client
- expanded memory: SD card (SD/SDHC)
- voltage: 24 VDC ±10%
- current consumption: 1.8 A or less
- ambient temperature: 0 to +50°C
- relative humidity: 35 to 85% RH

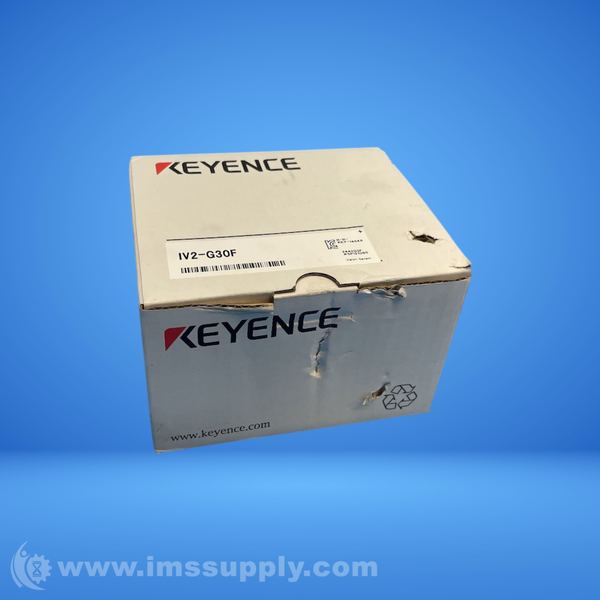

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
