KEYENCE KV-24DT DC TYPE PROGRAMMABLE LOGIC CONTROLLER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: KV-24DT
IMS Product Code: 2121963
Packaging: Sold Individually
Description:

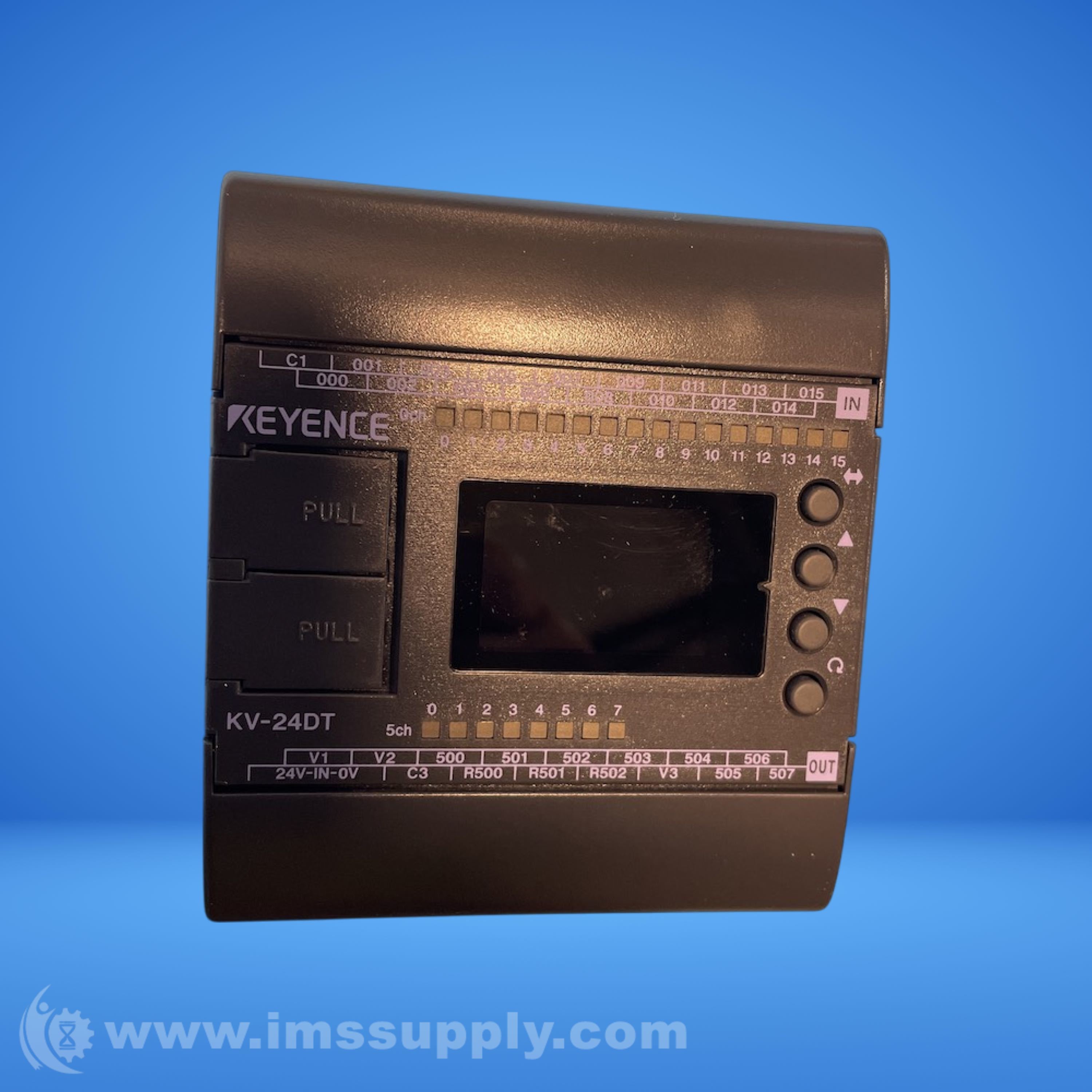

Keyence KV-24DT DC Type Programmable Logic Controller
DC type programmable logic controller base unit with 16 inputs and 8 transistor (sink) outputs. Part of the Visual KV Series.
Specifications
- Type: DC type programmable logic controller
- Input Power Supply Voltage: 24 VDC (+10%, -20%)
- Internal Current Consumption: 100 mA or less
- Operating Temperature Range: 0 to 50 degrees C
- Operating Ambient Humidity: 35 to 85% RH
- Ambient Temperature for Storage: -20 to 70 degrees C
- Withstand Voltage: 1500 VAC for 1 minute
- Noise Resistance: 1500 Vp-p or more
- Shock Resistance: 150 m/s^2
- Weight: 210 g
- Insulation Resistance: 50 Mohm or more
- Vibration Resistance: Conforms to JIS C 0041
- Series: Visual KV Series
- Inputs: 16
- Outputs: 8 transistors (sink)
- Assembled In: China
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 44 minutes.
