KEYENCE LK-2011 LASER DISPLACEMENT SENSOR CONTROLLER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LK-2011
IMS Product Code: 1913162
Packaging: Sold Individually
Description:

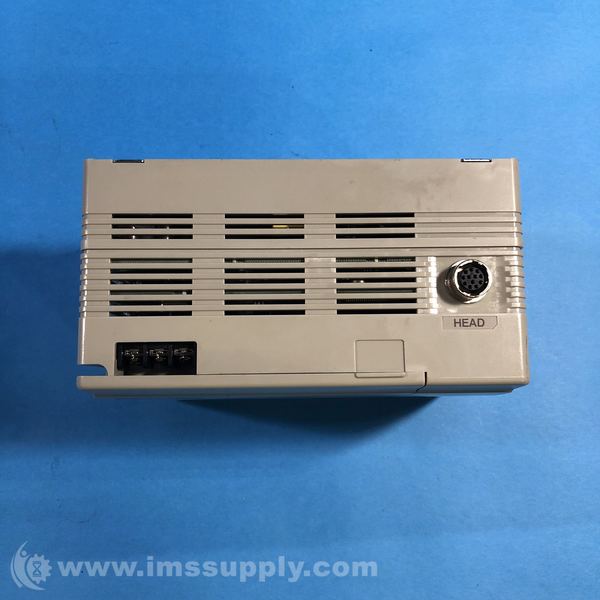

Keyence LK-2011 Laser Displacement Sensor Controller
High-precision controller for laser displacement sensing
Specifications
- Measurement Mode: -
- Reference Distance: 30 mm 1.18"
- Measuring Range: ±5 mm ±0.20"
- Light Source Type: Visible red semiconductor laser
- Wavelength: 670 nm
- Output: 0.95 mW
- Laser Class: FDA (CDRH) 21CFR Part 1040.10 Class 2 Laser Product IEC 60825-1
- Spot Diameter (at standard distance): Approx. 30 µm 0.001181" Approx. 30 × 850 µm
- Linearity: ±0.1% of F.S. *1
- Repeatability: 1 µm *2 0.000040"
- Analog Output Voltage Output: ±5 V (1 µm 0.000040"/mV) *3
- Impedance: 100 O
- Current Output: 4 to 20 mA (Applicable load: 350 Omax.)
- Alarm Output: NPN: 100 mA max. (40 V max.) (N.C.), Residual voltage: 1 V max.
- Sampling Cycle: 512 µs
- Temperature Characteristics: 0.01% of F.S./degrees C
- Rating Power Voltage: 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Maximum Current Consumption: 400 mA max.
- Environmental Resistance Enclosure Rating: IP67
- Ambient Light: Incandescent or fluorescent lamp: 10,000 lux max.
- Ambient Temperature: 0 to +50 degrees C 32 to 122 degrees F (No condensation)
- Relative Humidity: 35 to 85 % RH (No condensation)
- Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
- Material: Polycarbonate
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 15 hours and 29 minutes.
