KEYENCE LR-W70C SELF-CONTAINED FULL-SPECTRUM SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LR-W70C
IMS Product Code: 2145659
Packaging: Sold Individually
Description:

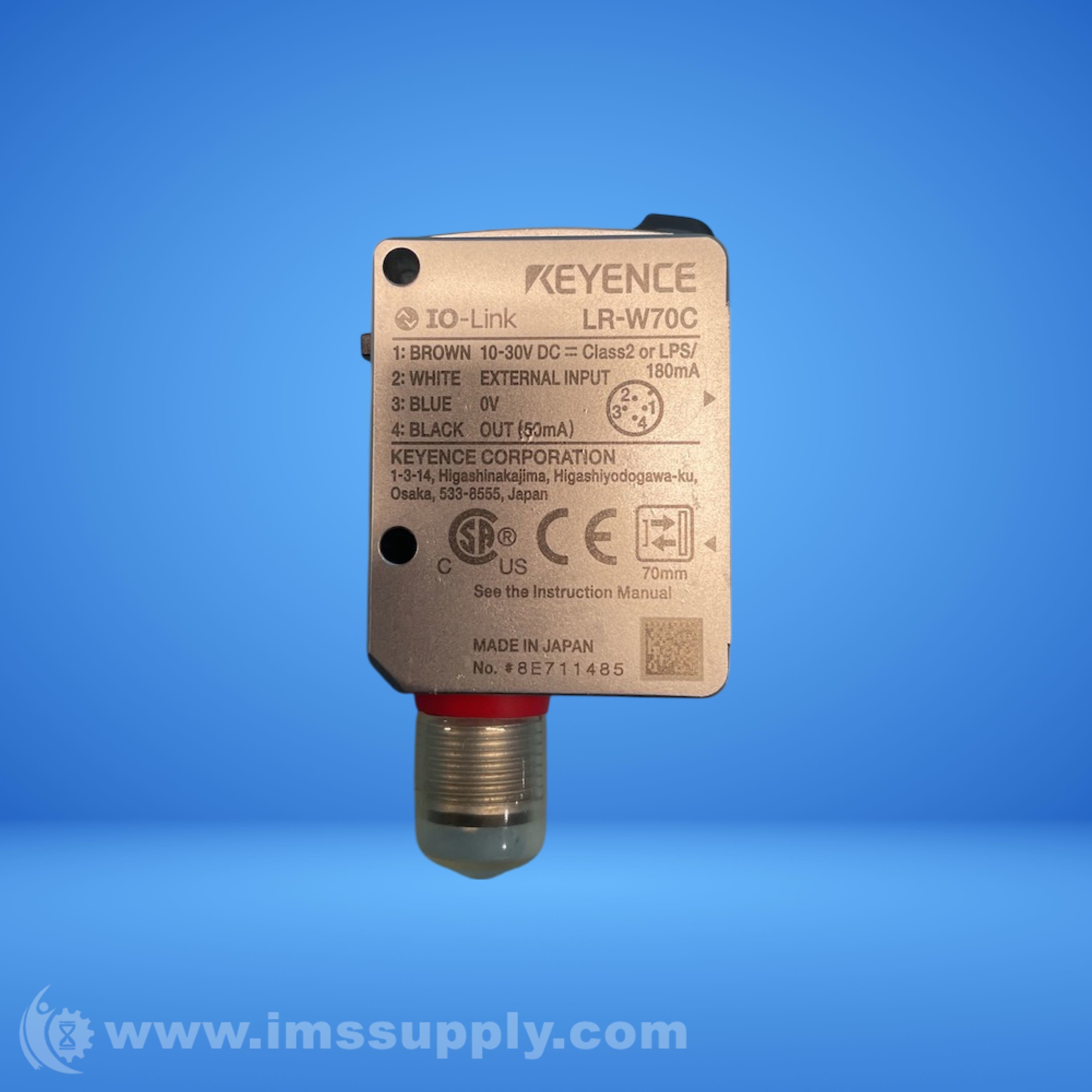

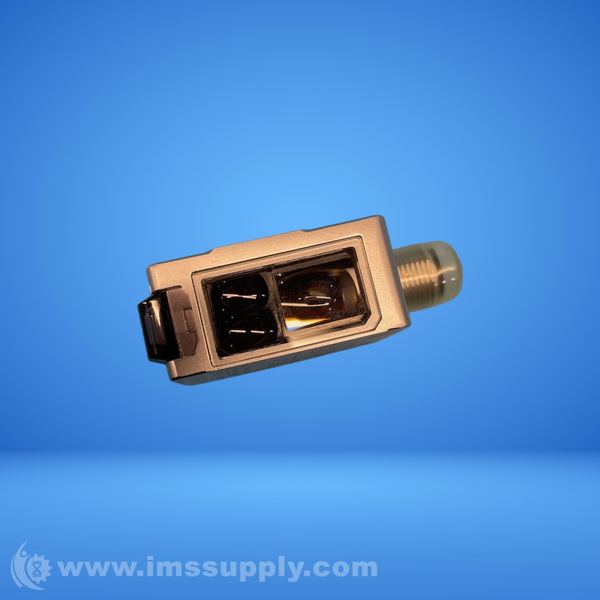

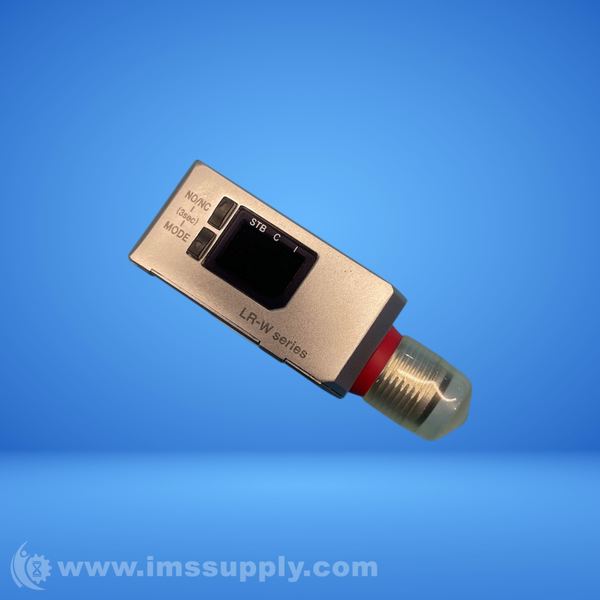

Keyence LR-W70C Self-Contained Full-Spectrum Sensor
Small/Dual Spot Type M12 connector 4-pin type photoelectric sensor with white LED light source and 30-70 mm detecting range.
Specifications
- Detecting Distance: 30 to 70 mm
- Min. Spot Diameter: Approx. 1.6 x 2.9 mm at 50 mm
- Light Source: White LED
- Response Time: 200 µs to 999 ms selectable
- I/O: NPN/PNP open collector selectable
- Power Supply: 10 to 30 VDC
- Current Consumption: 60 mA or less at 24 VDC
- Material: Zinc die cast, PPSU, PES, PMMA
- Environmental Resistance: IP65/IP67
- Operating Temperature: -20 to +50 degrees C
