KEYENCE LS-3100 LASER SCAN DIAMETER CONTROLLER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LS-3100
IMS Product Code: 1875836
Packaging: Sold Individually
Description:

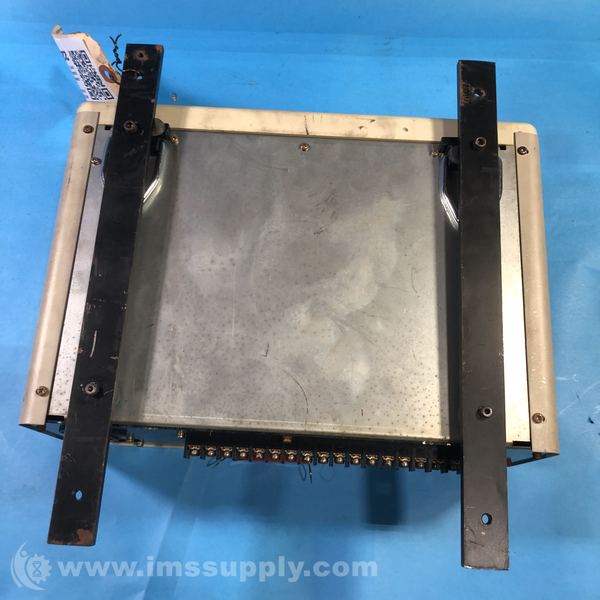

Keyence LS-3100 Laser Scan Diameter Controller
Standard controller for laser scan diameter measurement
Specifications
- Display: Position monitor
- Measurement display: Main display: 7-segment green LED, 8-digit sub display: 16-character LCD × 2 rows (backlight color: yellowish green)
- Minimum display unit: 0.1 µm
- Display range: -999.9999 to 9,999.9999
- Tolerance check output display: Green LED x 3 (HI/GO/LO)
- Laser emission indicator: Green LED x 2 (HEAD 1/HEAD 2)
- Terminal block I/O: Analog voltage
- Control output: SPST-NO Relay contact 250 VAC 2 A (resistive load)
- Control input: Non-voltage input (contact/solid state)
- Interface: RS-232C, GP-IB, BCD
- Measurement data output and control output: RS-232C (baud rate: selectable between 75 and 19,200 bps)
- Power voltage: 85 to 264 VAC, 50/60 Hz
- Power consumption: 40 VA or less
- Environmental resistance: Enclosure rating: IP60
- Ambient temperature: 0 to +40 degrees C
- Relative humidity: 35 to 85 % RH (No condensation)
- Weight: Approx. 4.6 kg
- Country of Origin: Japan
Used (Special):
Mounting brackets attached.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 57 minutes.
