KEYENCE LV-11SAP AMPLIFIER UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LV-11SAP
IMS Product Code: 1823708
Packaging: Sold Individually
Description:

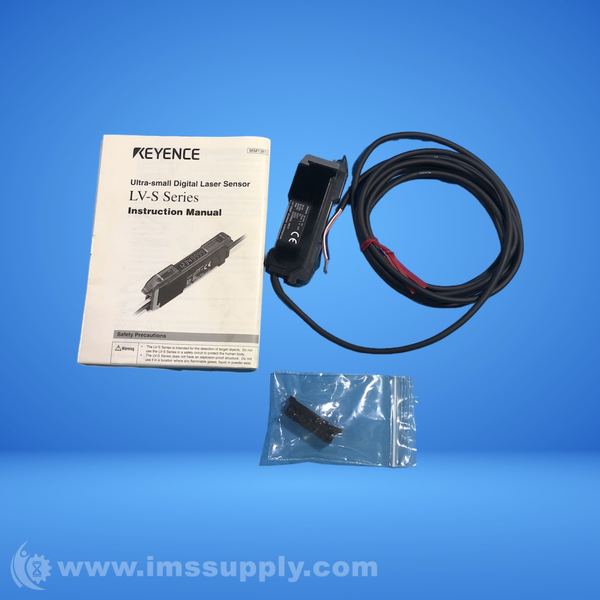

Keyence LV-11SAP Amplifier Unit
Ultra-small Digital Laser Sensor Amplifier Unit
Specifications
- type: Main unit
- control output: PNP open-collector x 2 channels, 30 VDC maximum, 100 mA or less per output
- response time: 4 ms, 2 ms, 500 µs, 250 µs, 80 µs
- control input: Light emission stop input, external calibration, set value bank selection input, or received light intensity shift input
- number of interference prevention units: ULTRA: 4, SUPER/TURBO: 2, FINE/HSP: 0
- unit expansion: Up to 16 expansion units can be connected (a total of 17 units)
- power voltage: 12 to 24 VDC, Ripple (P-P) 10 % or less, Class2
- power consumption: Normal: 1.5 W or less (62.5 mA or less at 24 V), Eco-Half/Eco-All: 1.35 W or less (57.3 mA or less at 24 V)
- ambient temperature: -10 to +55 degrees C (No freezing)
- vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z axis
- material: Main body, cover: Polycarbonate
- weight: Approx. 80 g (including 2 m cable)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 4 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 4 minutes.
