KEYENCE LV-11SB DIGITAL LASER SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LV-11SB
IMS Product Code: 2065999
Packaging: Sold Individually
Description:

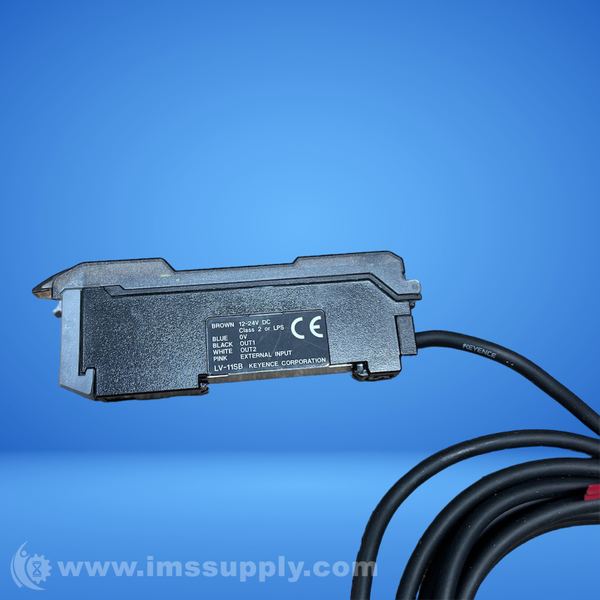

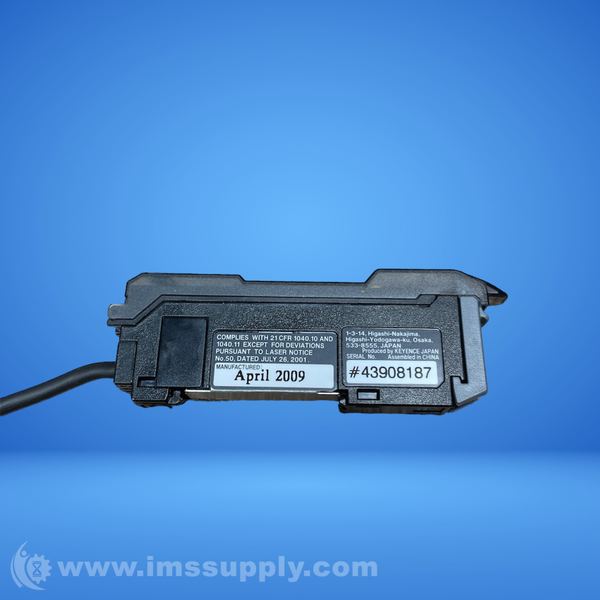

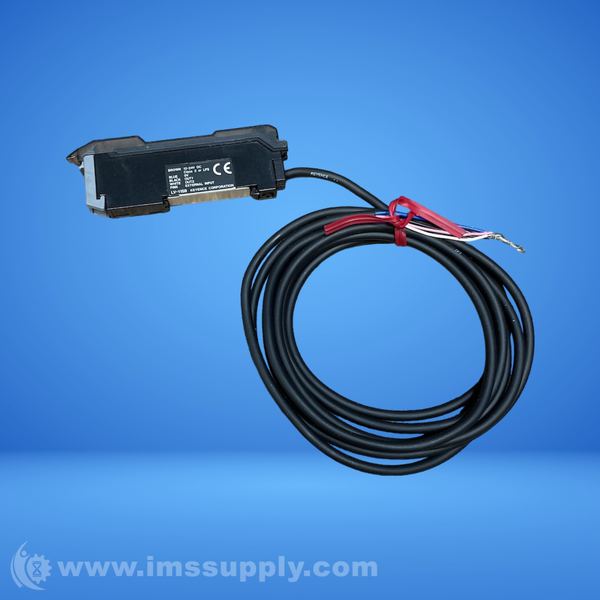

Keyence LV-11SB Digital Laser Sensor
Ultra-small digital laser sensor amplifier unit, main unit, NPN output
Specifications
- Type: Main unit
- Output: NPN
- Control output: NPN open-collector x 2 ch, 40 VDC max., 100 mA max. per output
- Response time: Various modes (ULTRA: 4 ms, SUPER: 2 ms, TURBO: 500 µs, FINE: 250 µs, HSP: 80 µs)
- Control input: Light emission stop, external calibration, set value bank selection, or shift input
- Unit expansion: Up to 16 expansion units (17 total including main unit)
- Power voltage: 12-24 VDC, Ripple (P-P) 10% max., Class 2
- Power consumption: Normal: 1.7 W max. (70 mA max. at 24 V)
- Ambient temperature: -10 to +55°C (no freezing)
- Vibration resistance: 10-55 Hz, 1.5 mm double amplitude, 2 hours in X, Y, Z axes
- Material: Polycarbonate (main body and cover)
- Weight: Approximately 80 g (including 2 m cable)

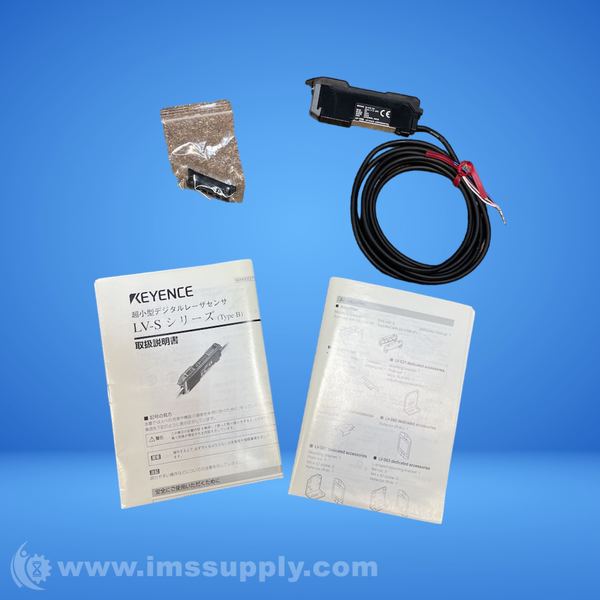

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 4 minutes.
