KEYENCE LV-11SBP AMPLIFIER UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LV-11SBP
IMS Product Code: 2121256
Packaging: Sold Individually
Description:

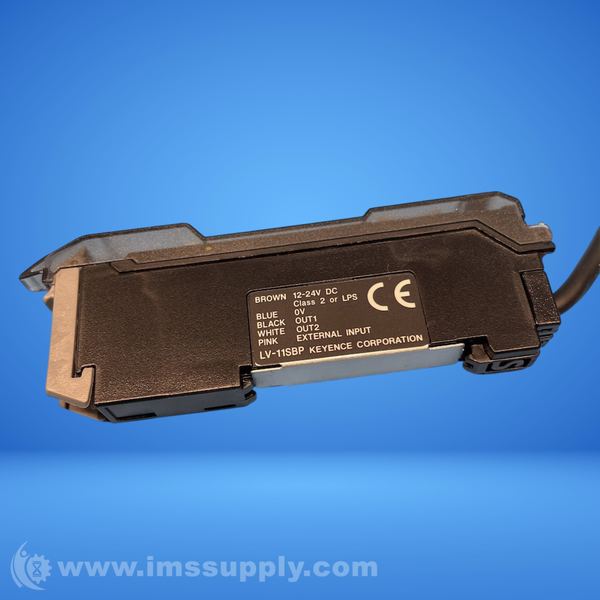

Keyence LV-11SBP Amplifier Unit
Ultra-small Digital Laser Sensor Amplifier Unit with PNP Output
Specifications
- Type: Main unit
- Output: PNP
- Control output: PNP open-collector x 2 ch 30 VDC max. 100 mA max. per output
- Response time: ExceptLV-S31 ULTRA: 4 ms, SUPER: 2 ms, TURBO: 500 µs, FINE: 250 µs, HSP: 80 µs, LV-S31standard mode: 500 µs, LV-S31standard mode SPED2: 2 ms, SPED3: 8 ms, SPED4: 32 ms, LV-S31High-speed mode: 250 µs
- Control input: Light emission stop input, external calibration, set value bank selection input, or shift input
- Number of interference prevention units: ULTRA: 4, SUPER: , TURBO: 2, FINE: , HSP: 0
- Unit expansion: Up to 16 expansion units can be installed (17 units including the main unit)
- Power voltage: 12 to 24 VDC, Ripple (P-P) 10 % or less, Class2
- Power consumption: Normal: 1.7 W max. (70 mA max. for 24 V), Eco-Half Eco-All: 1.55 W max. (65 mA max. for 24 V)
- Ambient temperature: -10 to +55 degrees Celsius (No freezing)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z axis
- Material: Main body, cover: Polycarbonate
- Weight: Approx. 80 g (including 2 m cable)
