KEYENCE LV-12SB LASER SENSOR AMPLIFIER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LV-12SB
IMS Product Code: 2122454
Packaging: Sold Individually
Description:

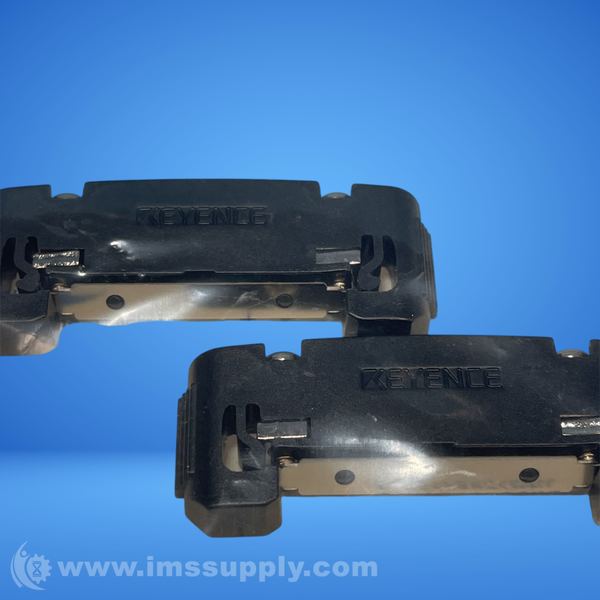

Keyence LV-12SB Laser Sensor Amplifier
Ultra-small Digital Laser Sensor Amplifier Unit, Expansion Unit, NPN
Specifications
- Type: Expansion unit (1 line)
- Output: NPN

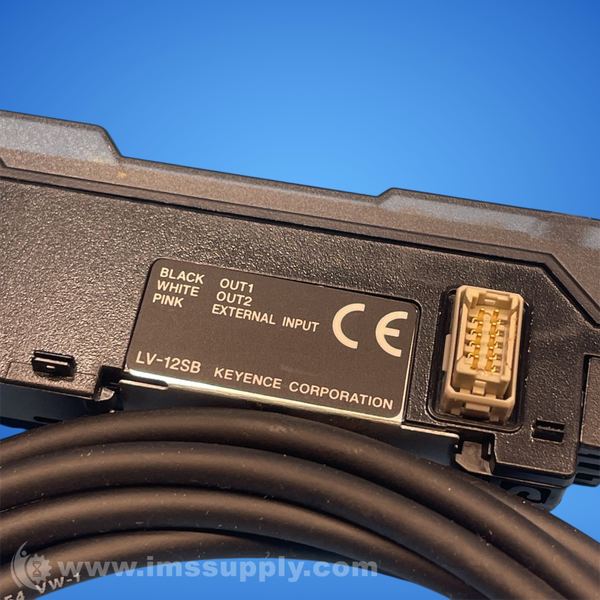

- Control output: NPN open-collector x 2 ch 40 VDC max. 100 mA max. per output
- Response time: ExceptLV-S31 ULTRA: 4 ms, SUPER: 2 ms, TURBO: 500 µs, FINE: 250 µs, HSP: 80 µs, LV-S31standard mode: 500 µs, LV-S31standard mode SPED2: 2 ms, SPED3: 8 ms, SPED4: 32 ms, LV-S31High-speed mode: 250 µs
- Control input: Light emission stop input, external calibration, set value bank selection input, or shift input
- Number of interference prevention units: ULTRA: 4, SUPER: , TURBO: 2, FINE: , HSP: 0
- Unit expansion: Up to 16 expansion units can be installed (17 units including the main unit)
- Power voltage: 12 to 24 VDC, Ripple (P-P) 10 % or less, Class2
- Power consumption: Normal: 1.7 W max. (70 mA max. for 24 V), Eco-Half Eco-All: 1.55 W max. (65 mA max. for 24 V)
- Ambient temperature: -10 to +55 °C 14 to 131 °F (No freezing)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
- Material: Main body, cover: Polycarbonate
- Weight: Approx. 80 g (including 2 m 6.6' cable)
- Series: LV-S Series
- Light source: Visible light semiconductor laser
- Power supply voltage: 12 to 24 VDC ripple (P-P) 10% max. Class 2
- Operating ambient temperature: -10 to +50°C

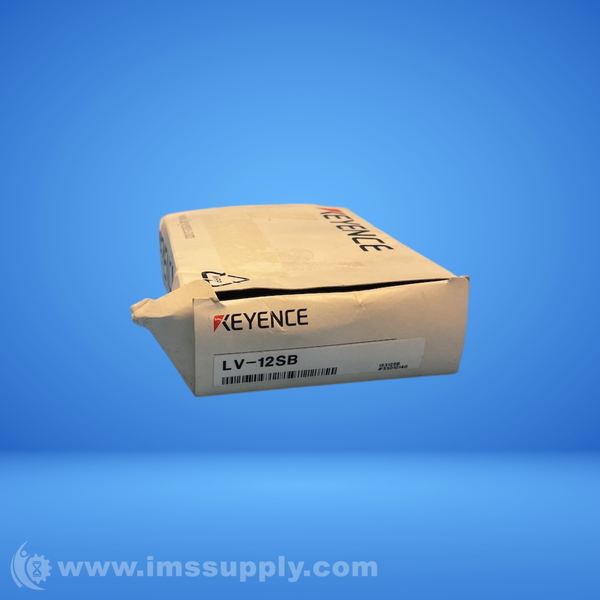

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
