More Views
KEYENCE LV-21AP DIGITAL LASER SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LV-21AP
IMS Product Code: 1823712
Packaging: Sold Individually
Description:
Keyence LV-21AP Digital Laser Sensor
Digital Laser Sensor Amplifier Unit
Specifications
- Type: PNP output
- Control Output: PNP open-collector x 2 channels, 30 VDC max., max. 100 mA, residual voltage (1.0 V max.)
- Response Speed: FINE: 80 �s, TURBO: 500 �s, SUPER TURBO: 4 ms
- Number of Interference Preventive Units: FINE: None, TURBO: 2 units, SUPER: 4 units
- Protection Circuit: Reversed polarity protection, over-current protection, surge absorber
- Unit Expansion: Up to 7 additional expansion units can be installed (8 units including the main unit)
- Power Voltage: 12 to 24 VDC, Ripple (P-P) 10% or less
- Power Consumption: 1.5 W max. (125 mA max. for 12 V, 62.5 mA max. for 24 V)
- Ambient Temperature: -10 to +55 degrees C (14 to 131 degrees F) (No freezing)
- Relative Humidity: 35 to 85% RH (No condensation)
- Material: Polycarbonate
- Weight: Approx. 75 g

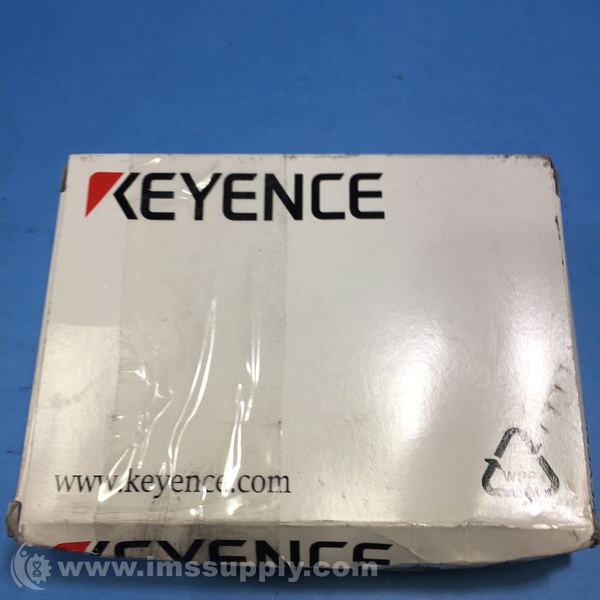

New - Missing Box (Special):
Missing the sensor and only the mounting hardware and cover.
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
