KEYENCE LV-N11CP LASER SENSOR AMPLIFIER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LV-N11CP
IMS Product Code: 1825244
Packaging: Sold Individually
Description:

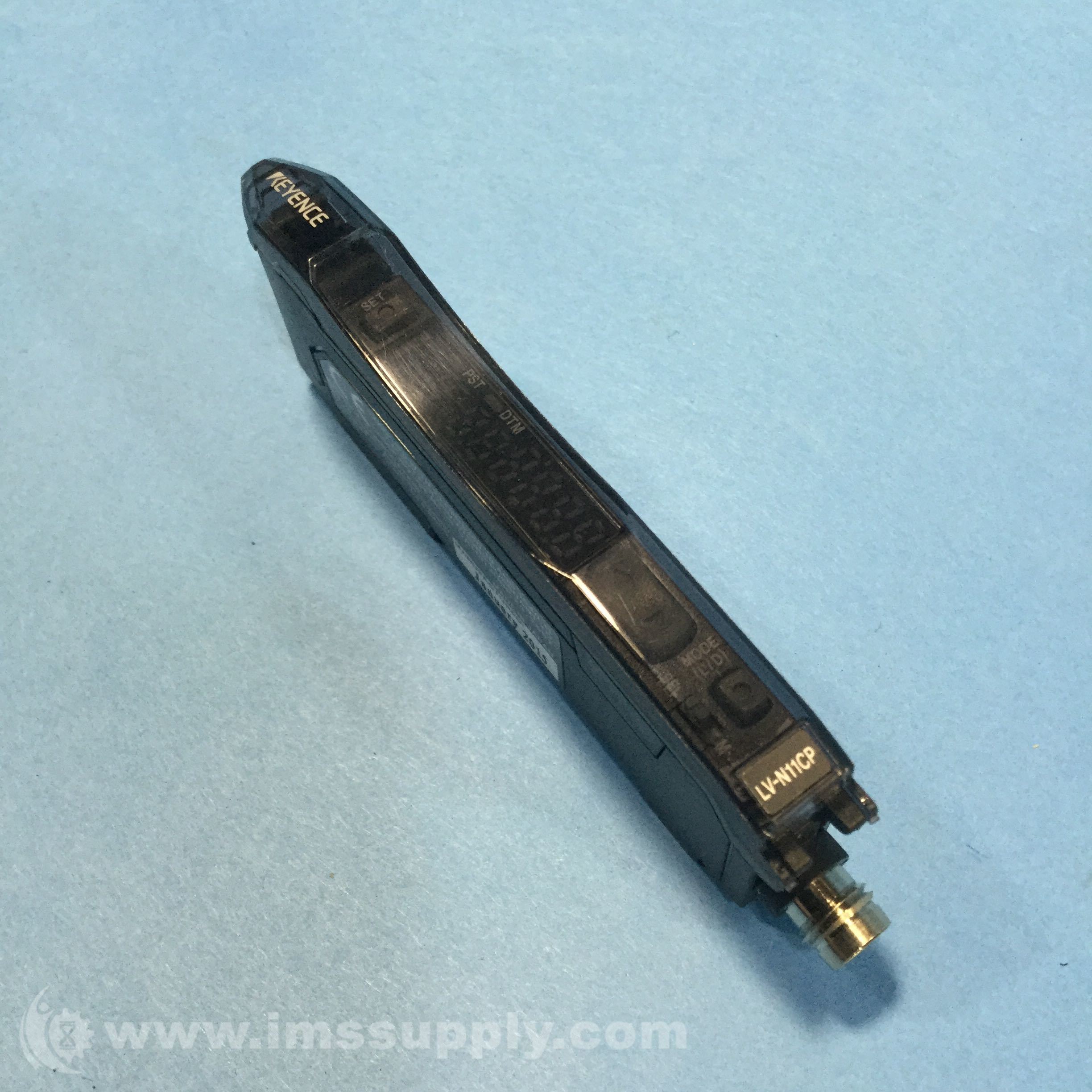

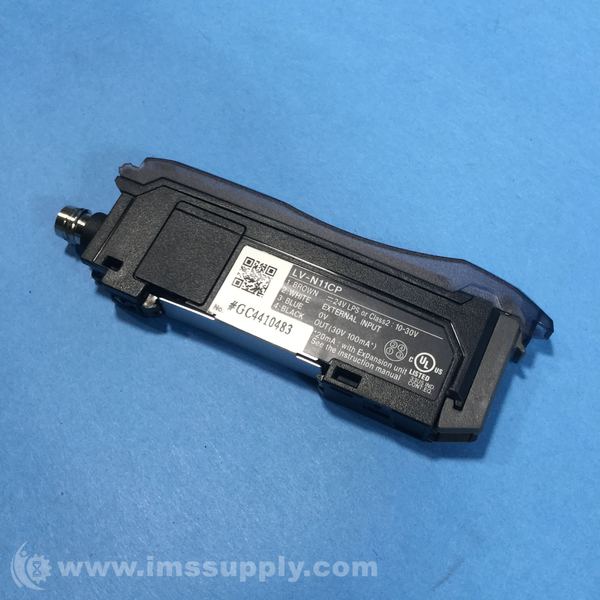

Keyence LV-N11CP Laser Sensor Amplifier
Keyence LV-N11CP is a digital laser sensor amplifier with PNP output and M8 connector. It features various response times and timer functions, with a compact design and environmental resistance.
Specifications
- Response time: 80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)
- Output: PNP
- Cable/connector: M8 connector
- Main/Expansion unit: Main unit
- Control outputs: 1 output
- External input: 1 input
- Output selection: LIGHT-ON/DARK-ON (switch-selectable)
- Timer function: Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer
- Control outputs: PNP open collector 30 V, Residual voltage 1.2 V or less (Output current: 10 mA or less) / 2.2 V or less (Output current: 10 to 100 mA)
- External input: Input time 2 ms (ON)/20 ms (OFF) or more
- Multiple connections to expansion units: Up to 17 units can be connected in total
- Protection circuit: Reverse polarity protection, Over-current protection, Surge absorber
- Number of interference prevention units: Connected to other than LV-S31: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER; 4 for ULTRA/MEGA
- Case size: H 32.6 mm × W 9.8 mm × L 78.7 mm
- Power voltage: 24 VDC (operating voltage 10-30 VDC), ripple (P-P) 10% or less, Class 2 or LPS
- Power consumption: Normal: 950 mW or less (at 30 V)
- Relative humidity: 35 to 85% RH (No condensation)
- Vibration resistance: 10 to 55 Hz, double amplitude: 1.5 mm, 2 hours each in the X, Y and Z axis
- Shock resistance: 500 m/s2 3 times for each of X,Y and Z axis
- Ambient temperature: -20 to +55°C (No freezing)
- Cable material: PVC
- Case material: Polycarbonate
- Weight: Approx. 20 g

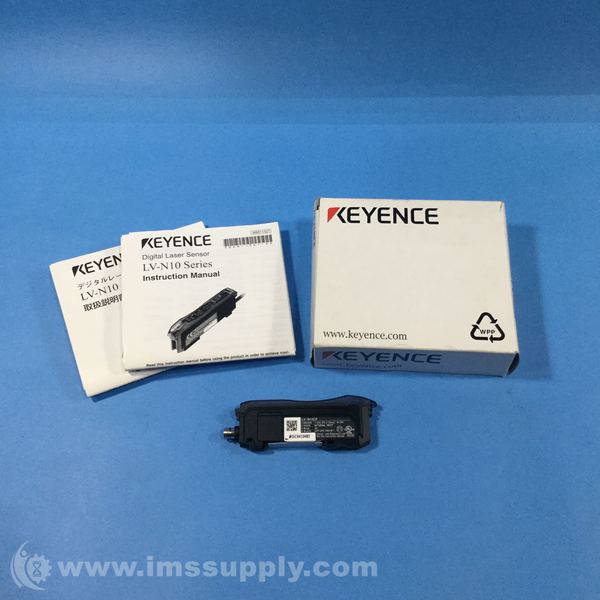

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 45 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 45 minutes.
