KEYENCE LV-N12P DIGITAL LASER SENSOR AMPLIFIER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: LV-N12P
IMS Product Code: 2152617
Packaging: Sold Individually
Description:

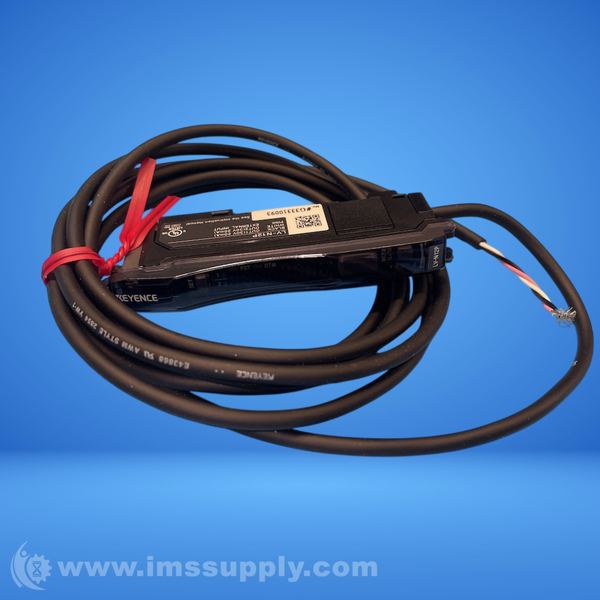

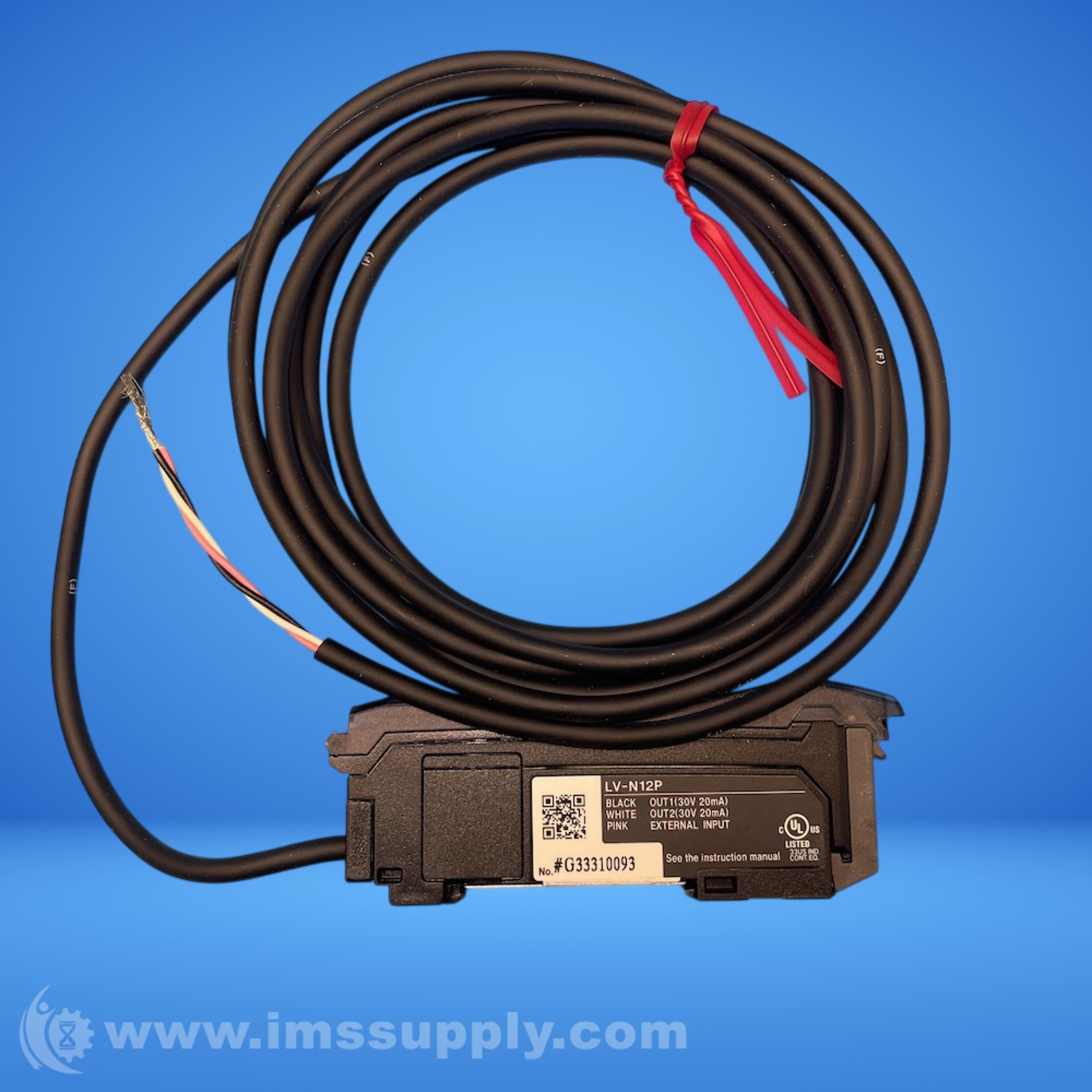

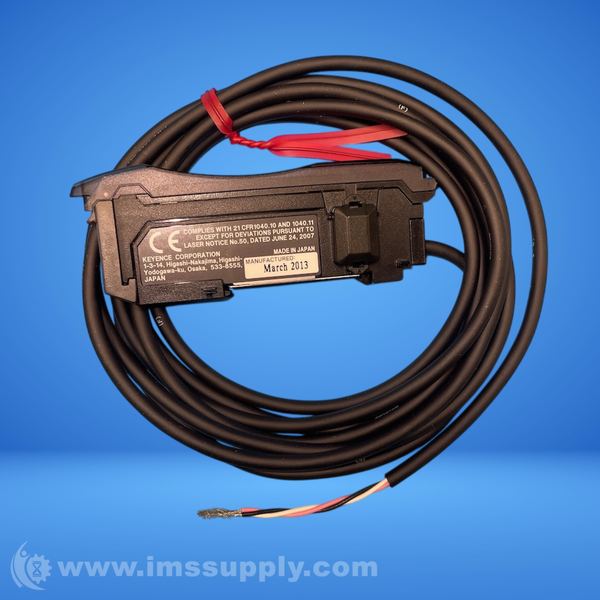

Keyence LV-N12P Digital Laser Sensor Amplifier
Multi-Purpose Digital Laser Sensor, Amplifier, Cable, Expansion unit, PNP
Specifications
- Type: 2 output
- Output: PNP
- Cable/connector: Cable
- Main/Expansion unit: Expansion unit
- Control outputs: 2 output
- External input: 1 input
- Monitor output: None
- Output selection: LIGHT-ON/DARK-ON (switch-selectable)
- Timer function: Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer, Timer duration selectable: 1 ms to 9,999 ms, Maximum error against the setting value: ±10% max.
- Control outputs specification: PNP open collector 30 V, Residual voltage 1.2 V or less (Output current: 10 mA or less) / 2.2 V or less (Output current: 10 to 100 mA) (Stand-alone) 1 output max: 100 mA or less, 2 output total: 100 mA or less (Multiple connections) 1 output max: 20 mA or less
- Response time: 80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)
- External input specification: Input time 2 ms (ON)/20 ms (OFF) or more
- Number of interference prevention units: Connected to other than LV-S31: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER; 4 for ULTRA/MEGA, Connected to LV-S31: 2 for FINE; 4 for TURBO/SUPER/ULTRA/MEGA
- Case size: H 32.6 mm 1.28" × W 9.8 mm 0.39" × L 78.7 mm 3.1"
- Unit expansion: Up to 17 units can be connected in total (two-output type is treated as two units)
- Protection circuit: Reverse polarity protection, Over-current protection, Surge absorber
- Power voltage: 24 VDC (operating voltage 10 to 30 VDC (with ripple)), Ripple (P-P) 10 % or less, Class 2 or LPS
- Power consumption: Normal: 950 mW or less (at 30 V. 33 mA at 24 V, 60 mA or less at 12 V) Eco on mode: 815 mW or less (at 30 V. 29 mA at 24 V, 52 mA or less at 12 V) Eco Full mode: 650 mW or less (at 30 V. 24 mA at 24 V, 40 mA or less at 12 V)
- Ambient temperature: -20 to +55 °C -4 to 131 °F (No freezing)
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
- Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions
- Material: Cable: PVC, Case: Main unit and cover material: Polycarbonate
- Weight: Approx. 65 g

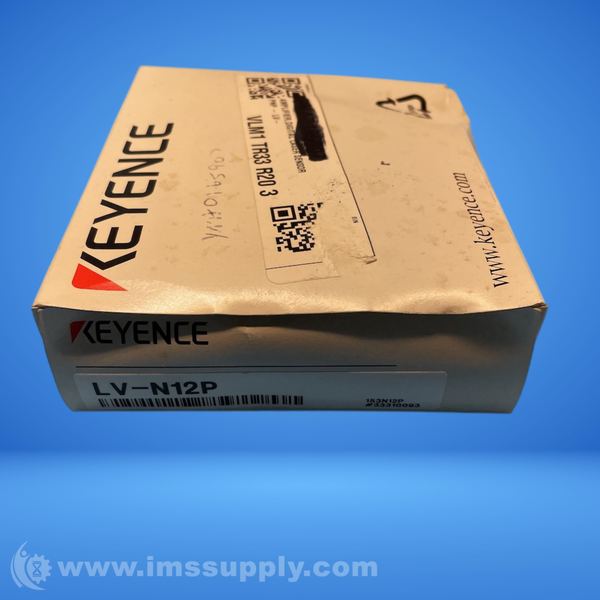

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
