KEYENCE MS2-H50 COMPACT SWITCHING POWER SUPPLY
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: MS2-H50
IMS Product Code: 2153508
Packaging: Sold Individually
Description:

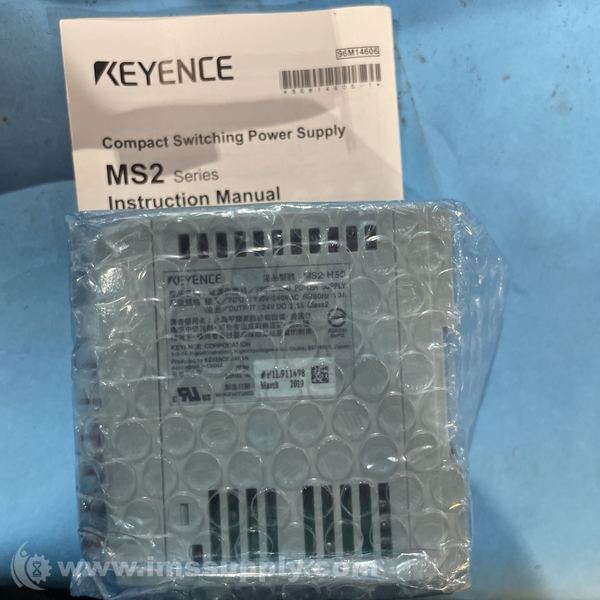

Keyence MS2-H50 Compact Switching Power Supply
Compact Switching Power Supply with 100-240V AC input and 24V DC output.
Specifications
- Input Voltage: 85 to 264 VAC, 110 to 370 VDC
- Frequency: 47 to 63 Hz, DC
- Input Current (100/200 VAC): 1.3/0.7A or less
- Rated Voltage: 24V
- Rated Current: 2.1A (Class2)
- Output Voltage: 24V DC
- Output Current: 2.1 A, 50 W
- Efficiency (100/200 VAC): 82, 85% typ. (at 100% load)
- Ripple/Noise Voltage: 180mV (p-p) or less
- Overcurrent Protection: Constant current drop method, automatic recovery, 2.7 A or more
- Overvoltage Protection: Activates at 26.4 V or more, voltage interruption method
- Display: 3-digit 7-segment LED
- Cooling Method: Natural air cooling
- Ambient Temperature: -10 to +55 °C
- Relative Humidity: 25 to 85 % RH
- Weight: Approx. 270 g
- Safety Standards: UL508, UL60950-1, CSA C22.2 No.14, CSA C22.2 No.60950-1, EN60950-1, EN50178, IEC60950-1
- EMC Standard: FCC Part15B Class A, EN55011 Class A, EN61000-6-2
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 58 minutes.
