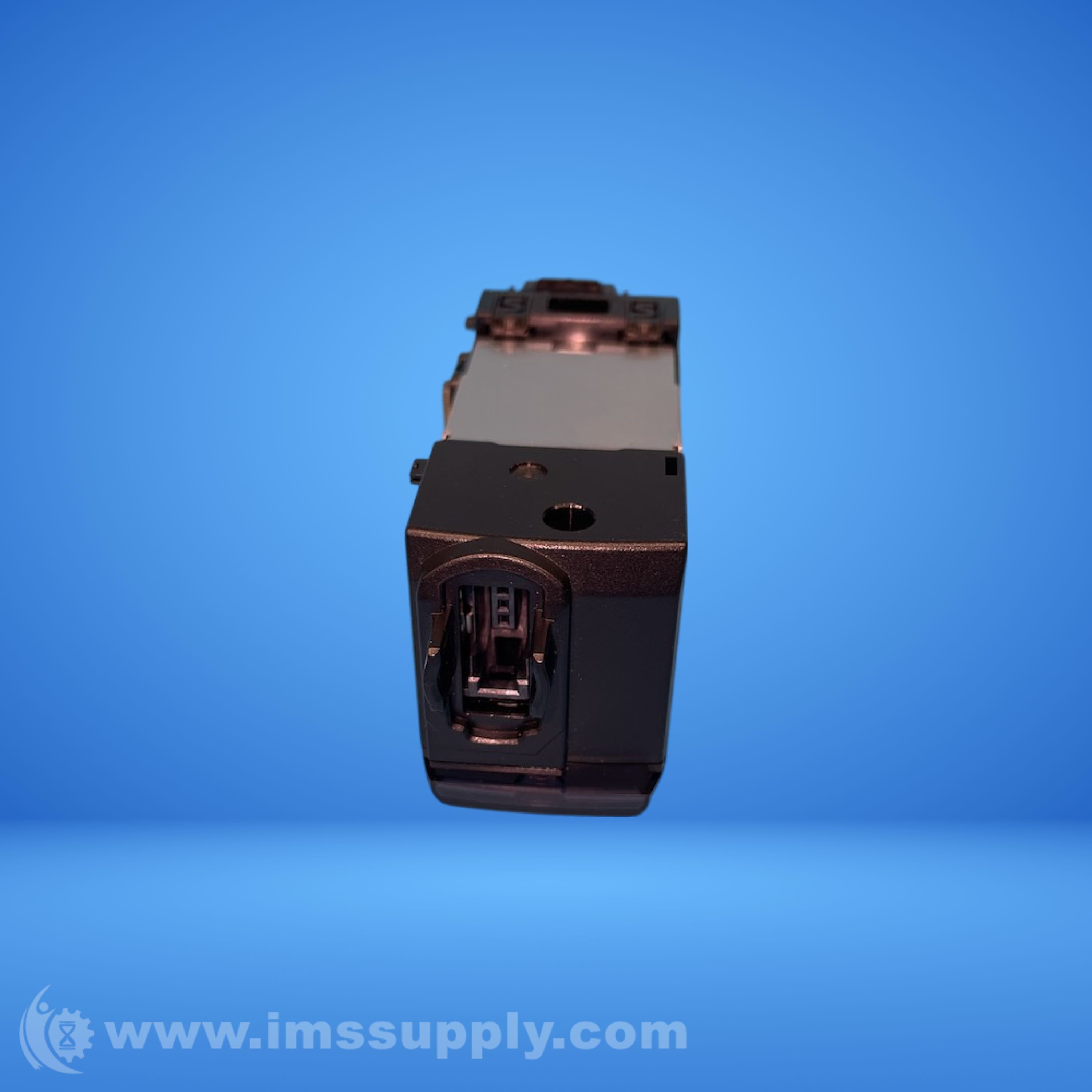

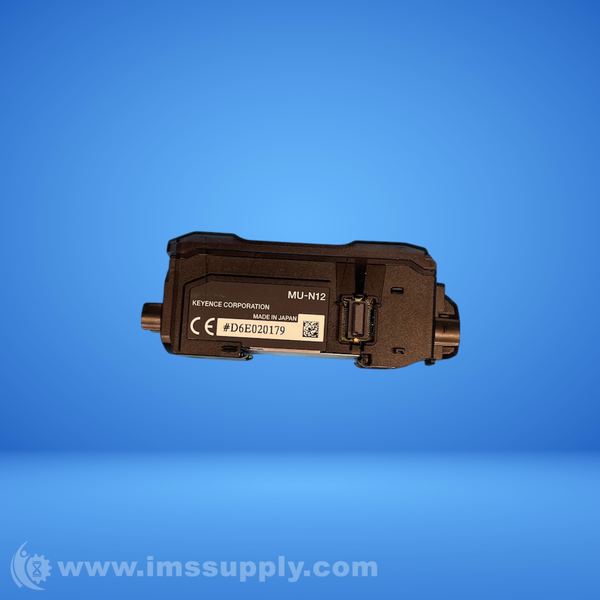

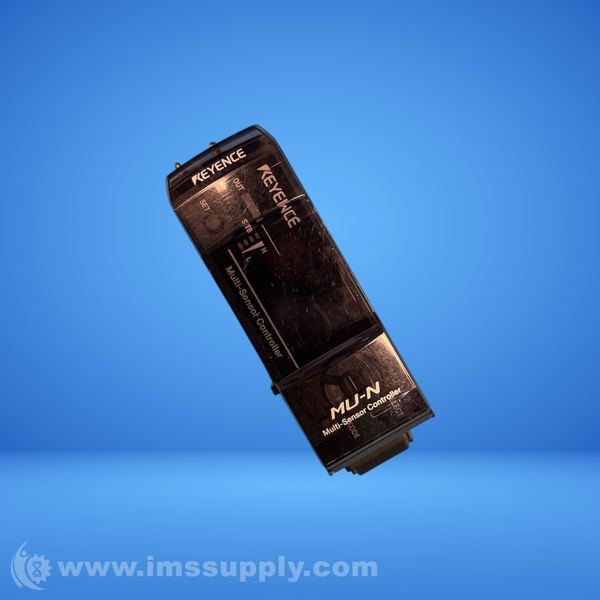

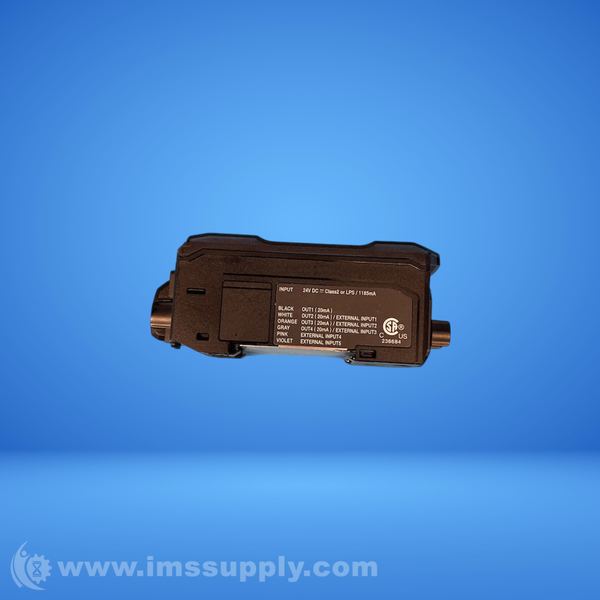

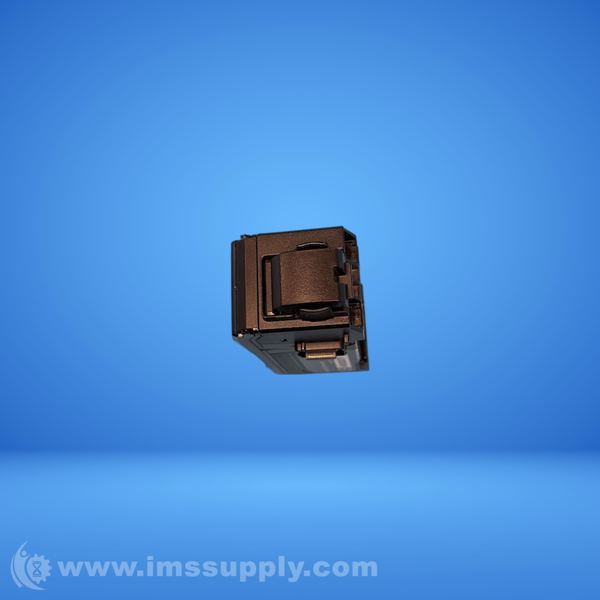

KEYENCE MU-N12 MULTI-SENSOR CONTROLLER EXPANSION UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: MU-N12
IMS Product Code: 2141243
Packaging: Sold Individually
Description:
Keyence MU-N12 Multi-Sensor Controller Expansion Unit
Expansion unit for Multi-Sensor Controller
Specifications
- Main unit/Expansion unit: Expansion unit
- Response time: Depends on the connected sensor model
- Expansion units: Up to 4 expansion units
- Control output: 4 max., NPN open collector/PNP open collector selectable, 24 V or less, Main unit: 50 mA or less, Expansion unit: 20 mA or less, Residual voltage: 2 V or less, N.O./N.C. selectable
- External input: 5 max., Short-circuit current: NPN: 1 mA or less, PNP: 2 mA or less, For the applied voltage, see wiring diagrams
- Power voltage: 24 VDC, ripple (P-P) 10% or less, Class 2 or LPS
- Current consumption: 55 mA or less (without load)
- Allowable sensor current: 150 mA or less
- Allowable passing current: 900 mA or less
- Ambient temperature: -20 to +50 degrees C
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Material: Case and dust cover: Polycarbonate, Buttons: Polyacetal, Display panel: PMMA
- Weight: Approx. 70 g
- Country/Region of Manufacture: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
