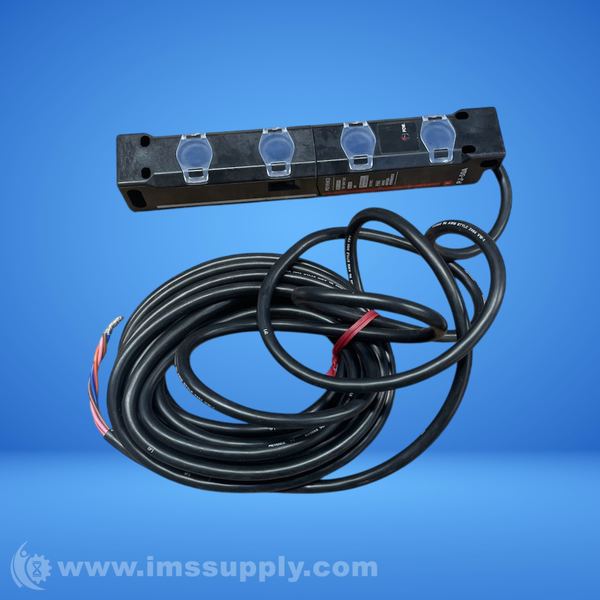

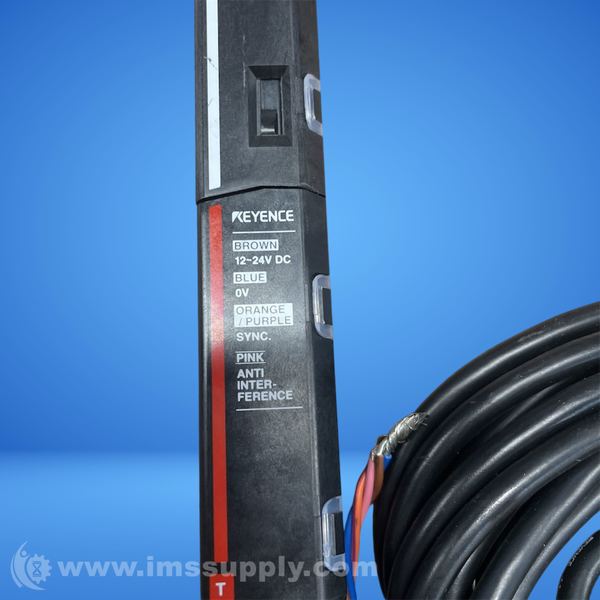

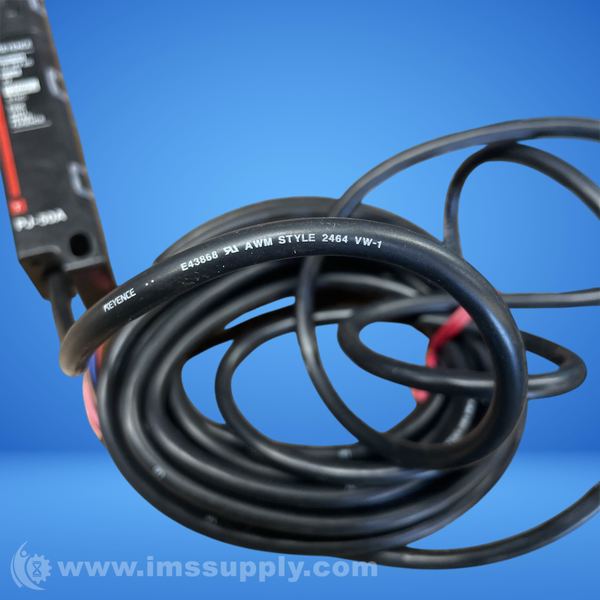

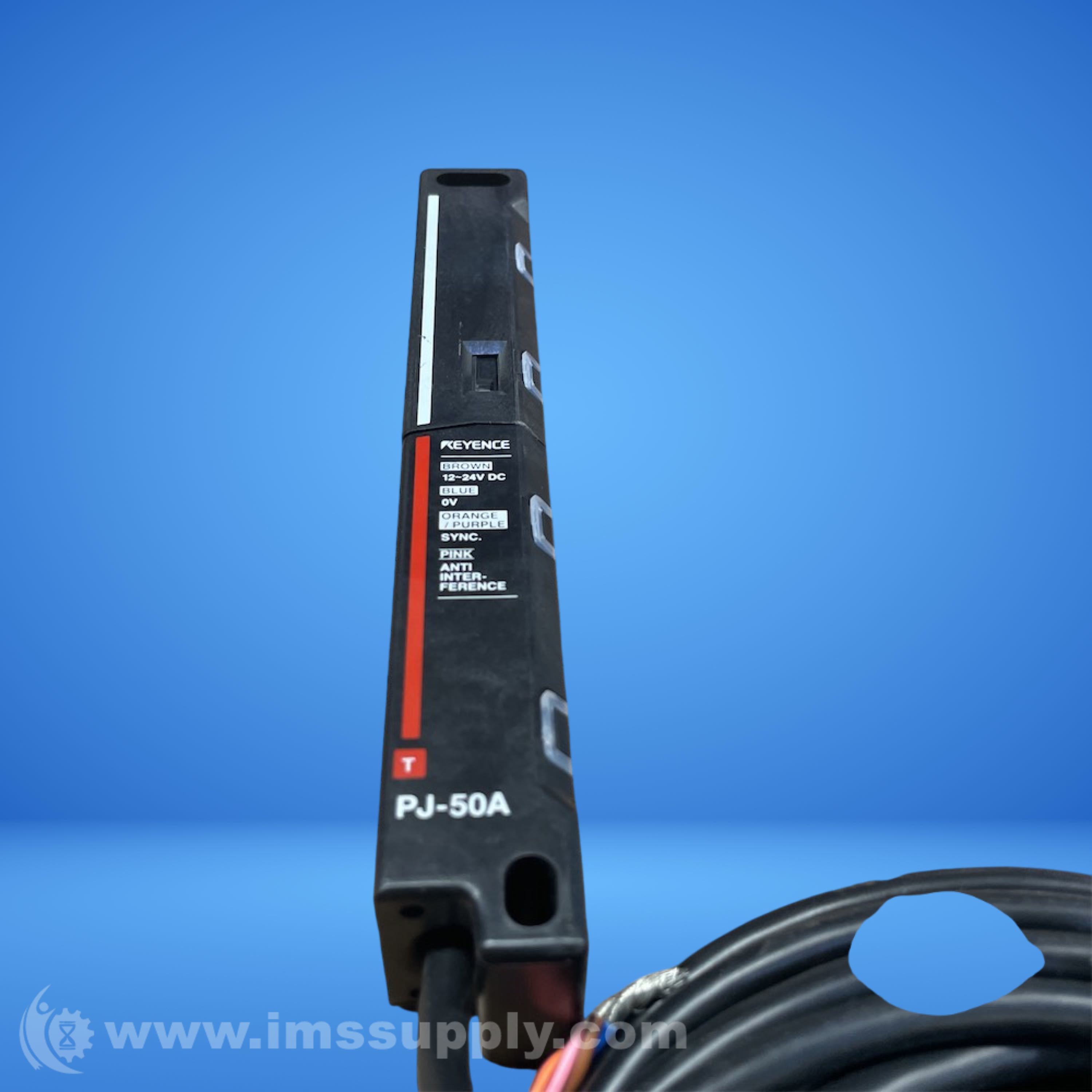

KEYENCE PJ-50A EXPANDABLE AREA SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PJ-50A
IMS Product Code: 2131347
Packaging: Sold Individually
Description:
Keyence PJ-50A Expandable Area Sensor
Expandable area sensor with infrared LED light source, 4 beam axes, and detection distance of 5m. Housing made of glass-fibre reinforced plastic and lens cover made of PFA.
Specifications
- Type: Expandable Area Sensor
- Sensor Type: Solid State
- Number of optical axes: 4
- Optical axis spacing: 40 mm
- Detection area: 120 mm to 1,080 mm
- Detection distance: 5 m
- Light source: Infrared LED
- Response time: 15 ms or less
- Material: Housing : Glass-fibre reinforced plastic, Lens cover : PFA
- Output - Control output: NPN open collector 100 mA max. (40 V max.), Residual voltage : 1 V max.
- Control output - Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Rating - Power voltage: 12 to 24 VDC (±10%), ripple (p-p) : 10% max.
- Rating - Current consumption: 90 mA (PJ-50AT : 35 mA, PJ-50AR : 55 mA)
- Environmental resistance - Enclosure rating: IP64
- Environmental resistance - Operating ambient luminance: Incandescent lamp : 3500 lux max., Sunlight : 12000 lux max.
- Environmental resistance - Operating temperature range: -20 to +50°C -4 to 122°F (no freezing)
- Environmental resistance - Operating ambient humidity: 35 to 85 % RH (No condensation)
- Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions
- Environmental resistance - Shock resistance: 100 m/s2 in X, Y, and Z directions, 3 times respectively
