KEYENCE PQ-01 THRUBEAM SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PQ-01
IMS Product Code: 2144735
Packaging: Sold Individually
Description:

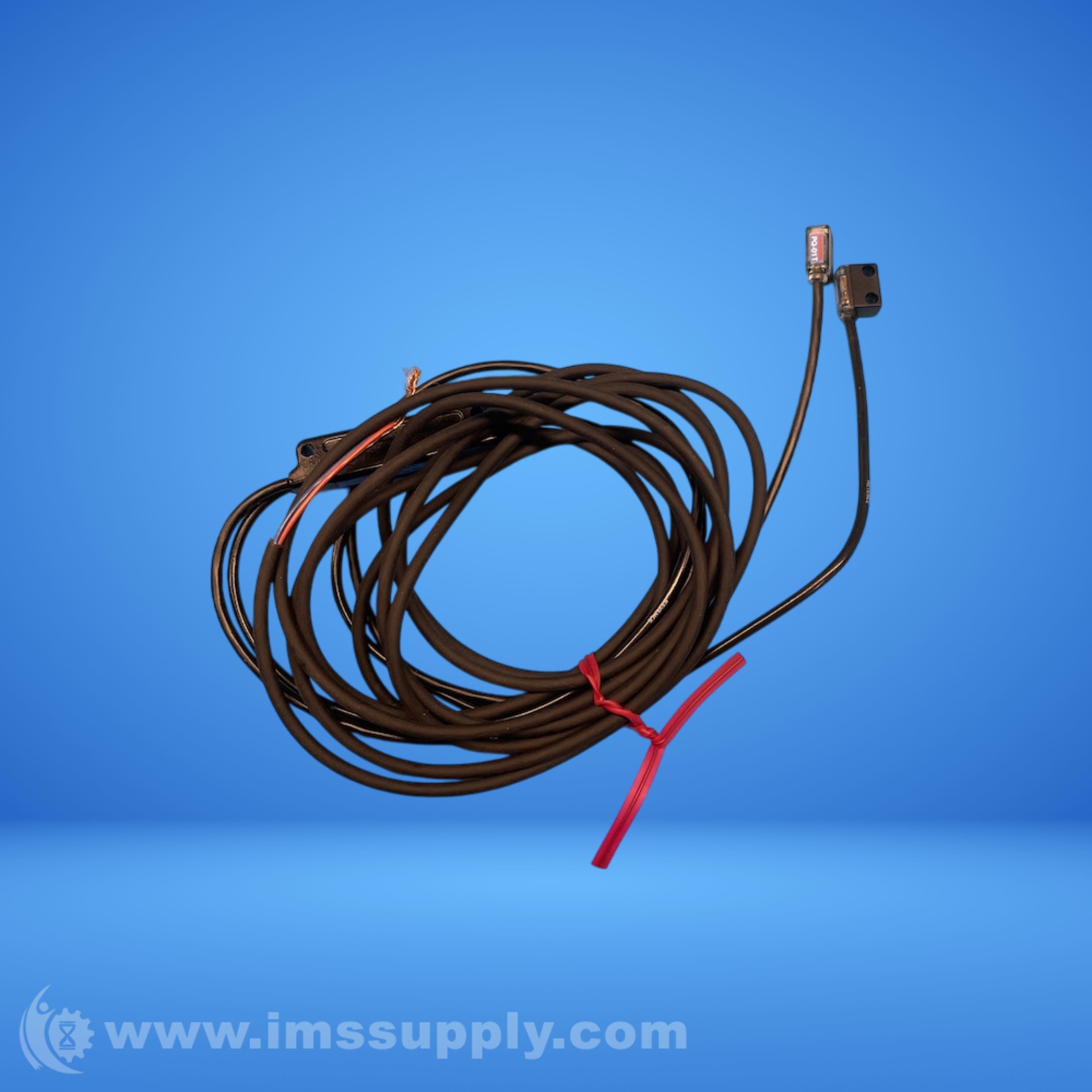

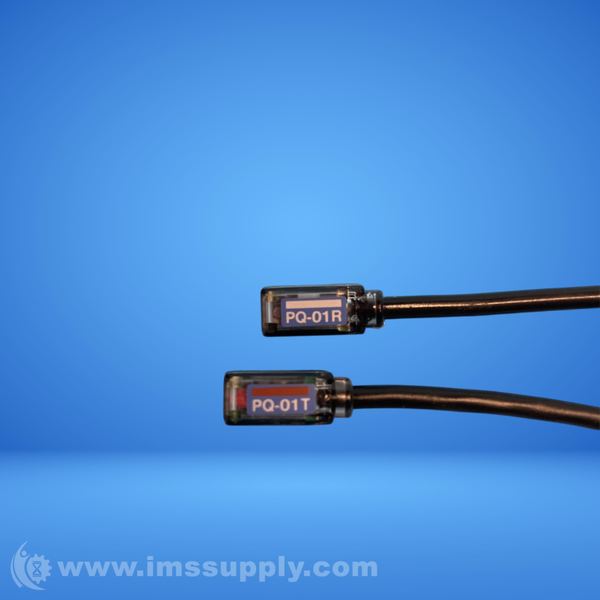

Keyence PQ-01 Thrubeam Sensor
Keyence PQ-01 is a short-distance thrubeam sensor with infrared LED light source, 100 mm detection range, and NPN output. It features IP64 protection and high vibration/shock resistance.
Specifications
- Detecting Distance: 100 mm
- Light Source: Infrared LED
- Detectable Object: >= 1 mm diameter opaque materials
- Minimum Detectable Object: 0.5 mm diameter copper wire
- Response Time: <= 1 ms
- Operation Mode: DARK-ON

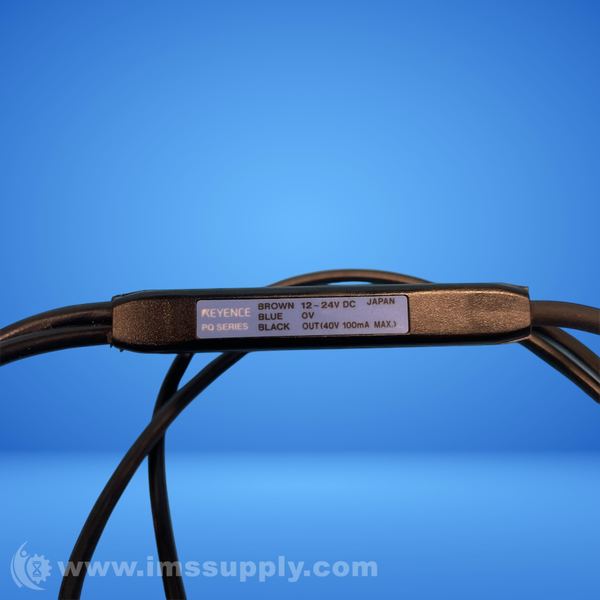

- Control Output: NPN, 100 mA max (40 V max)
- Power Voltage: 12-24 VDC +/- 10%
- Current Consumption: <= 30 mA
- Enclosure Rating: IP64
- Material: Amplifier: Polysulfone; Sensor head: Polyarylate
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
