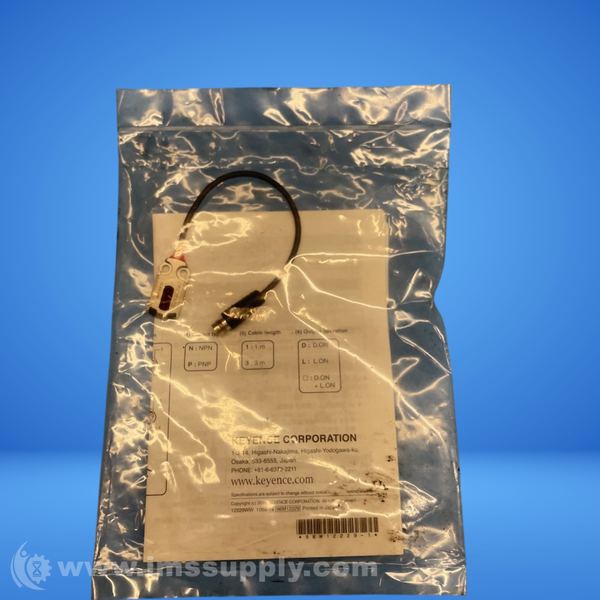

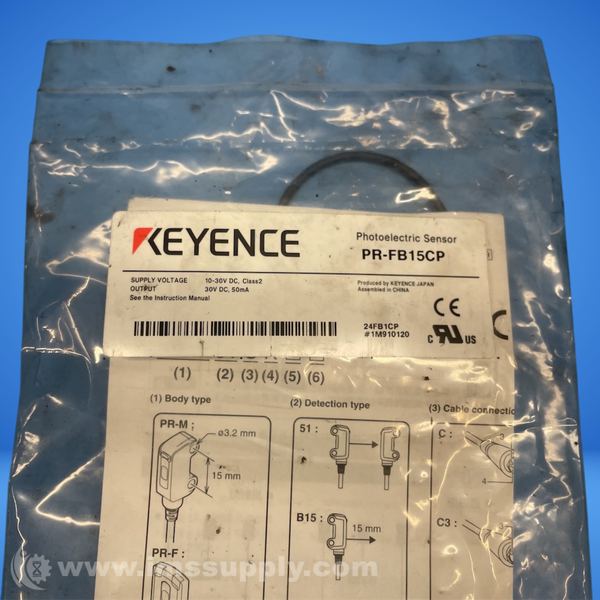

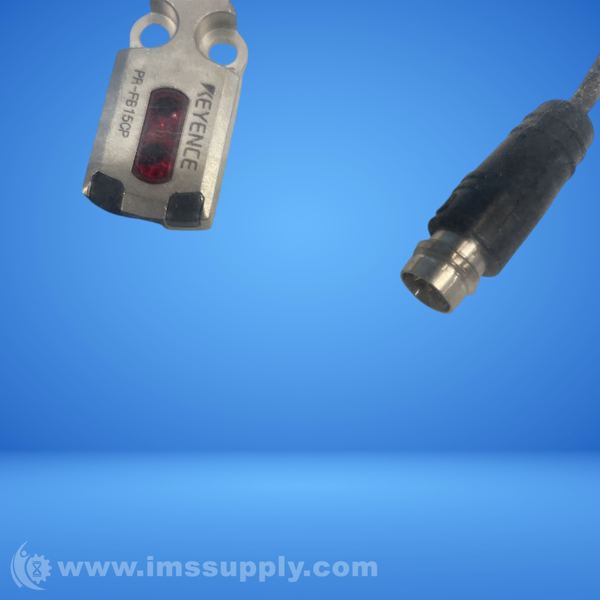

KEYENCE PR-FB15CP PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PR-FB15CP
IMS Product Code: 2147469
Packaging: Sold Individually
Description:
Keyence PR-FB15CP Photoelectric Sensor
Reflective photoelectric sensor with PNP output, 1-15mm detection distance, M8 connector
Specifications
- type: Reflective (Background suppression)
- output: PNP
- light source: 4 element, point light source, red LED (650 nm)
- sensitivity adjustment: None
- shape: Flat
- cable connection: M8 connector (4 pin)
- detection distance: 1 to 15 mm 0.04" to 0.59"
- number of control outputs: 2
- output operation - output 1: Light-ON
- output operation - output 2: Dark-ON
- response time - output 1: 0.5 ms
- response time - output 2: ON?OFF: 2.7 ms, OFF?ON: 0.5 ms*1
- spot diameter: Approx. 2.5 x 4.5 mm (at 15 mm)
- mutual interference prevention function: 4 sensors
- indicator lamp: Output indicator (orange), stable operation indicator (green), thrubeam type transmitter: power supply indicator (green)
- control output: 30 VDC or lower, 50 mA or lower
- leakage current: When 3 k? load resistance, 0.3 mA or lower. When 1 k? load resistance, 0.5 mA or lower. When 0.2 k? load resistance, 1.5 mA or lower
- residual voltage: When 10 mA or lower, 1.0 V or lower. When 10 to 30 mA, 1.5 V or lower. When 30 to 50 mA, 2.0 V or lower.
- protection circuit: Power supply reverse connection protection, output overcurrent protection, output surge protection, power supply surge protection
- rating - power voltage: 10 to 30 VDC including 10% ripple (P-P)
- rating - current consumption.: 19 mA
- environment resistance - enclosure rating: IP67 (IEC 60529), IP69K (DIN 40050-9), 4X, 6P, 13 (NEMA 250)
- environment resistance - ambient light: Incandescent lamp 5,000 lx or lower, sunlight: 20,000 lx or lower
- environment resistance - ambient temperature: -25 to +55°C -13 to 131°F (no freezing)
- environment resistance - ambient storage temperature: -25 to +75°C -13 to 167°F
- environment resistance - ambient humidity: 35 to 85% RH (no condensation)
- environment resistance - shock resistance: 1,000 m/s2, X, Y, Z each direction 6 times
- environment resistance - vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm 0.06", X, Y, Z each direction 2 hours
- environment resistance - insulation resistance: 20 M? or higher (500 VDC)
- environment resistance - withstand voltage: 1,000 VAC 50/60Hz 1min
- materials: Case: SUS 316L, indicator cover/lens cover: polysulfone, cord protector: polymethylpentene, filler: polyester-based resin
- weight: Approx. 10 g
