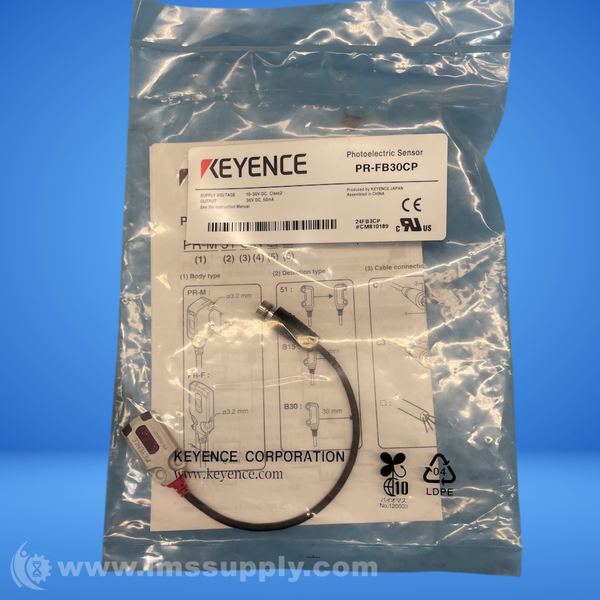

KEYENCE PR-FB30CP PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PR-FB30CP
IMS Product Code: 2145649
Packaging: Sold Individually
Description:
Keyence PR-FB30CP Photoelectric Sensor
Flat Reflective (Background suppression) M8 Connector Type, 30mm
Specifications
- type: Reflective (Background suppression)
- output: PNP
- shape: Flat
- cable connection: M8 connector (4 pin)
- detection distance: 1 to 30 mm 0.039" to 1.181"
- number of control outputs: 2
- output operation: Output 1: Light-ON, Output 2: Dark-ON
- response time: Output 1: 0.5 ms, Output 2: ON?OFF: 2.7 ms, OFF?ON: 0.5 ms
- sensitivity adjustment: None
- spot diameter: Approx. ø5 mm (at 30 mm)
- light source: 4 element, point light source, red LED (650 nm)
- mutual interference prevention function: 4 sensors
- indicator lamp: Output indicator (orange), stable operation indicator (green), thrubeam type transmitter: power supply indicator (green)
- control output: 30 VDC or lower, 50 mA or lower
- protection circuit: Power supply reverse connection protection, output overcurrent protection, output surge protection, power supply surge protection
- power voltage: 10 to 30 VDC, including Ripple (P-P) 10 %
- current consumption: 19 mA
- enclosure rating: IP67 (IEC60529), IP69K (DIN40050-9), 4X, 6P, 13 (NEMA250)
- insulation resistance: 20 M? or higher (500 VDC)
- ambient light: Incandescent lamp: 5,000 lux or lower, Sunlight: 20,000 lux or lower
- ambient temperature: -25 to +55 °C -13 to 131 °F (No freezing)
- relative humidity: 35 to 85 % RH (No condensation)
- storage temperature: -25 to +75 °C -13 to 167 °F
- withstand voltage: 1,000 VAC, 50/60 Hz, 1 min
- vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
- shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- material: Case: SUS316L, indicator cover/lens cover: polysulfone, cord protector: polymethylpentene, filler: polyester-based resin
- weight: Approx. 10 g
