KEYENCE PR-G61CP SQUARE RETRO-REFLECTIVE PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PR-G61CP
IMS Product Code: 2131189
Packaging: Sold Individually
Description:

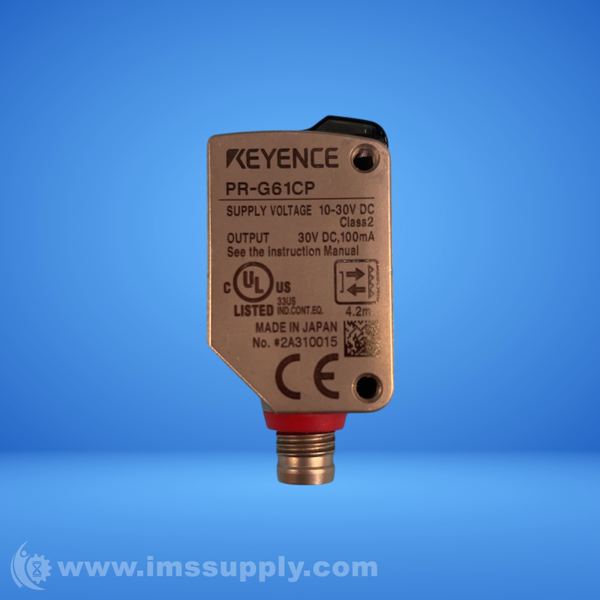

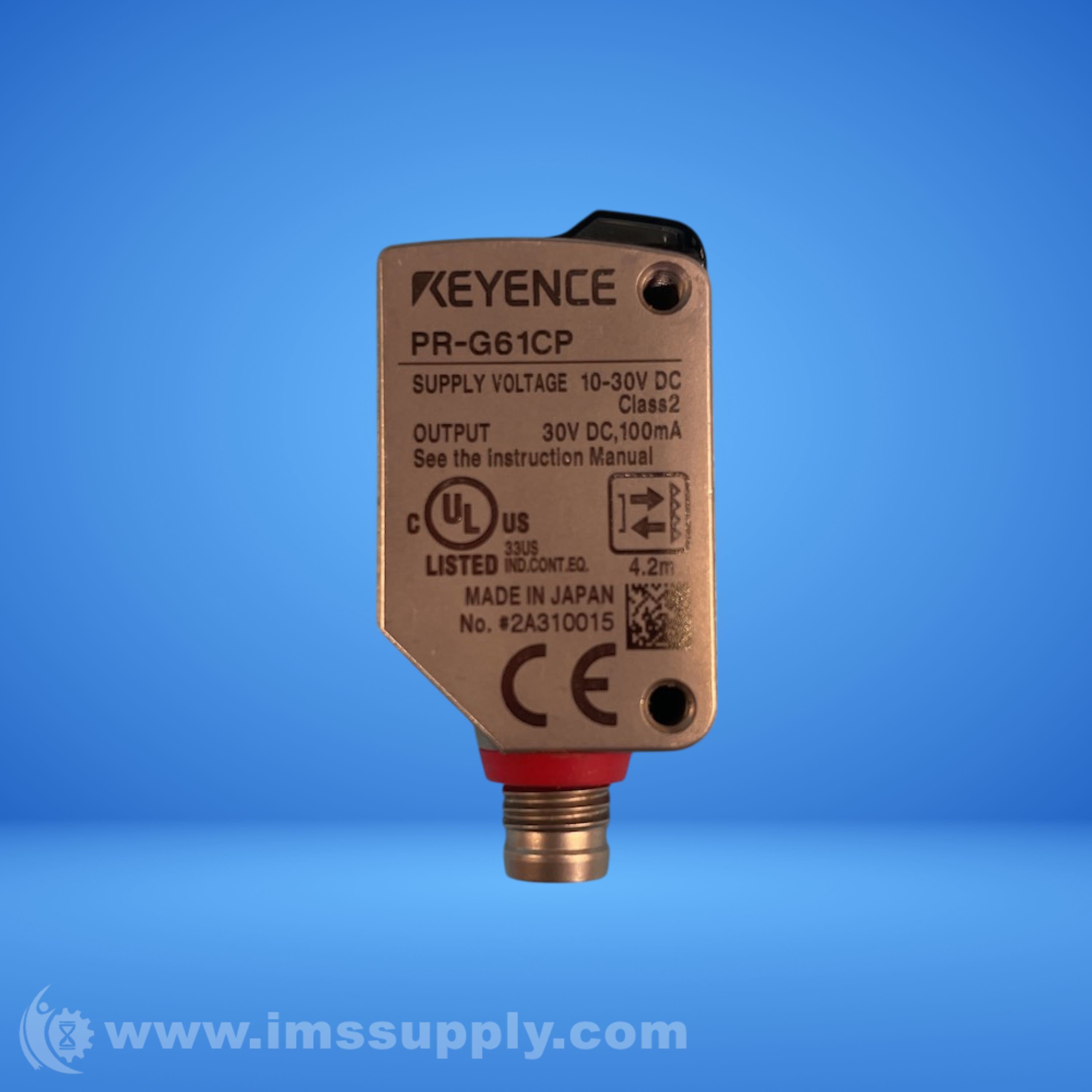

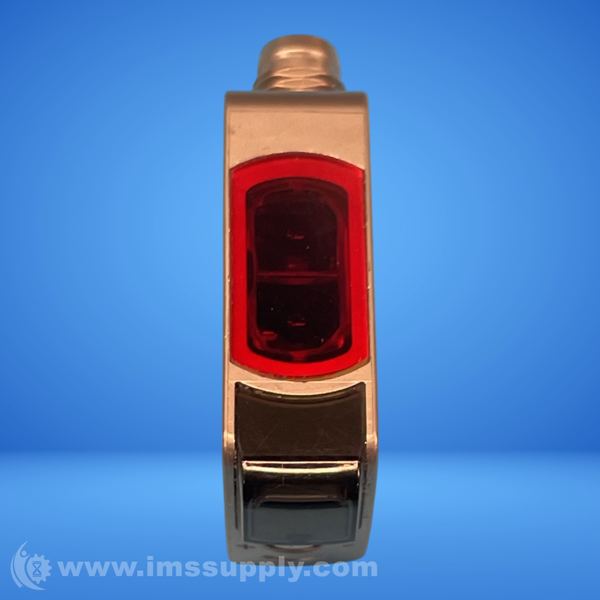

Keyence PR-G61CP Square Retro-reflective Photoelectric Sensor
A square retro-reflective photoelectric sensor with M8 connector, PNP output, and 4.2m detection distance.
Specifications
- Type: Retro-reflective
- Shape: Rectangular
- Output: PNP

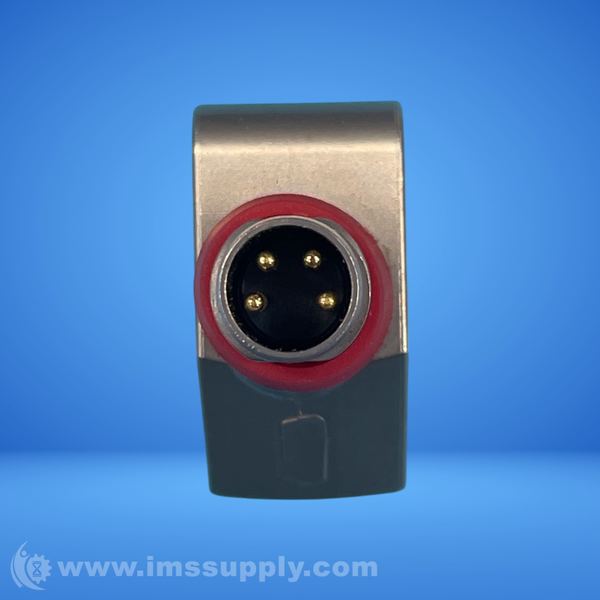

- Cable connection: M8 connector (4 pin)
- Detecting distance: 0.1 to 4.2 m
- Number of control outputs: 2 (Dark-ON + Light ON)
- Output operation: Output 1: Dark-ON, Output 2: Light-ON
- Response time: 0.5 ms
- Sensitivity adjustment: Five-turn trimmer
- Light source: 4 elements, Red LED (630 nm)
- Light interference prevention function: 2
- Indicator lamp: 7 segment display (0 to 999), output indicator (yellow)
- Control output: PNP open collector, 30 VDC or less, 100 mA or less
- Power voltage: 10 to 30 VDC
- Power consumption: 450 mW max.
- Enclosure rating: IP68, IP69K, 4X, 6P, 13 (NEMA250)
- Insulation resistance: 20 M? or more (500 VDC)
- Ambient light: Incandescent lamp: 5,000 lux or less, Sunlight: 20,000 lux or less
- Ambient temperature: -20 to +70 degrees C
- Relative humidity: 35 to 85 % RH
- Storage temperature: -20 to +70 degrees C
- Withstand voltage: 1,000 VAC, 50/60 Hz, 1 min
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours
- Shock resistance: 1,000 m/s2, 6 times
- Material: Case: SUS 316L, Indicator cover: PES, 7-segment display cover/Lens cover: PMMA, M18 nut: Brass (Nickel plating), Lock washer: Steel (Chrome plating)
- Weight: Approx. 25 g
- Series: PR-G

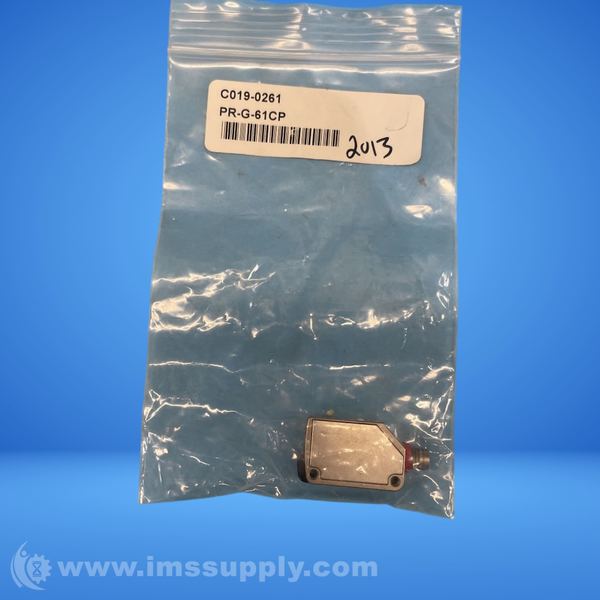

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
