KEYENCE PR-M51CP PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PR-M51CP
IMS Product Code: 1928701
Packaging: Sold Individually
Description:

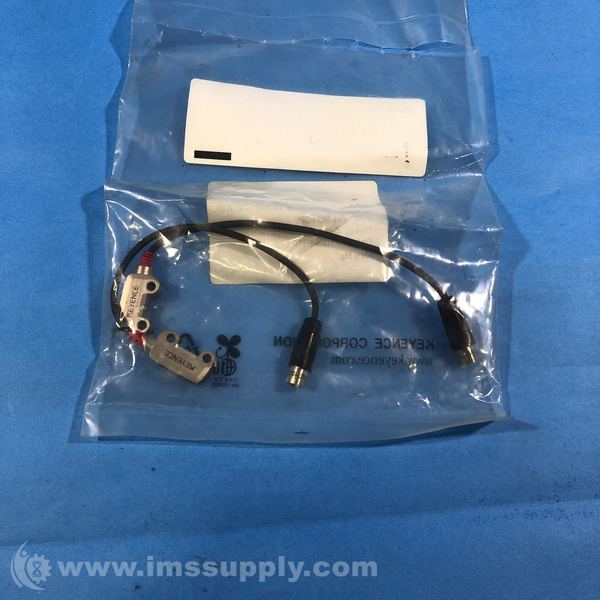

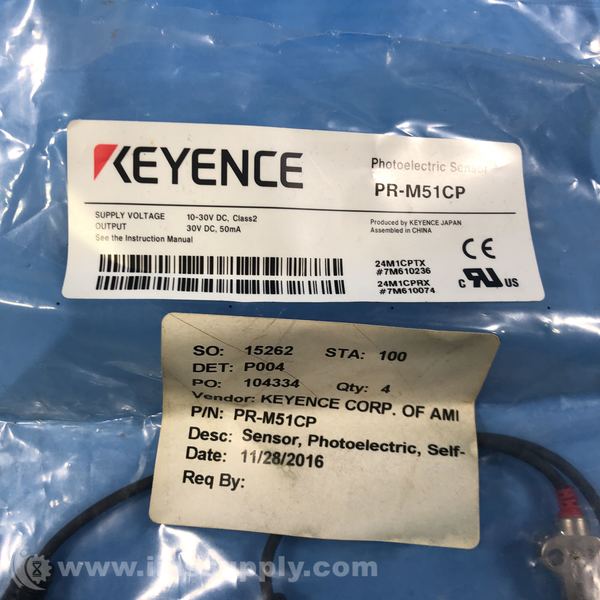

Keyence PR-M51CP Photoelectric Sensor
Self-contained Miniature Photoelectric Sensor, Mini-slim Transmissive M8 Connector Type, 1.2m
Specifications
- Type: Thrubeam
- Output: PNP
- Shape: Mini-slim
- Cable connection: M8 connector (4 pin)
- Detection distance: 1.2 m
- Number of control outputs: 2
- Output operation: Output 1: Dark-ON, Output 2: Light-ON
- Response time: Output 1: 0.5 ms, Output 2: ON->OFF: 2.7 ms, OFF->ON: 0.5 ms
- Sensitivity adjustment: None
- Light source: 4 element, point light source, red LED (650 nm)
- Indicator lamp: Output indicator (orange), stable operation indicator (green), thrubeam type transmitter: power supply indicator (green)
- Control output: 30 VDC or lower, 50 mA or lower
- Leakage current: When 3 k? load resistance, 0.3 mA or lower. When 1 k? load resistance, 0.5 mA or lower. When 0.2 k? load resistance, 1.5 mA or lower
- Residual voltage: When 10 mA or lower, 1.0 V or lower. When 10 to 30 mA, 1.5 V or lower. When 30 to 50 mA, 2.0 V or lower
- Protection circuit: Power supply reverse connection protection, output overcurrent protection, output surge protection, power supply surge protection
- Power voltage: 10 to 30 VDC, including Ripple (P-P) 10 %
- Current consumption: Transmitter: 11 mA, Receiver: 16 mA
- Enclosure rating: IP67 (IEC60529), IP69K (DIN40050-9), 4X, 6P, 13 (NEMA250)
- Insulation resistance: 20 M? or higher (500 VDC)
- Ambient light: Incandescent lamp: 5,000 lux or lower, Sunlight: 20,000 lux or lower
- Ambient temperature: -25 to +55 °C
- Relative humidity: 35 to 85 % RH (No condensation)
- Storage temperature: -25 to +75 °C
- Withstand voltage: 1,000 VAC, 50/60 Hz, 1 min
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Material: Case: SUS316L, indicator cover/lens cover: polysulfone, cord protector: polymethylpentene, filler: polyester-based resin
- Weight: Approx. 26 g
