KEYENCE PS-N11P AMPLIFIER UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PS-N11P
IMS Product Code: 2153507
Packaging: Sold Individually
Description:

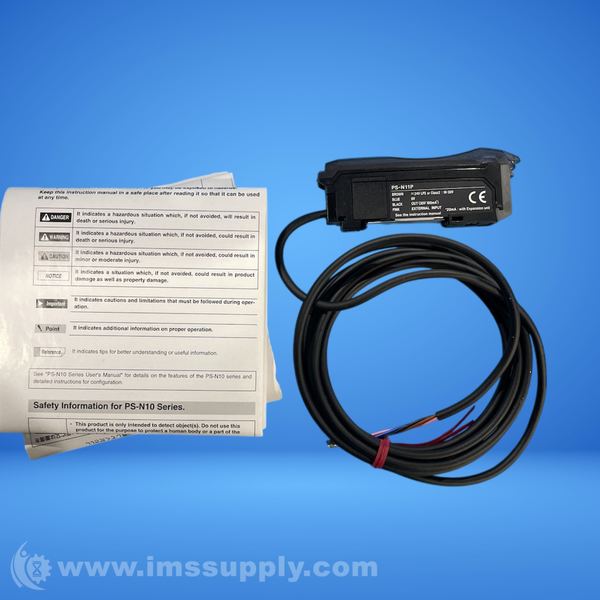

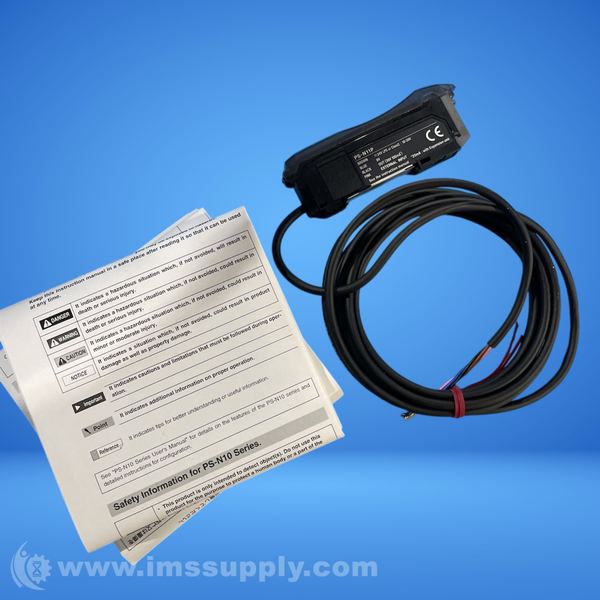

Keyence PS-N11P Amplifier Unit
Amplifier Separate Type Photoelectric Sensor, PNP Output, Cable Type
Specifications
- Type: Cable
- Output: PNP
- Main unit/Expansion unit: Main unit
- I/O: Control outputs: 1 output, External input: 1 input
- Output selection: LIGHT-ON/DARK-ON (switch-selectable)
- Timer function: Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer, Timer duration selectable: 1 ms to 9999 ms
- Control output: PNP open collector 30 V, (without expansion) 100 mA max., (with expansion) 20 mA max
- Number of interference prevention units: 4 for TURBO/SUPER/ULTRA/MEGA
- Response time: 500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA)
- External input: Input time 2 ms (ON)/20 ms (OFF) or more
- Case size: H 32.6 mm × W 9.8 mm × L 78.7 mm
- Unit expansion: Up to 16 units
- Protection circuit: Reverse polarity protection, Over-current protection, Surge absorber
- Rating: Power voltage: 24 VDC (operating voltage 10 to 30 VDC)
- Power consumption: Normal: 860 mW or less, Eco on mode (ALL): 750 mW or less, Eco Full mode: 540 mW or less
- Environmental resistance: Ambient temperature: -20 to +55 °C, Relative humidity: 35 to 85 % RH
- Material: Case: Polycarbonate, Cable: PVC
- Weight: Approx. 75 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 20 minutes.
