KEYENCE PS-T1 AMPLIFIER UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PS-T1
IMS Product Code: 1775717
Packaging: Sold Individually
Description:

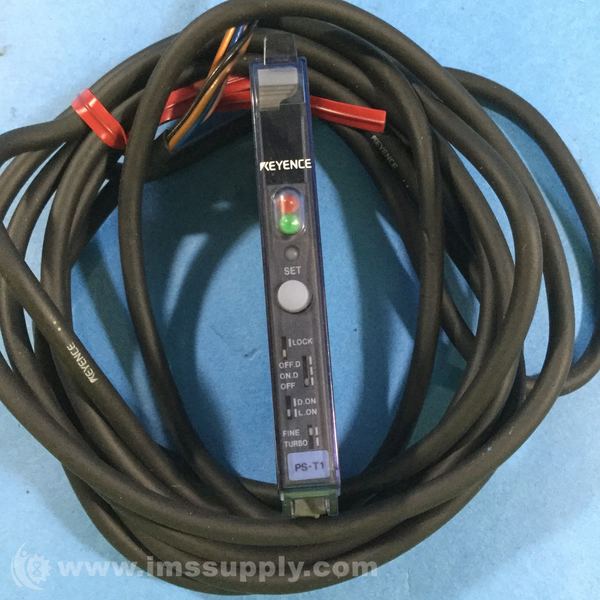

Keyence PS-T1 Amplifier Unit
Amplifier Separate Type Photoelectric Sensor, Main Unit, NPN
Specifications
- Type: Main unit
- Output: NPN
- Response time: 500 µs
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Output indicator: Red LED, Stable operation indicator: Green LED, Calibration indicator: Yellow LED
- Timer function: ON-delay: 40 ms, OFF-delay: 40 ms, Timer OFF (switch-selectable)
- External calibration input signal: Non-voltage input (contact, solid state)

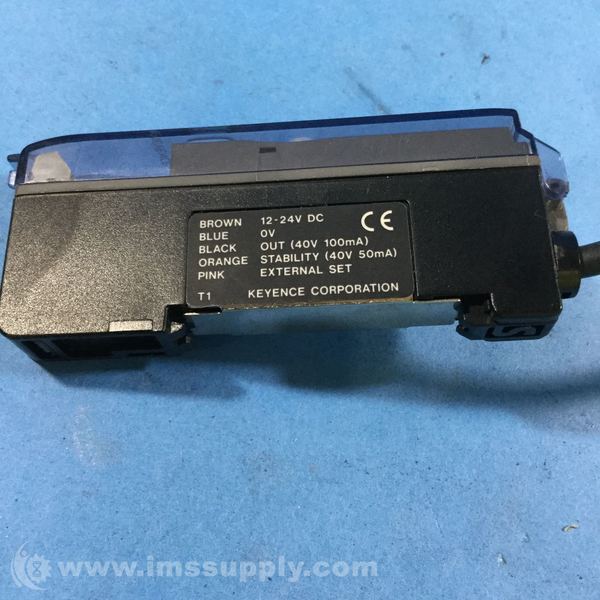

- Control output: NPN:100 mA max. (40 V max.) Residual voltage: 1 V max.
- Stability output: NPN:50 mA max. (40 V max.) Residual voltage: 1 V max.
- Protection circuit: Reverse polarity protection, Over-current protection, Surge absorber
- Multiple connections to expansion units: Up to 16 expansion units can be connected (a total of 17 units)
- Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Current consumption: 35 mA or less
- Ambient temperature: -10 to +55 °C
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions
- Case material: Body/Cover: Polycarbonate
- Weight: Approx. 75 g
- Country of Origin: Japan

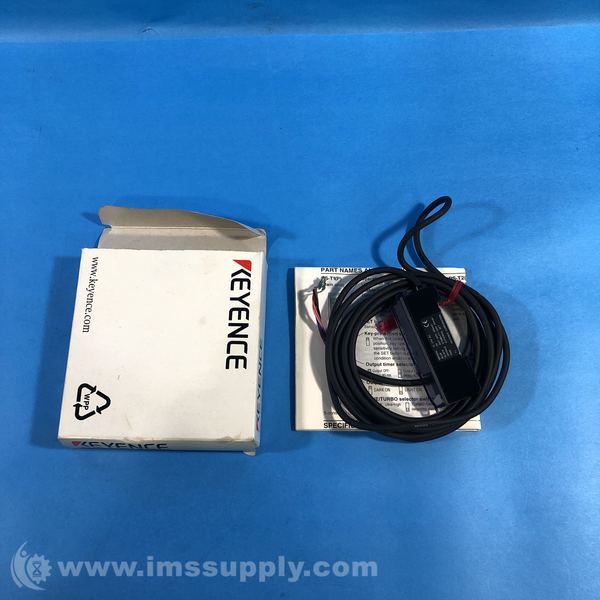

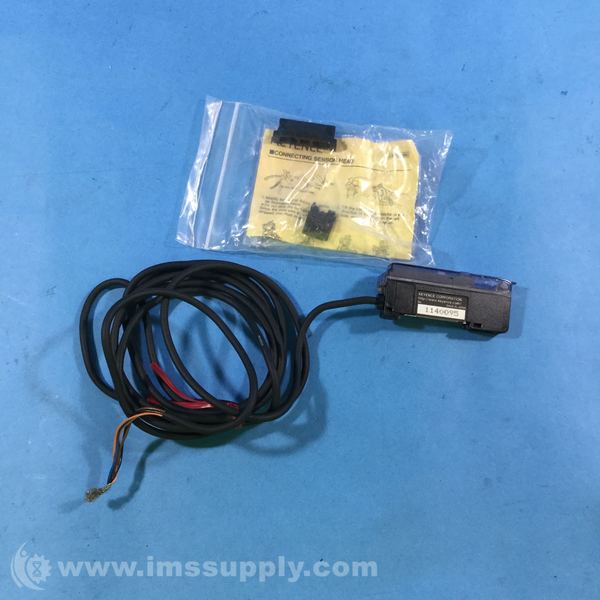

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
