KEYENCE PZ-G51CB PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-G51CB
IMS Product Code: 2135408
Packaging: Sold Individually
Description:
Keyence PZ-G51CB Photoelectric Sensor
Threaded Mount Thrubeam M12 Connector Type NPN Photoelectric Sensor
Specifications
- Termination Type: Connector
- Type: Thrubeam
- Response time: 500 µs
- Output: Bipolar (NPN+PNP)
- Light source: Red LED
- Sensitivity adjustment: 1-turn trimmer (230°)
- Tightening torque: Threaded models (front M18 part): 1.0 N m max., (side slotted hole part): 0.5 N m max.
- Shape: Threaded
- Cable connection: M12 connector
- Detecting distance: 20 m (65.6')
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicators (LED): Power (T): Orange LED Output (R): Orange LED Stable operation: Green LED Light receiving: Red LED
- Control output: Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.
- Protection circuit: Reversed polarity, overcurrent protection, surge absorber
- Interference suppression: Up to 2 units (When polarization filters are attached)
- Rating - Power voltage: 10 to 30 VDC including Ripple ±10% (P-P), Class 2
- Rating - Current consumption: T: 20 mA max. R: 28 mA max.
- Environmental resistance - Enclosure rating: IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
- Environmental resistance - Operating ambient luminance: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
- Environmental resistance - Operating temperature range: -20 to +55°C -4 to 131°F, No freezing
- Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
- Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in the X, Y, and Z directions, 2 hours respectively
- Environmental resistance - Shock resistance: 1,000 m/s2 6 times in the X and Y directions
- Material - Housing, M18 nut (threaded models only): Glass-fiber reinforced PBT
- Material - Lens cover: Polyarylate (PAR)
- Material - Trimmer: Glass-fiber reinforced polyamide (PA)
- Material - Case connection: Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
- Material - Cable (cable models only): Polyvinyl chloride (PVC)
- Weight: Threaded connector models: Approx. 15 g

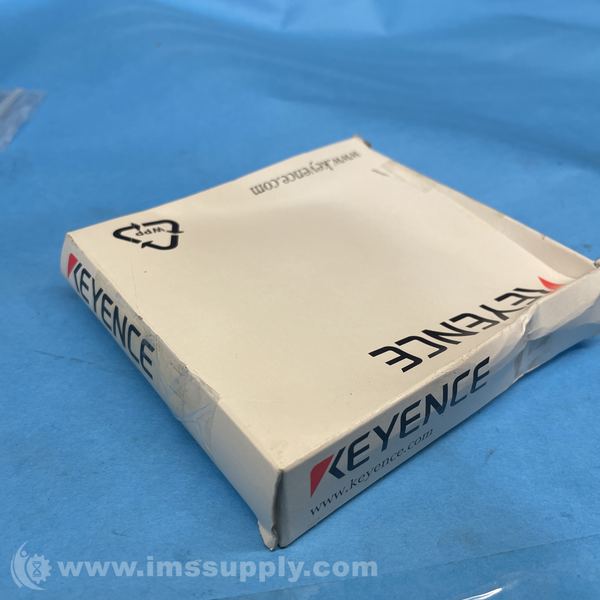

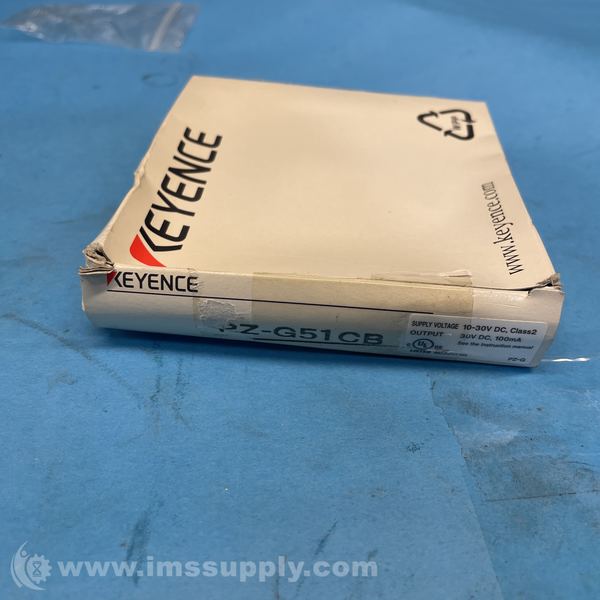

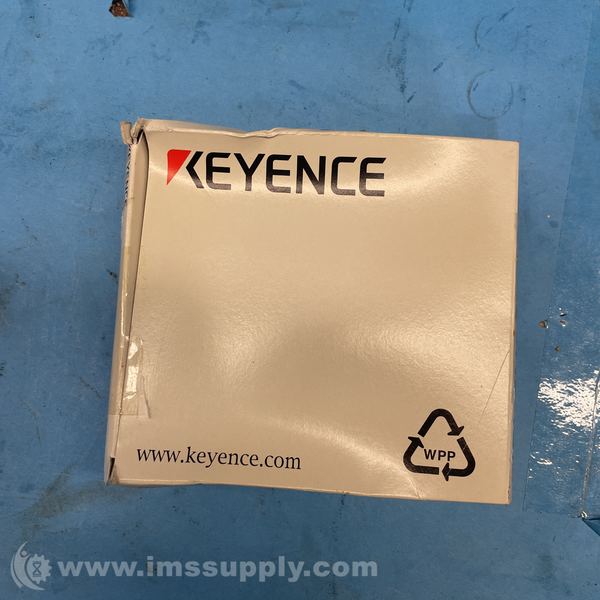

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
