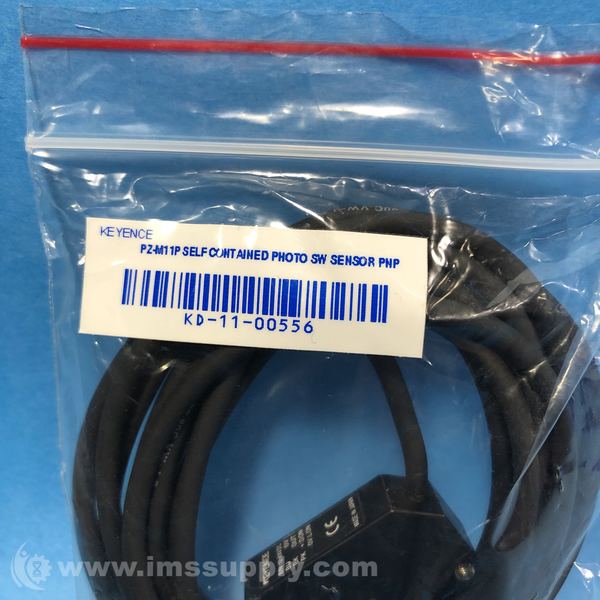

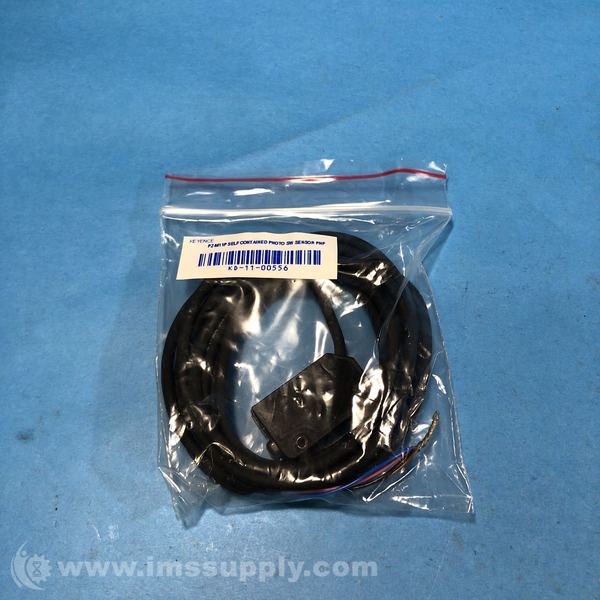

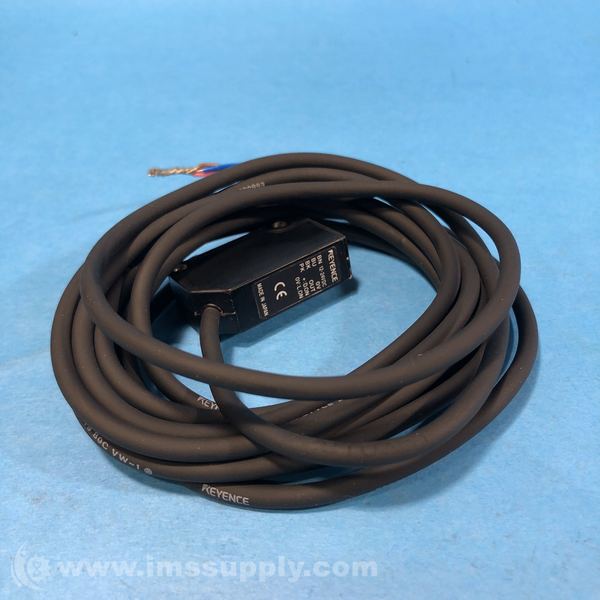

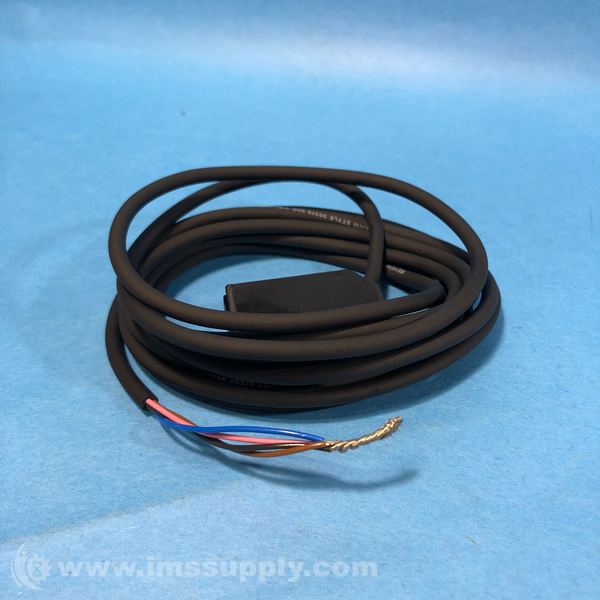

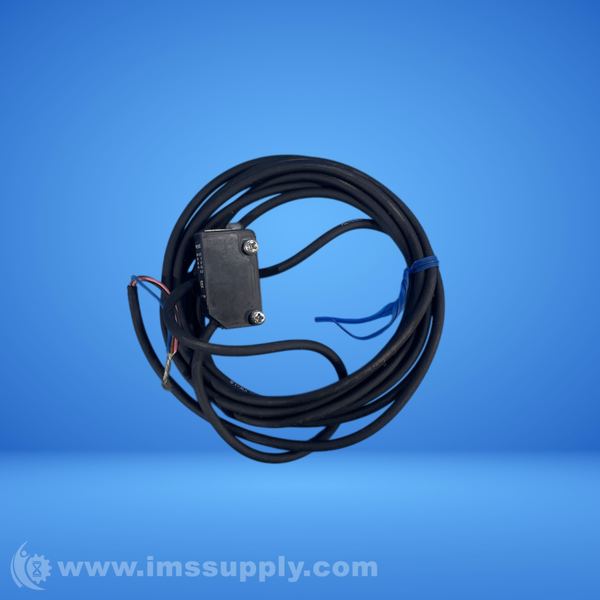

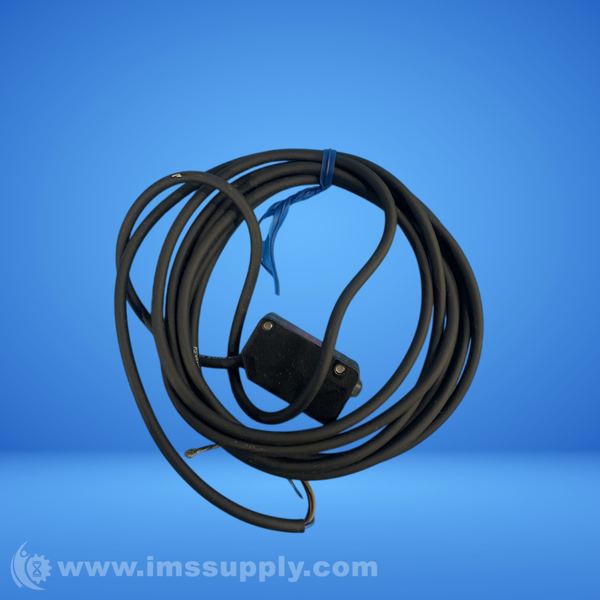

KEYENCE PZ-M11P SQUARE REFLECTIVE PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-M11P
IMS Product Code: 2014640
Packaging: Sold Individually
Description:

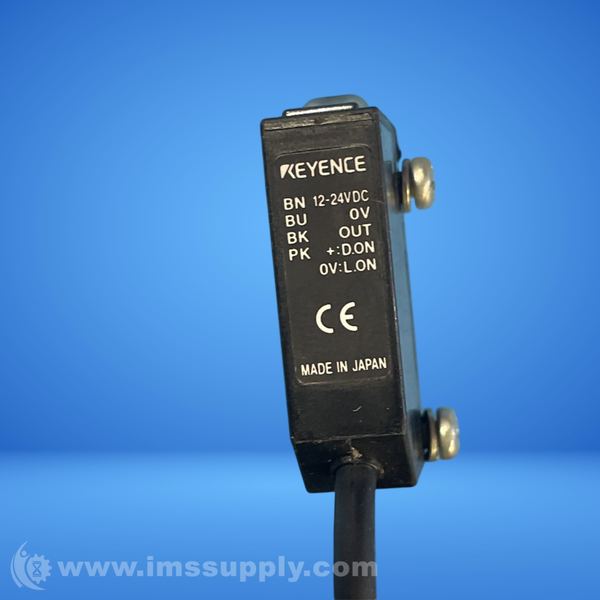

Keyence PZ-M11P Square Reflective Photoelectric Sensor
Square reflective photoelectric sensor with PNP output and 5-100 mm detection distance.
Specifications
- Type: Intelligent reflective
- Output: PNP
- Detecting Distance: 5 to 100 mm
- Setting Distance: 30 to 100 mm
- Light Source: Red LED
- Sensitivity Adjustment: 1-turn trimmer (230�)
- Response Time: 1 ms max.
- Operation Mode: LIGHT-ON/DARK-ON (switch-selectable)
- Control Output: 100 mA (24 V) max., Residual voltage: 1 V max.
- Protection Circuit: Reversed polarity, overcurrent protection, surge absorber
- Power Voltage: 12 to 24 VDC �10 %, Ripple (P-P) 10 % or less
- Enclosure Rating: IP67
- Ambient Temperature: -20 to +55 �C
- Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Case Material: Glass-fiber reinforced plastic

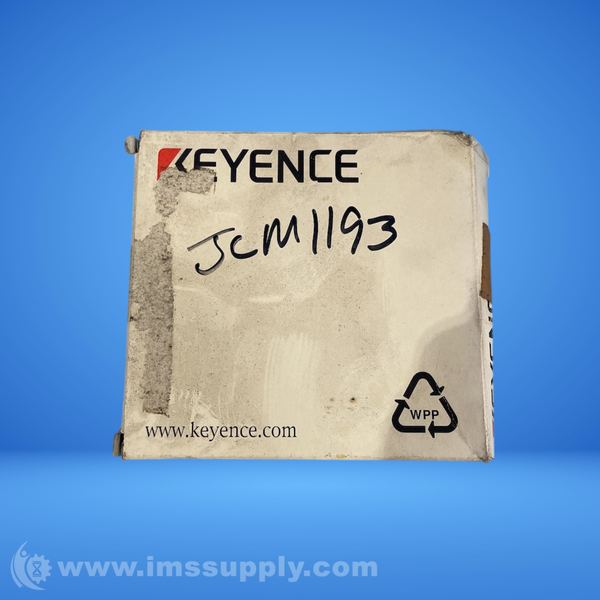

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
