KEYENCE PZ-M31 SQUARE REFLECTIVE PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-M31
IMS Product Code: 1789493

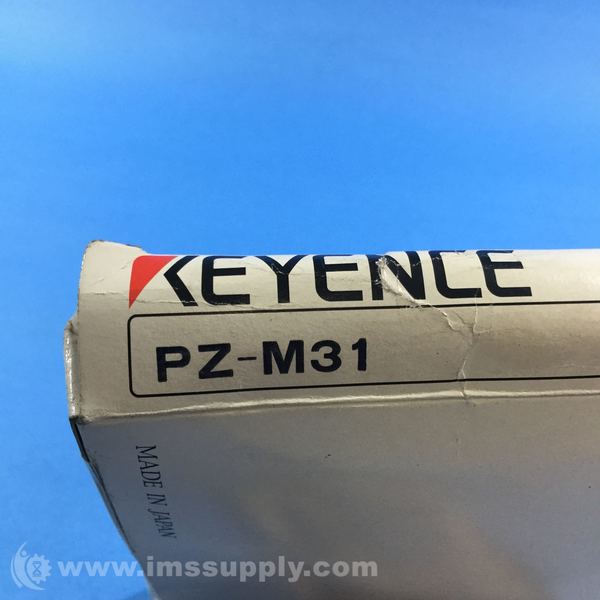

Packaging: Sold Individually
Description:

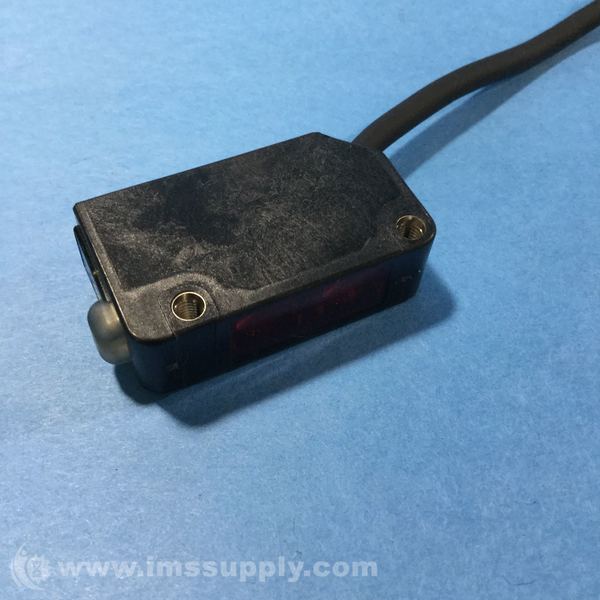

Keyence PZ-M31 Square Reflective Photoelectric Sensor
NPN output, intelligent reflective type, 5-300 mm detection distance, red LED light source, IP67 rated
Specifications
- Output: NPN
- Type: Intelligent reflective
- Detecting distance: 5 to 300 mm
- Setting distance: 40 to 300 mm
- Light source: Red LED
- Sensitivity adjustment: 1-turn trimmer (230°)
- Response time: 1 ms max.
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Output: orange LED, stable operation: green LED
- Control output: 100 mA (24 V) max., Residual voltage: 1 V max.
- Protection circuit: Reversed polarity, overcurrent protection, surge absorber
- Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Power consumption: 30 mA max.
- Enclosure rating: IP67
- Ambient light: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
- Ambient temperature: -20 to +55 °C
- Relative humidity: 35 to 85 % RH
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Case material: Glass-fiber reinforced plastic
- Weight: Approx. 55 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 32 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 32 minutes.
