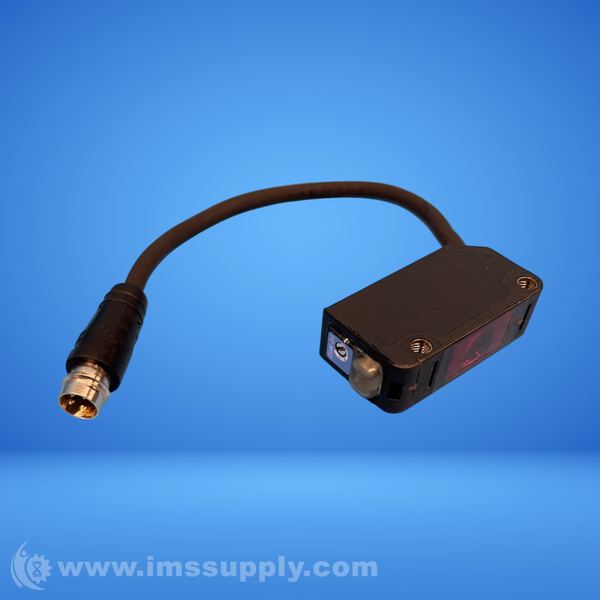

KEYENCE PZ-M52 THRUBEAM PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-M52
IMS Product Code: 2142816
Packaging: Sold Individually
Description:

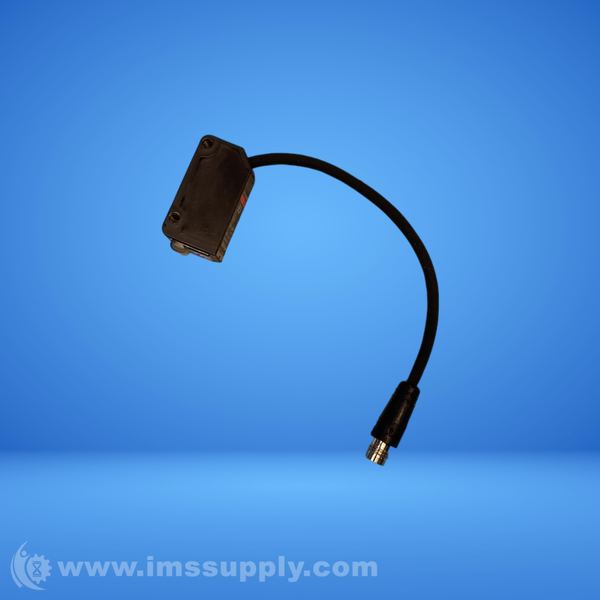

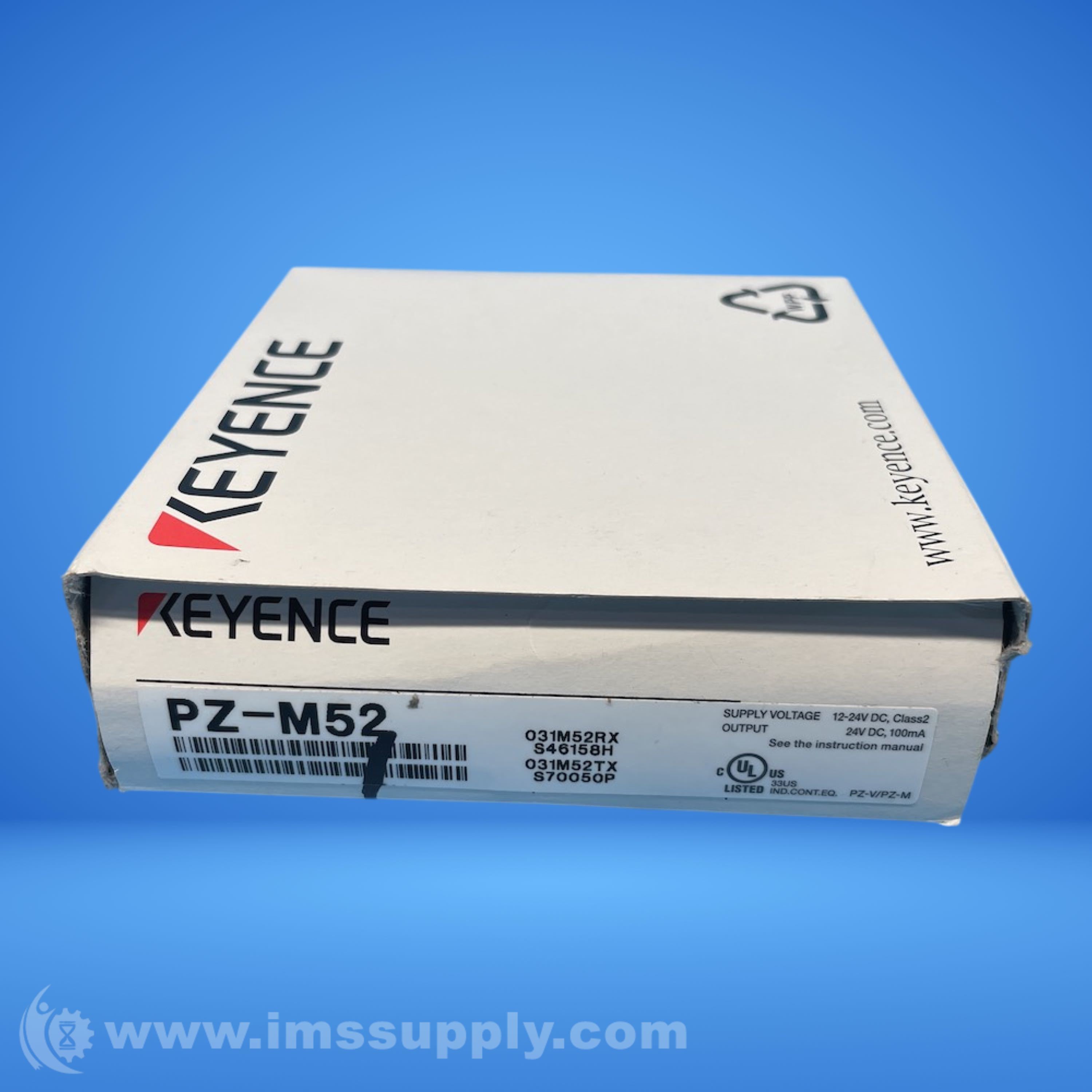

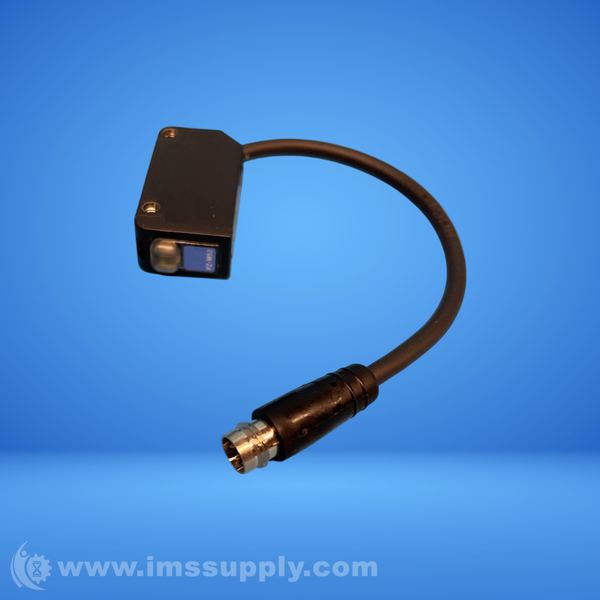

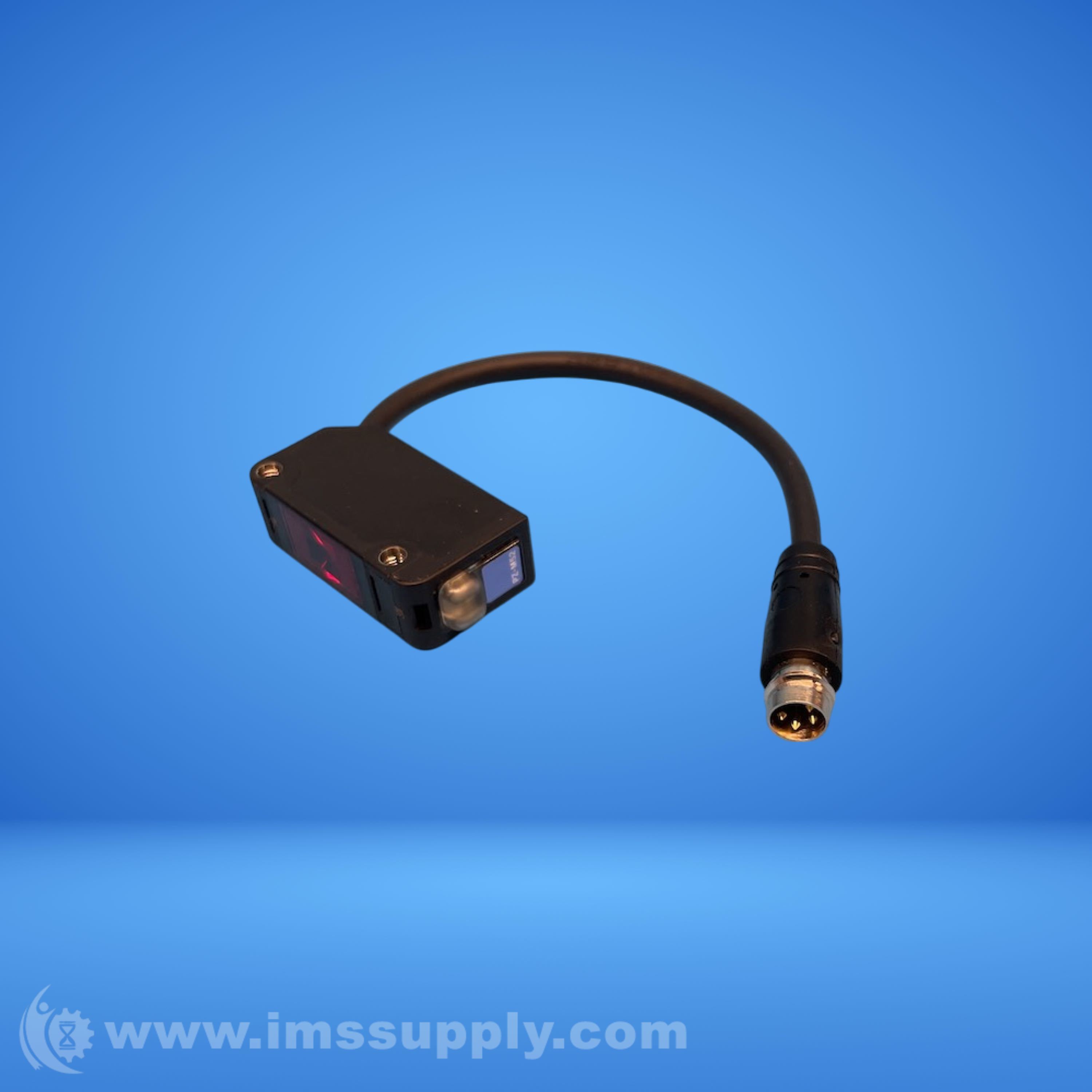

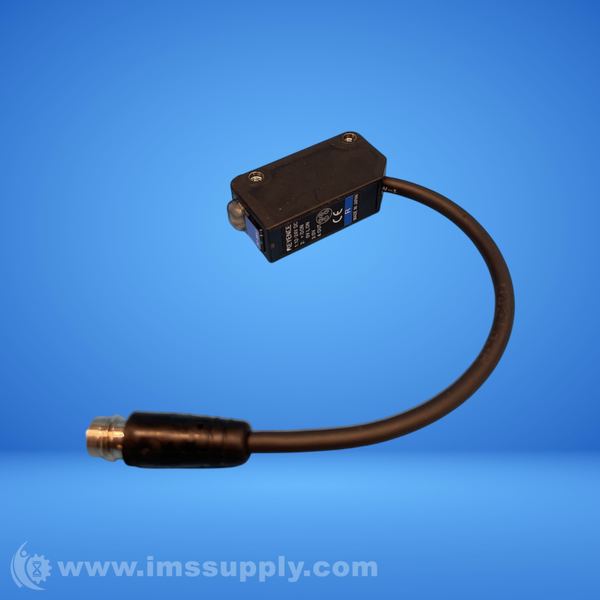

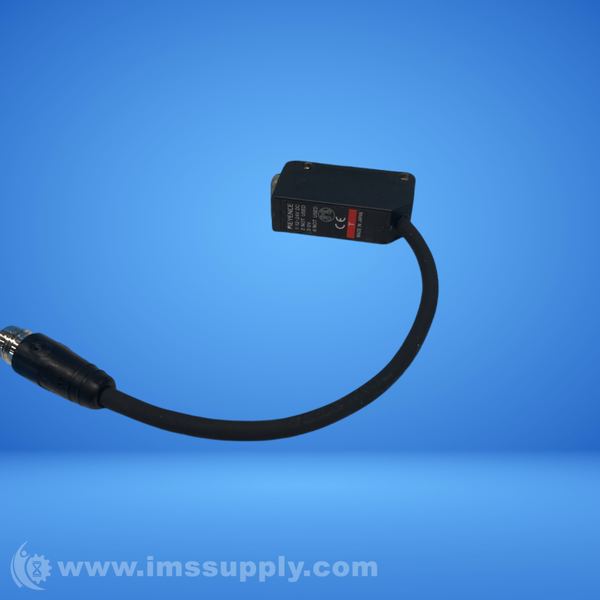

Keyence PZ-M52 Thrubeam Photoelectric Sensor
NPN output, 10m detecting distance, M8 connector type
Specifications
- Output: NPN
- Detecting Distance: 10m
- Light Source: Red LED
- Sensitivity Adjustment: 1-turn trimmer (230 degrees)
- Response Time: 1.5 ms max.
- Operation Mode: LIGHT-ON/DARK-ON (switch-selectable)
- Control Output: 100 mA (40 V) max.
- Power Voltage: 12 to 24 VDC ±10 %
- Power Consumption: T: 24 mA max., R: 27 mA max.
- Enclosure Rating: IP67
- Ambient Temperature: -20 to +55 degrees C
- Relative Humidity: 35 to 85 % RH
- Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm
- Shock Resistance: 1,000 m/s2
- Case Material: Glass-fiber reinforced plastic
- Weight: Approx. 30 g
New - Open Box (Special):

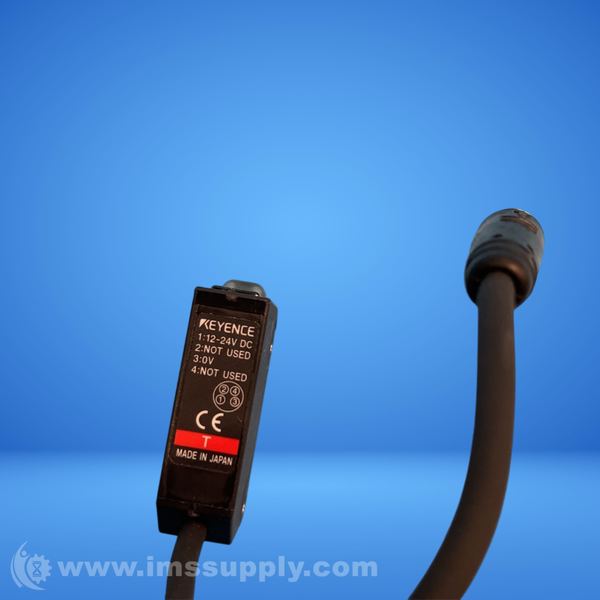

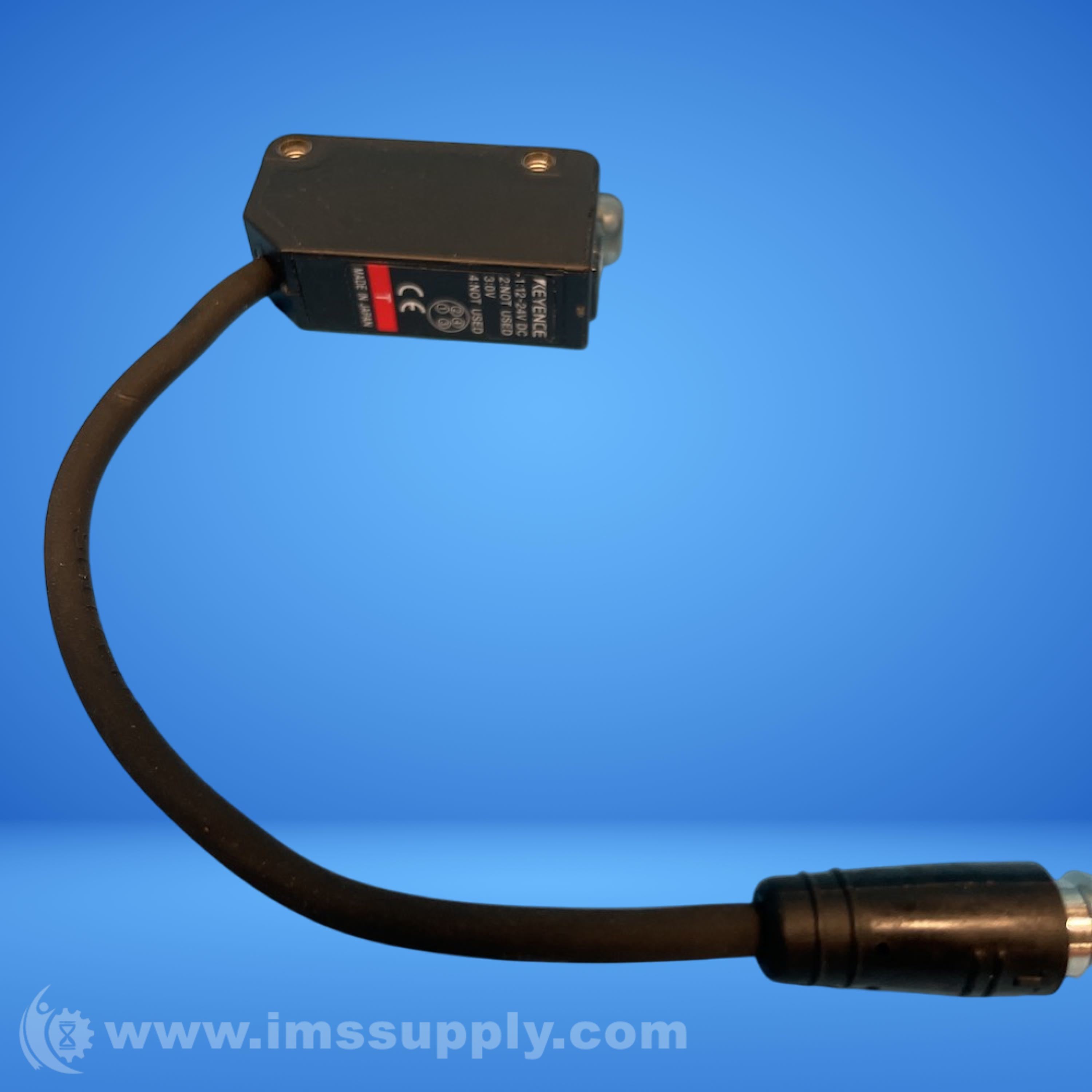

Transmitter only.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
Receiver only.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
Transmitter only.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
