KEYENCE PZ-M52P PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-M52P
IMS Product Code: 2142818
Packaging: Sold Individually
Description:
Keyence PZ-M52P Photoelectric Sensor

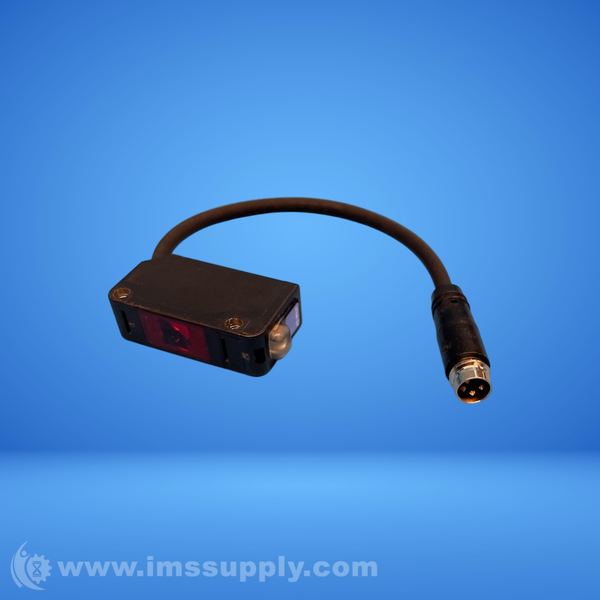

Square Transmissive M8 Connector Type, PNP photoelectric sensor
Specifications
- Output: PNP
- Detecting Distance: 10m
- Light Source: Red LED
- Sensitivity Adjustment: 1-turn trimmer (230 degrees)
- Response Time: 1.5 ms max.
- Operation Mode: LIGHT-ON/DARK-ON (switch-selectable)
- Control Output: Maximum PNP open-collector output: 100 mA (26.4 V or less), residual voltage: 1 V or less
- Protection Circuit: Reversed polarity, overcurrent protection, surge absorber
- Power Voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Power Consumption: T: 24 mA max., R: 27 mA max.
- Enclosure Rating: IP67
- Ambient Light: Incandescent lamp: 5000 lux max., Sunlight: 20000 lux max.
- Ambient Temperature: -20 to +55 degrees Celsius
- Relative Humidity: 35 to 85 % RH
- Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock Resistance: 1000 m/s2, 6 times in each of the X, Y, and Z directions
- Case Material: Glass-fiber reinforced plastic
- Weight: Transmitter and receiver: Approx. 30 g
New - Open Box (Special):

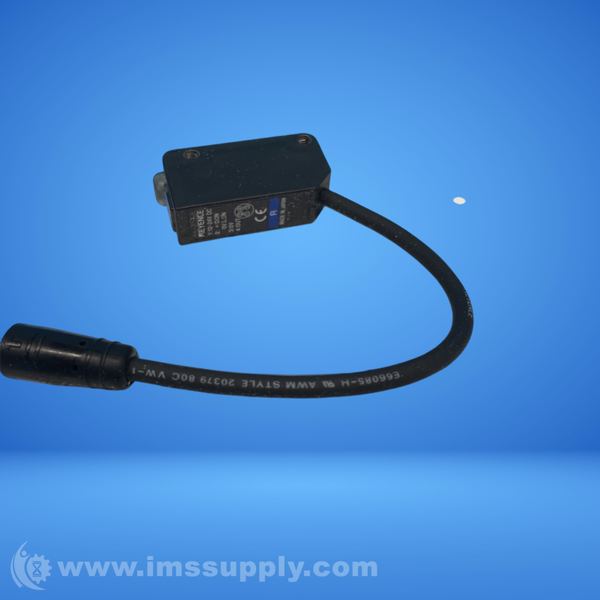

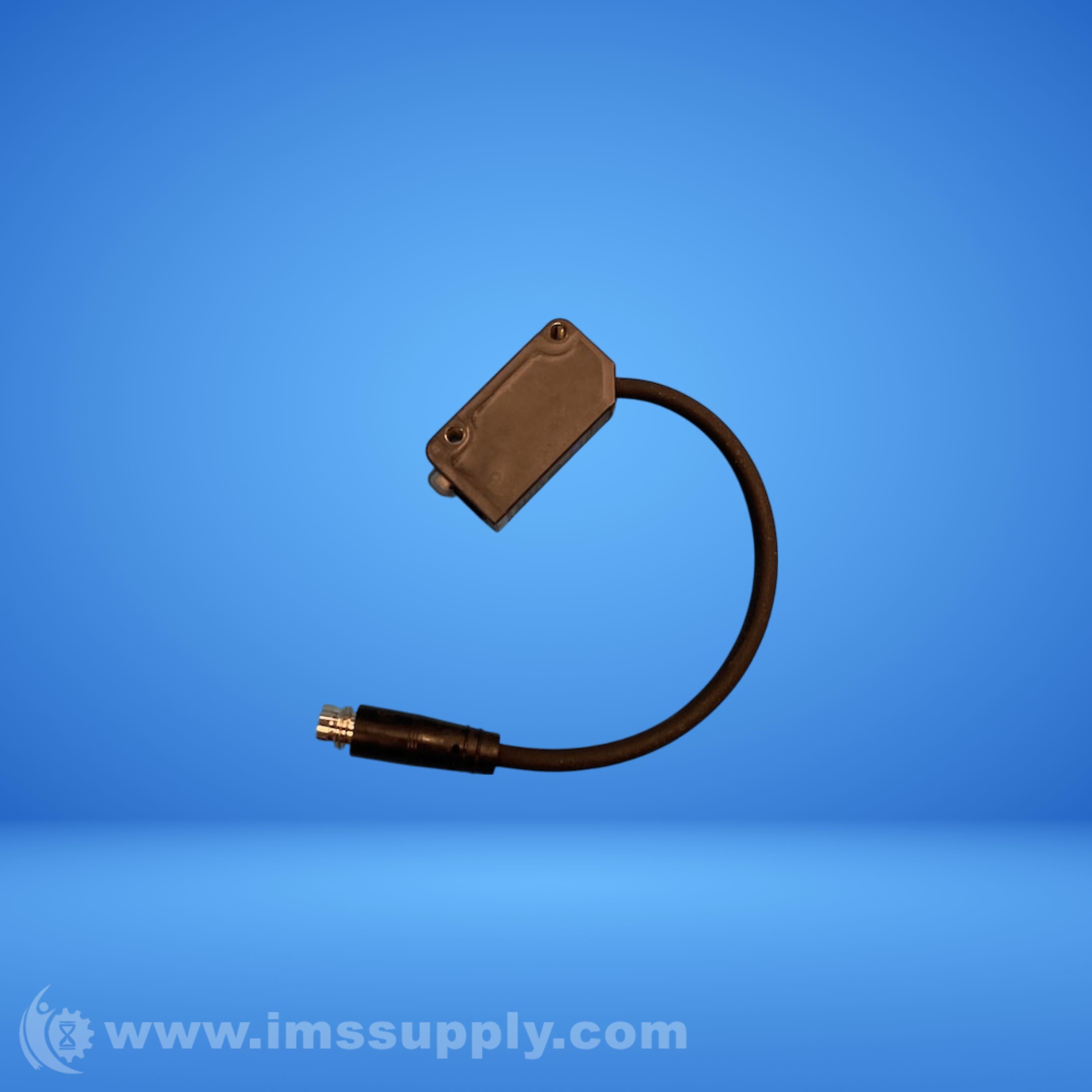

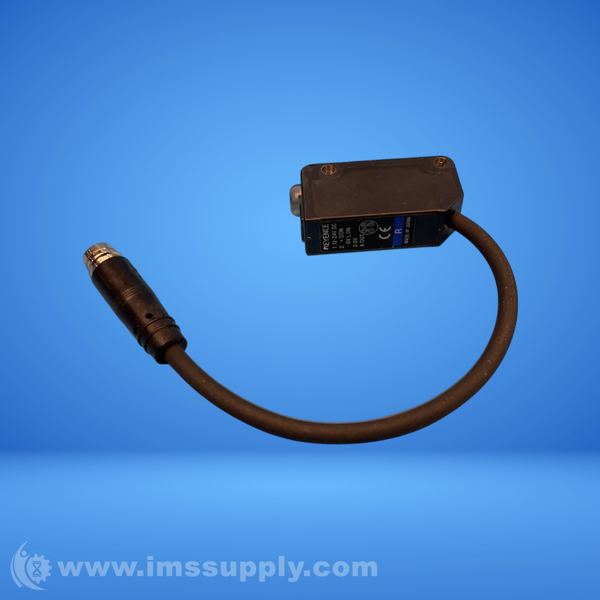

receiver only.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.

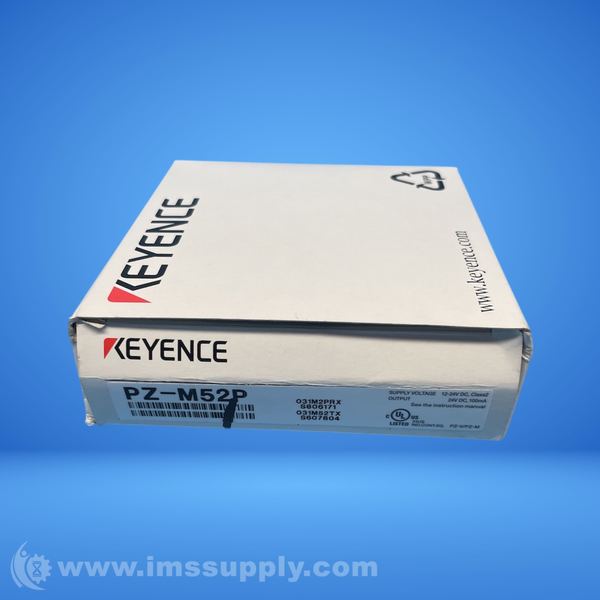

New - Missing Box (Special):
Receiver only.
Availability: 1 In Stock
