KEYENCE PZ-M53P PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-M53P
IMS Product Code: 1963782
Packaging: Sold Individually
Description:

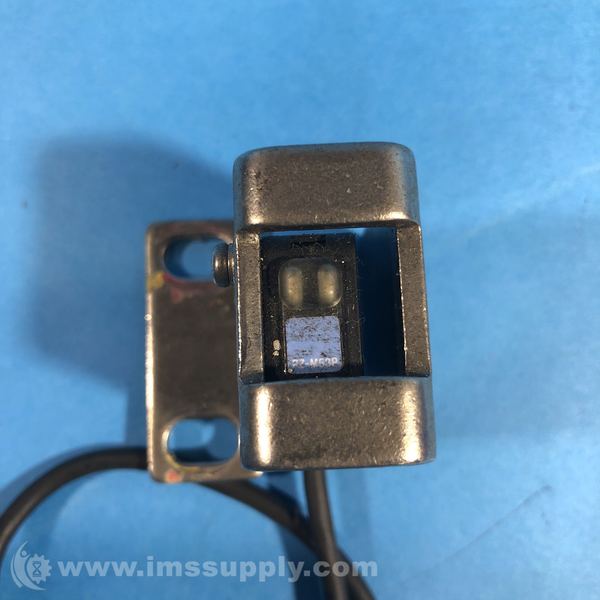

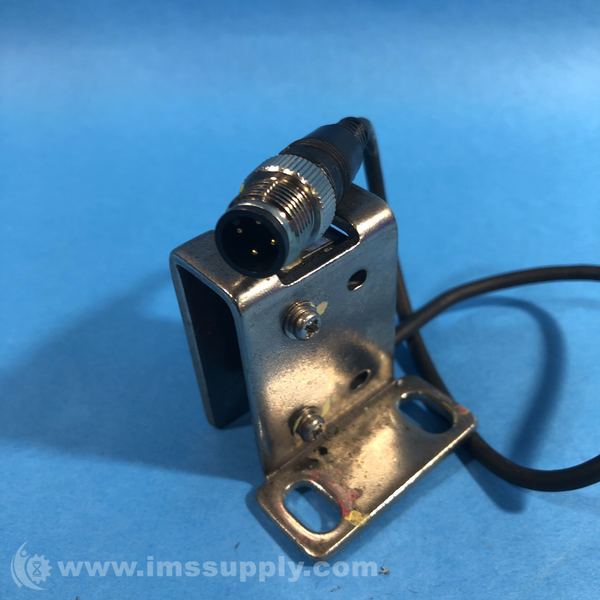

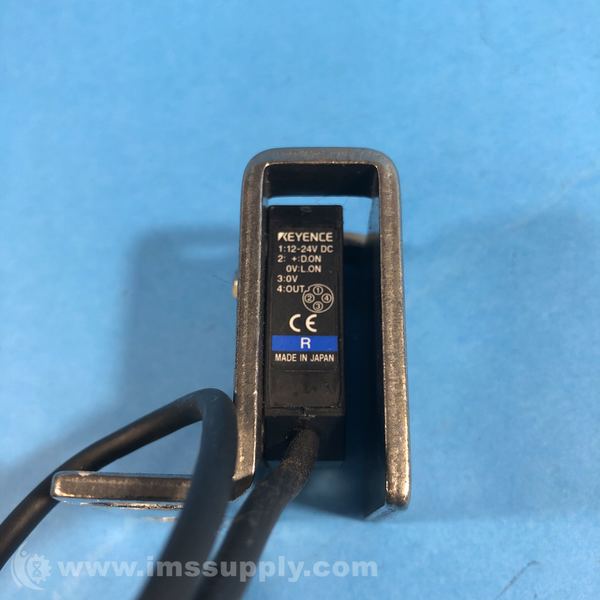

Keyence PZ-M53P Photoelectric Sensor
Amplifier-Integrated Photoelectric Sensor with M12 Connector Cable, PNP Output, 10m Detecting Distance
Specifications
- Sensor Type: Amplifier-Integrated Photoelectric Sensor
- Output Type: PNP
- Detecting Distance: 10m
- Light Source: Red LED
- Response Time: 1.5 ms max.
- Operation Mode: LIGHT-ON/DARK-ON (switch-selectable)
- Control Output: Maximum PNP open-collector output: 100 mA (26.4 V or less), residual voltage: 1 V or less
- Power Voltage: 12 to 24 VDC ±10%, Ripple (P-P): 10% max., Class 2
- Power Consumption: T: 24 mA max., R: 27 mA max.
- Enclosure Rating: IP67
- Operating Ambient Luminance: Incandescent lamp: 5000 lux max., Sunlight: 20000 lux max.
- Operating Temperature Range: -20 to +55°C (-4 to 131°F), No freezing
- Operating Ambient Humidity: 35 to 85% RH (No condensation)
- Vibration Resistance: 10 to 55 Hz, double amplitude 1.5 mm (0.06"), 2 hours for each of X,Y,Z axis
- Shock Resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Case Material: Glass-fiber reinforced plastic
- Weight: T: Approx 50 g, R: Approx 50 g
New - Missing Box (Special):
Receiver only.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
