KEYENCE PZ-V12P PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-V12P
IMS Product Code: 1786704
Packaging: Sold Individually
Description:

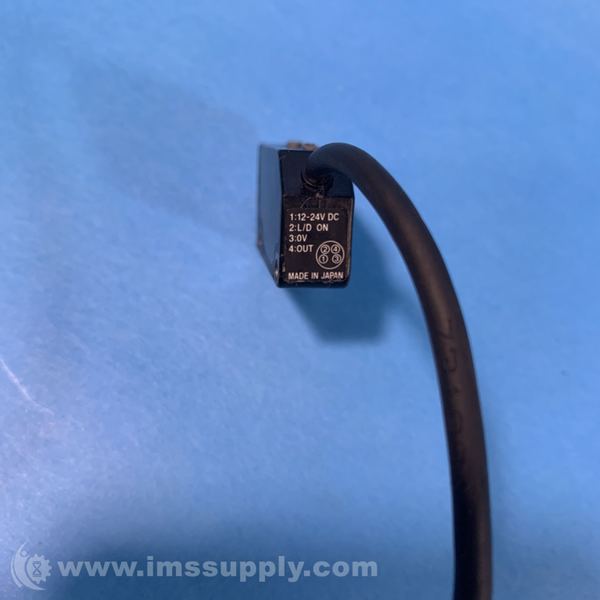

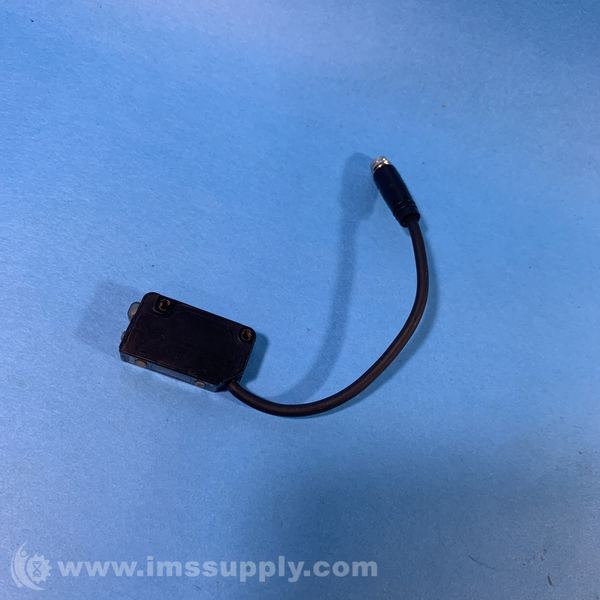

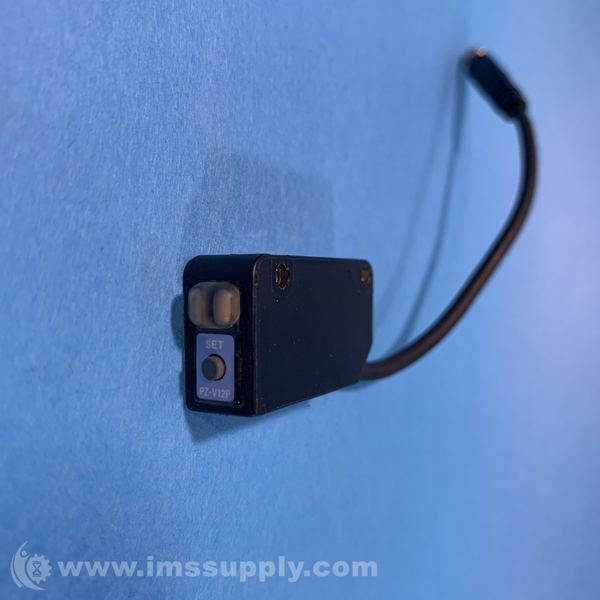

Keyence PZ-V12P Photoelectric Sensor

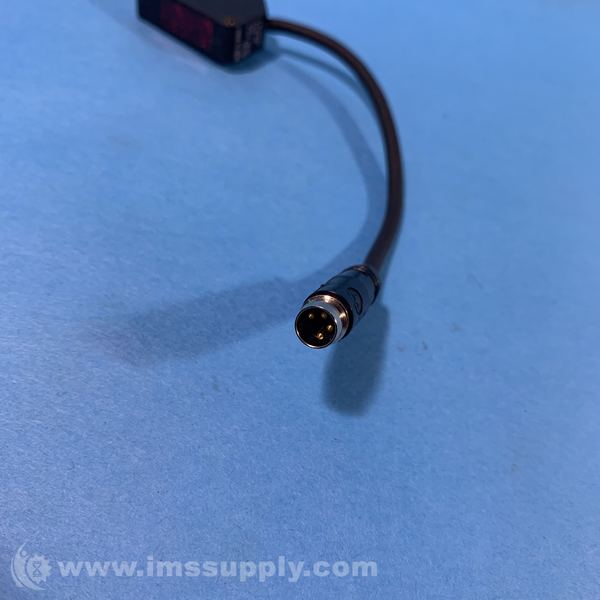

PNP output, multi-reflective model with M8 connector, red LED light source, IP67 rated
Specifications
- Type: Multi reflective model (M8 connector cable type)
- Response time: 1 ms max.
- Output: PNP
- Sensitivity adjustment: Automatic push button
- Detecting distance: 5 to 100 mm (100 x 100 mm white mat paper)
- Setting distance: 30 to 100 mm (100 x 100 mm white mat paper)
- Light source: Red LED
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Output: orange LED, stable operation: green LED
- Control output: Maximum PNP open-collector output: 100 mA (26.4 V or less), residual voltage: 1 V or less
- Digital monitor: 7-segment, 3-digit red LED
- Protection circuit: Reversed polarity, overcurrent protection, surge absorber
- Power voltage: 12 to 24 VDC ±10%, Ripple (P-P): 10% max., Class 2
- Power consumption: 37 mA max.
- Enclosure rating: IP67
- Operating ambient luminance: Incandescent lamp 5000 lux max., Sunlight: 20000 lux max.
- Operating temperature range: -20 to +55°C, No freezing
- Operating ambient humidity: 35 to 85% RH (No condensation)
- Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours for each of X,Y,Z axis
- Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Case material: Glass-fiber reinforced plastic
- Weight: Approx 15 g
