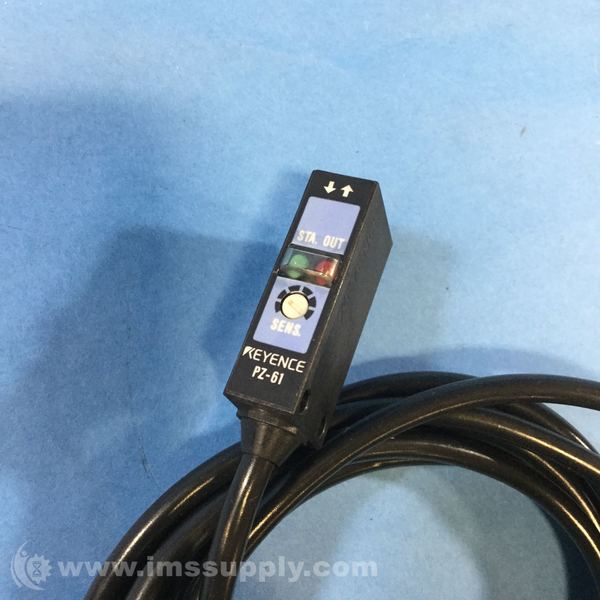

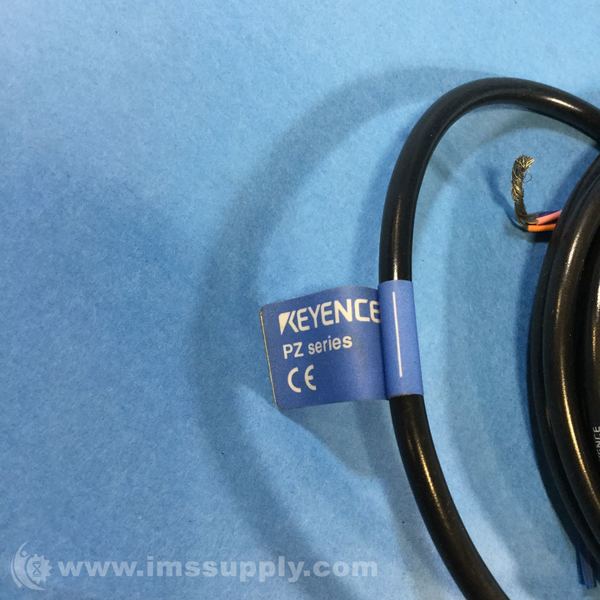

KEYENCE PZ-61 RETRO-REFLECTIVE PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ61
IMS Product Code: 1774607
Packaging: Sold Individually
Description:
Keyence PZ-61 Retro-Reflective Photoelectric Sensor
Square retro-reflective photoelectric sensor with NPN output and cable connection.
Specifications
- detecting distance: 0.1 to 2.5 m
- light source: Infrared LED
- detectable object: Opaque material with 30 mm² area or more
- sensitivity adjustment: 1-turn trimmer (240°)
- response time: 1 ms max. (2 ms in alternate frequency mode)
- operation mode: LIGHT-ON/DARK-ON switch-selectable
- indicator lamp: Output - red LED, stable operation - green LED
- control output: Maximum NPN open-collector output - 100 mA or less (40 V or less)
- stability output: Maximum NPN open-collector output - 50 mA or less (40 V or less)
- power voltage: 12 to 24 VDC ± 10%, Ripple (P-P) 10% or less
- current consumption: 30 mA or less
- enclosure rating: IP67
- ambient light: Incandescent lamp - 5,000 lux or less, Sunlight - 20,000 lux or less
- ambient temperature: -20 to +55°C
- relative humidity: 35 to 85% RH
- vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of X, Y, Z directions
- case material: Fiberglass reinforced plastic
- weight: Approx. 75 g (including 2-m cable)
- country of origin: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 52 minutes.
