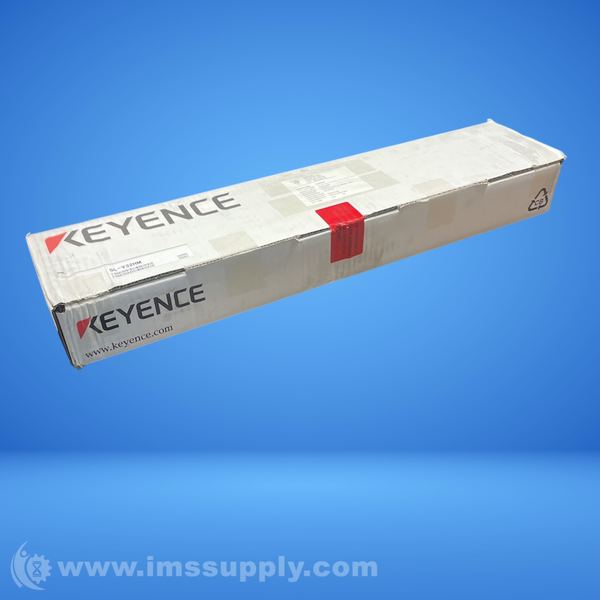

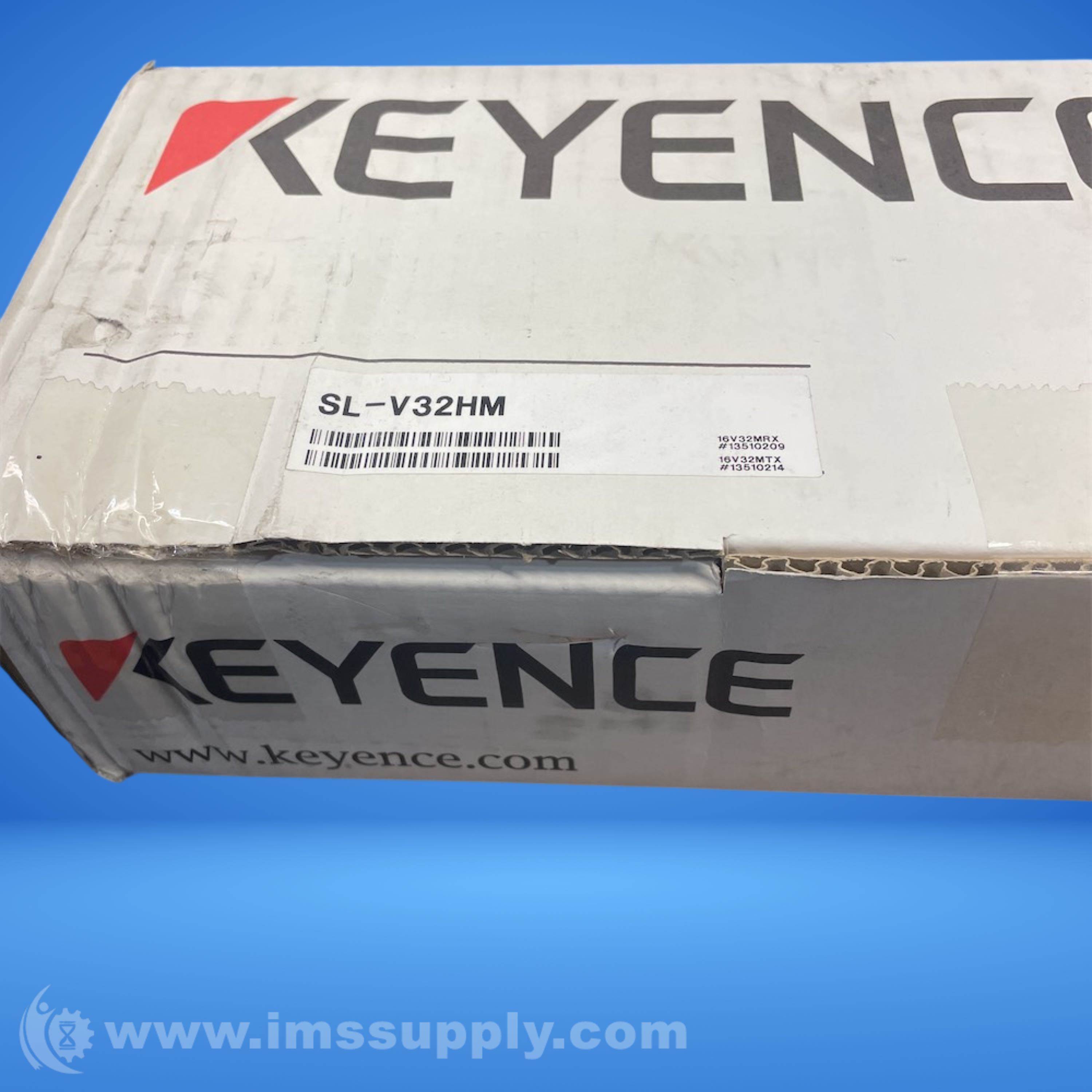

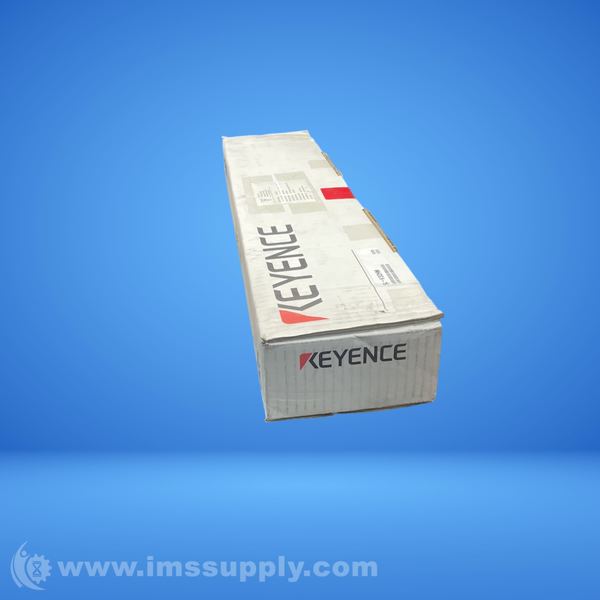

KEYENCE SL-V32HM SAFETY LIGHT CURTAIN
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: SL-V32HM
IMS Product Code: 2154706
Packaging: Sold Individually
Description:
Keyence SL-V32HM Safety Light Curtain
Safety Light Curtain
Specifications
- Product Name: Main Unit, Robust Type, 32 Optical Axes
- Model: SL-V32HM
- Detection Capability: ø0.98" ø25 mm
- Beam Axis Spacing/Lens Diameter: 20 mm/ø5 mm 0.79"/ø0.20"
- Effective Aperture Angle: Max. ±2.5 degrees (When operating distance is 3 m 98.23' or more)
- Working Distance: 0.1 to 9 m
- Response Time (ms): ON?OFF: 10.3*1, OFF?ON: 50.3*1
- Light Source: Infrared LED (850 nm)
- Operation Mode: Turns on when no interruptions are present in the detection zone (excluding when the muting function is used)
- OSSD Output: 2 outputs each for PNP and NPN. Can be changed by using the connector cable.
- Max. Load Current: 500 mA*2
- Residual Voltage (during ON): Max. 2.5 V (with a cable length of 7 m 22.97')
- Leakage Current: Max. 100 µA*3
- Max. Capacitive Load: 2.2 µF (with a load resistance of 100 ?)
- Load Wiring Resistance: Max. 2.5 ?*4
- Non Safety-related Output: AUX: Output with automatic PNP/NPN switching function, 50 mA max.
- Input: EDM input: Short-circuit current 10 mA, Wait input: Short-circuit current 2.5 mA, Reset input, Muting input 1, 2, Override input
- Protection Circuit: Reverse current protection, short-circuit protection for each output, surge protection for each output
- Approved Standards: EMC: EMS: IEC61496-1, EN61496-1, UL61496-1, EMI: EN55011 Class A, FCC Part15B Class A, Safety: IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE), IEC61496-2, UL61496-2, EN61496-2 (Type 4 AOPD), IEC61508 (SIL3), EN61508 (SIL3), IEC62061 (SIL3), EN ISO13849-1: 2015 (Category 4, PLe), UL508, UL1998
- Rating: Power voltage: 24 VDC +10 %, -20 %, Ripple (P-P) 10 % or less
- Current Consumption (mA): When the center indicator is ON: Transmitter: 93*6, Receiver: 80*6, When the center indicator is OFF: Transmitter: 86*6, Receiver: 70*6
- Environmental Resistance: Enclosure rating: IP65/67 (IEC60529), Overvoltage category: II
- Ambient Light: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
- Operating Ambient Temperature: -10 to +55 degrees C 14 to 131 degrees F (No freezing)
- Operating Relative Humidity: 15 to 85 % RH (No condensation)
- Storage Temperature: -25 to +60 degrees C -13 to 140 degrees F (No freezing)
- Storage Relative Humidity: 15 to 95 % RH
- Vibration Resistance: 10 to 55 Hz, Double amplitude 0.7 mm 0.03", 20 sweeps in each of the X, Y, and Z directions
- Shock Resistance: 100 m/s2 (Approx. 10 G), 16 ms pulse, 1,000 times in each of the X, Y, and Z directions
- Material: Main unit case: Aluminum, Upper case/lower case: Zinc die-cast, Front cover: Polycarbonate, SUS304
- Weight: Transmitter: 1,400 g, Receiver: 1,410 g
- Brand: Keyence
- MPN: SL-V32HM
- Country of Origin: Japan
- Shield: Shielded
- Output Type: Digital
- Current Type: DC
- Termination Type: Cable with Connector
- Sensor Type: Solid State
- Compatible Mounting Type: Surface Mount
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
