KEYENCE SZ-04M SAFETY LASER SCANNER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: SZ-04M
IMS Product Code: 2045765
Packaging: Sold Individually
Description:

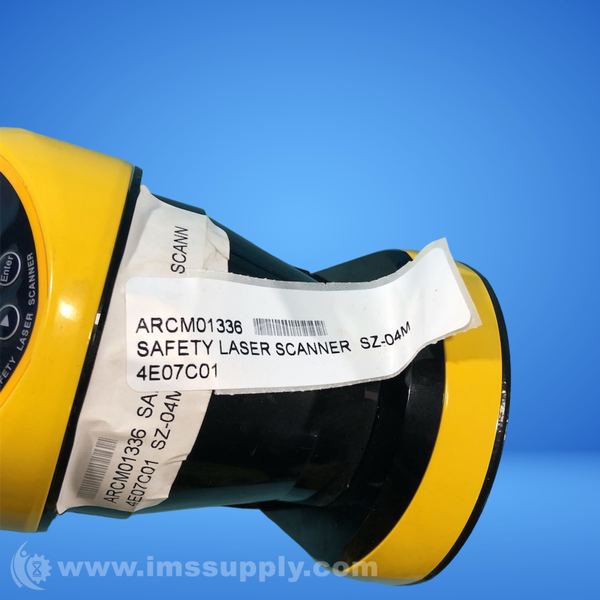

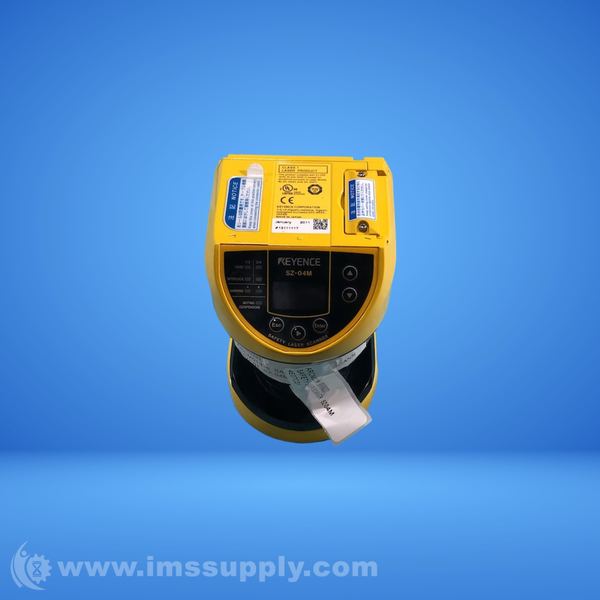

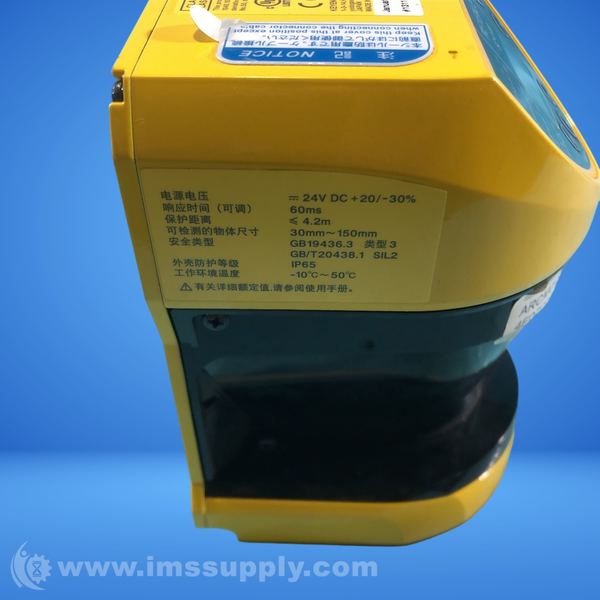

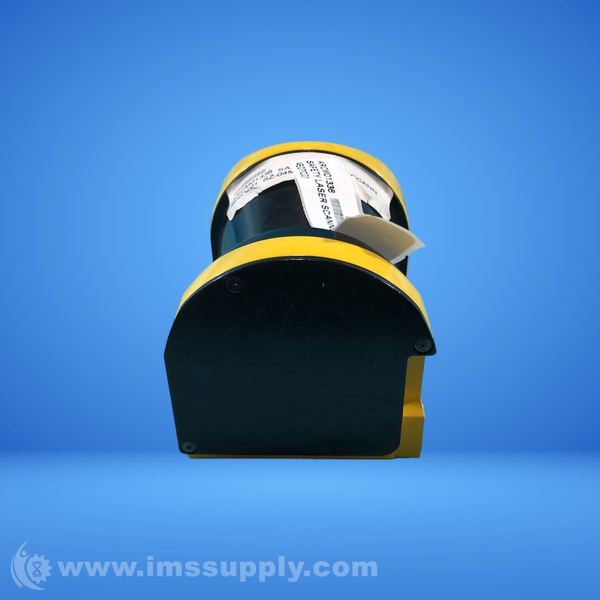

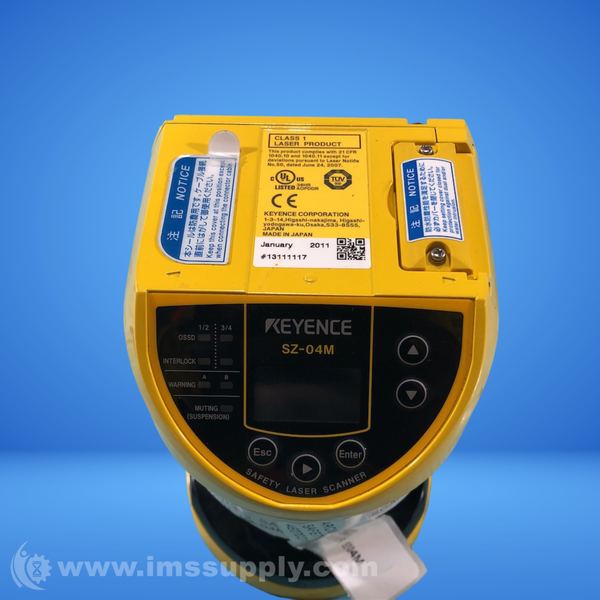

Keyence SZ-04M Safety Laser Scanner
Multi-function type safety laser scanner using infrared laser diode with 905 nm wavelength. Detection capability ranges from 30 mm to 150 mm diameter objects. Response time adjustable from 60 ms minimum. Protective distance up to 4.2 m. IP65 enclosure rating. Operates at 24 V DC with maximum 9.5 W power consumption without load.
Specifications
- Supply Voltage: 24V DC +20/-30%
- Rated Power: max. 9.5W (without load)
- Response Time: min. 60ms (adjustable)
- Protection Distance: max. 4.2m
- Detectable Object Size: 30mm through 150mm
- OSSD Current: max. 500mA PNP/NPN
- Aux Output Current: max. 50mA PNP/NPN
- Safety Category: IEC61496-3 TYPE3
- Enclosure Rating: IP65
- Ambient Temperature: -10 deg C to 50 deg C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 17 minutes.
