KEYENCE UD-500 AMPLIFIER UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: UD-500
IMS Product Code: 1775736
Packaging: Sold Individually
Description:

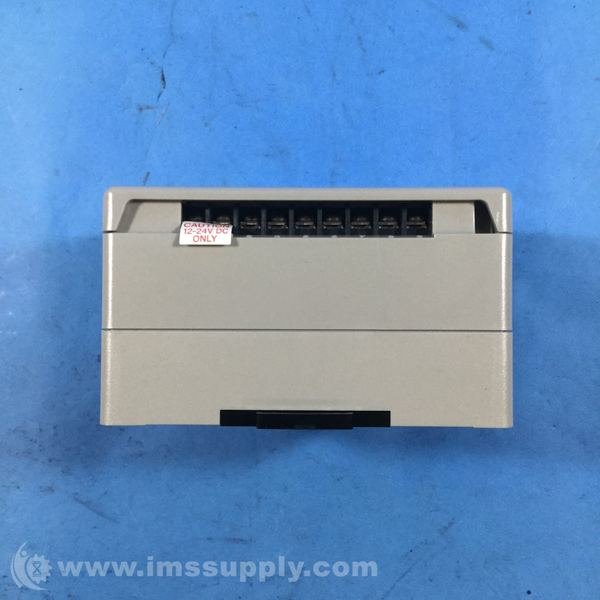

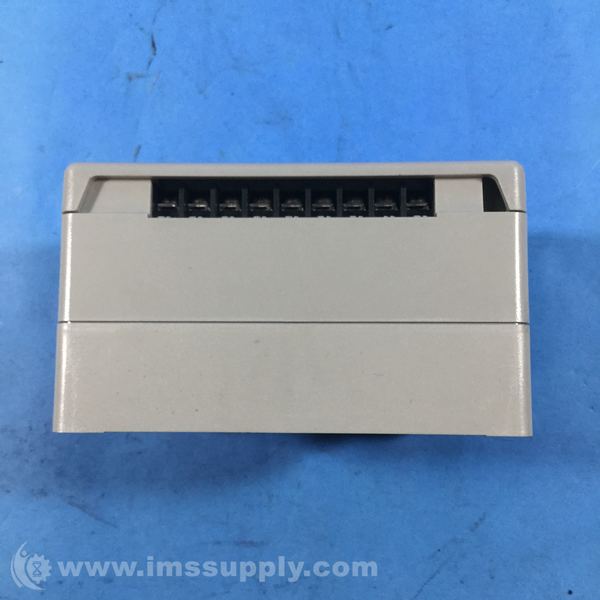

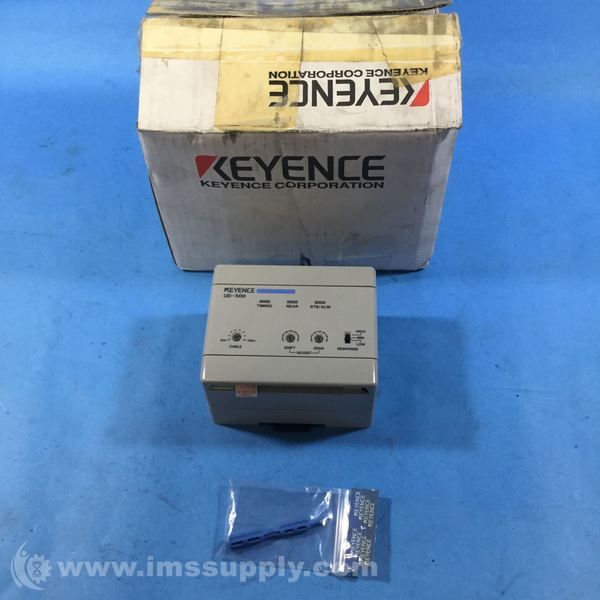

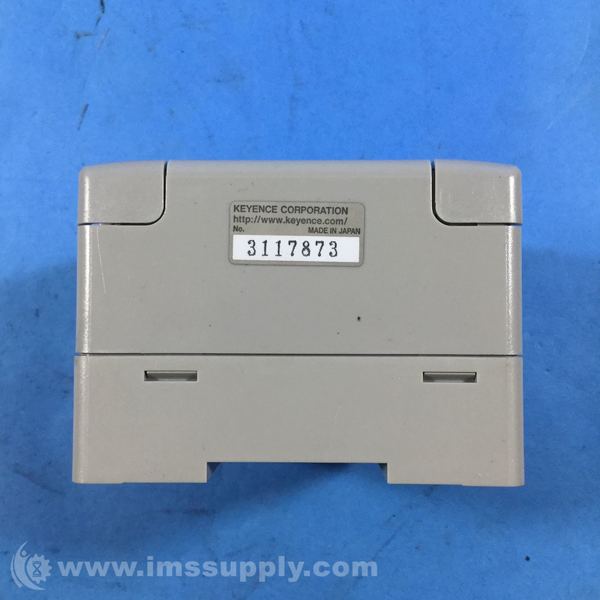

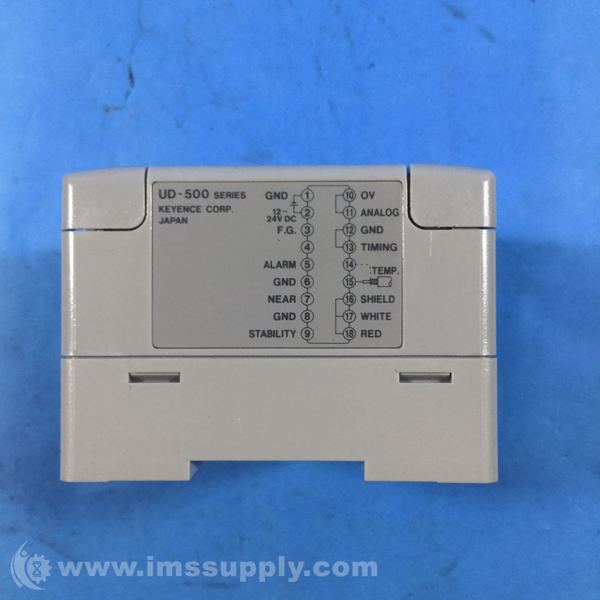

Keyence UD-500 Amplifier Unit
High-precision Ultrasonic Displacement Sensor Amplifier Unit
Specifications
- Brand: Keyence
- MPN: UD-500
- Model: UD-500
- Type: Controller
- Measurement range: 80 to 300 mm
- Linearity range: 100 to 200 mm
- Resolution: 0.1 mm (when the response speed is set to MID)
- Linearity: ±0.1% of F.S.
- Response speed (switch): 18 ms (HIGH), 468 ms (MID), 3,168 ms (LOW)
- Minimum detectable object: Object with an area of 10 mm2
- Analogue output: Output voltage: -0.5 to +5 V (25 mV/mm), Impedance: 100 ?
- Control output: NPN open-collector 100 mA max. (40 V max.), Residual voltage 1 V max.
- Timing input: NPN open-collector or non-voltage contact signal
- Temperature characteristics: 0.03% of F.S./degrees C
- Connection cord length: 3 m, 10 m selectable
- Rating: Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Environmental resistance: Ambient temperature: 0 to +50 degrees C, Relative humidity: 35 to 85 % RH (No condensation)
- Weight: Approx. 400 g
- Dimensions: 4.5 in x 3.5 in x 2.7 in (11.4 cm x 8.9 cm x 6.9 cm)
- Country of Origin: Japan
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
