KEYENCE VP-90 OPTICAL SCALE SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: VP-90
IMS Product Code: 2157141
Packaging: Sold Individually
Description:

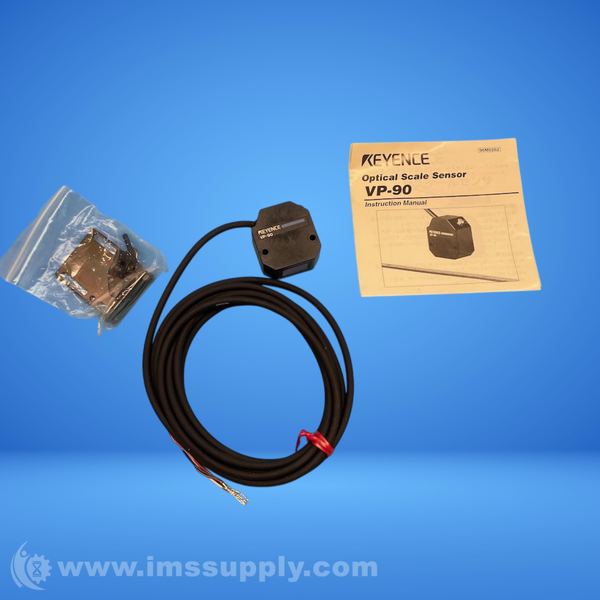

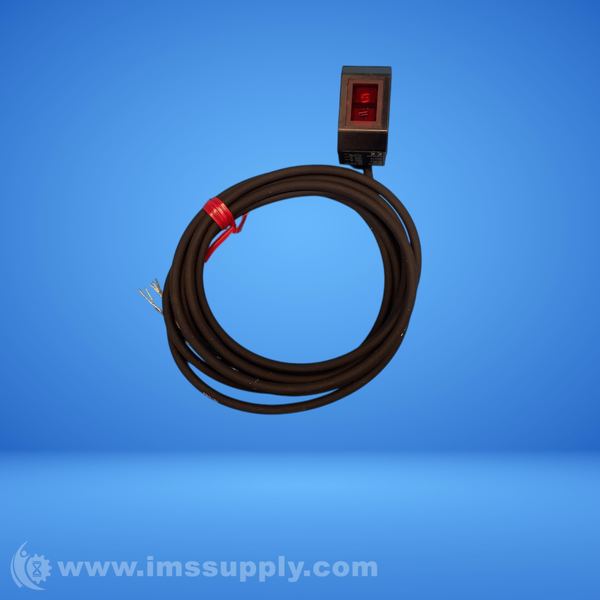

Keyence VP-90 Optical Scale Sensor
Optical scale sensor with pulse output and alarm functionality
Specifications
- Operating Distance: 8.0 mm ±10%
- Resolution: 0.1 mm (per pulse)
- Light Source: Red LED
- Maximum Response Speed: 1,200 mm/s
- Indicator Light: Stability: 2 colors LED: stable: green; unstable: red
- Output: Pulse output (A phase, B phase) Phase difference 90 degrees NPN open collector Maximum 50 mA (30 V or less) Residual voltage 1 V or less
- Alarm Output: NPN open collector Maximum 50 mA (30 V or less) Residual voltage 1 V or less
- Protection Circuit: Reverse power connection protection, surge protection
- Rating: Power supply voltage DC 12 - 24 V ±10 %, ripple (PP) 10 % or less
- Power Consumption: 40mA or less
- Environmental Resistance: Ambient illuminance used Incandescent lamp: 10,000 lux or less, Fluorescent lamp: 5,000 lux or less
- Ambient Temperature: -10 to +50 degrees Celsius (no freezing)
- Ambient Humidity: 35 to 85% RH (non-condensing)
- Vibration Resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in X, Y, Z directions
- Shock Resistant: 300 m/s^2, 3 times in each direction of X, Y, Z
- Material: Glass Reinforced Resin
- Mass: Approx. 70 g (with 2 m cord)

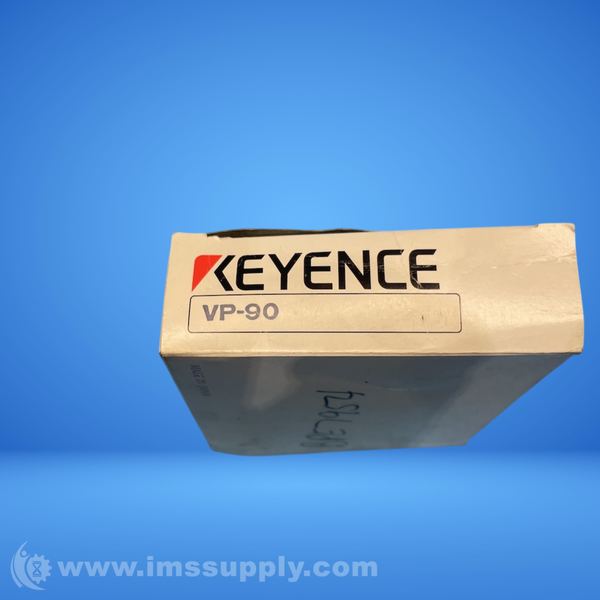

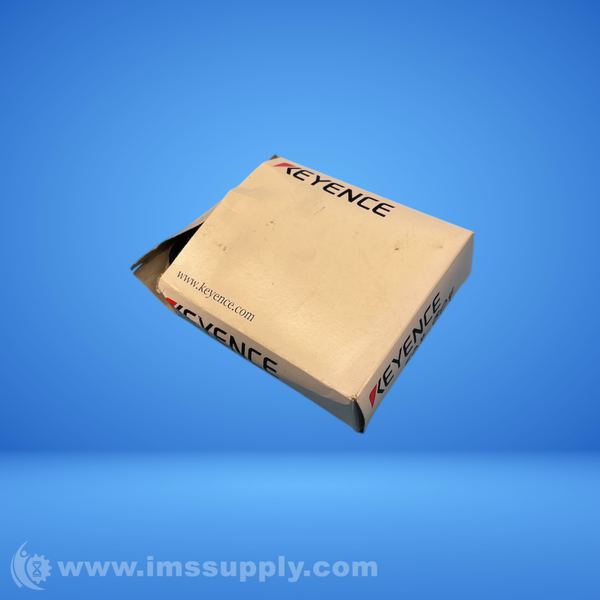

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
